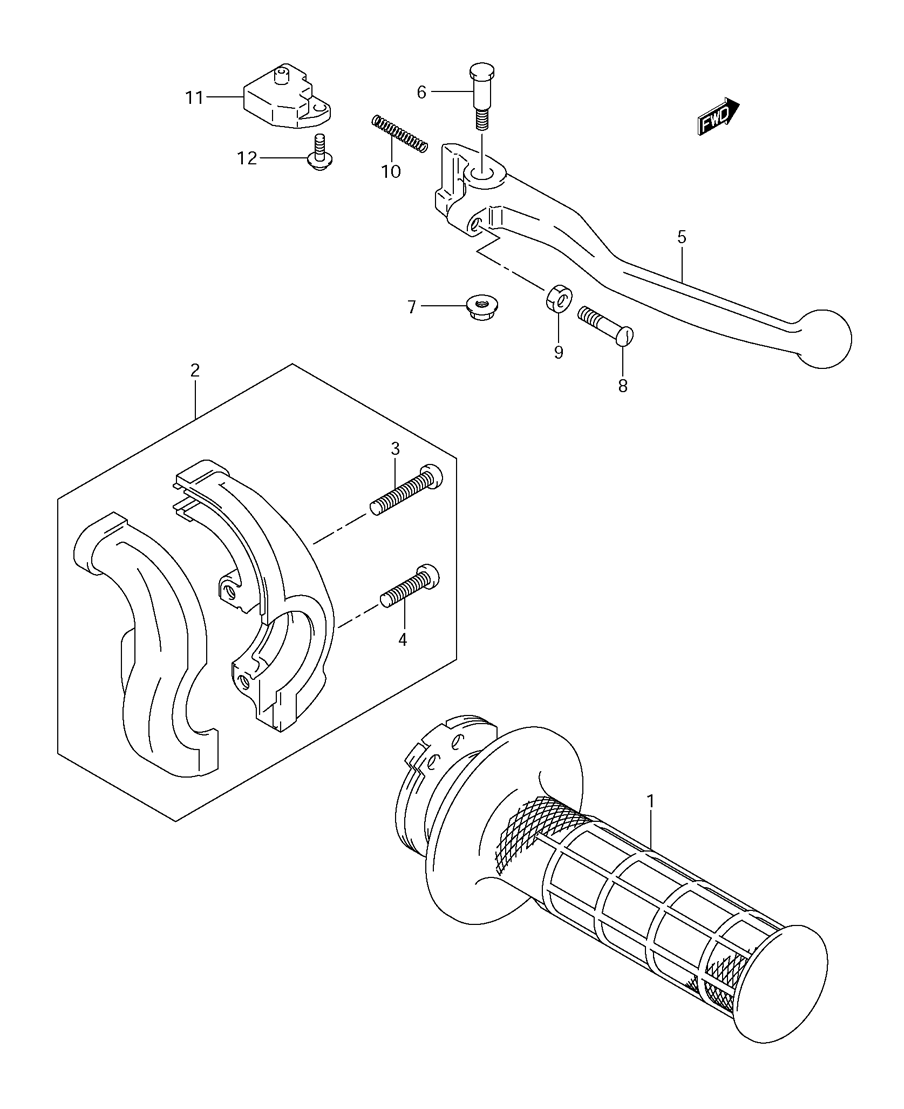

HANDLEBAR - RIGHT HANDLE LEVER для Suzuki DR-Z400SK5 - 2005 года выпуска
-
№АртикулНазвание
-
157110-12D11 GRIP, THROTTLEGRIP, THROTTLE
-
257100-14D00 CASE ASSEMBLY, THROTTLECASE ASSEMBLY, THROTTLE
-
309125-05066 ...SCREW, UPPER (5X25)...SCREW, UPPER (5X25)
-
402112-0520B ...SCREW...SCREW
-
557421-44E00 LEVER, BRAKELEVER, BRAKE
-
657431-14500 BOLT, LEVERBOLT, LEVER
-
708319-2106A NUTNUT
-
857431-14511 BOLT, ADJUSTBOLT, ADJUST
-
908310-0005B NUTNUT
-
1057318-14502 SPRINGSPRING
-
1157460-17C11 SWITCH ASSEMBLY, STOPSWITCH ASSEMBLY, STOP
-
1257465-17C00 ...SCREW...SCREW
