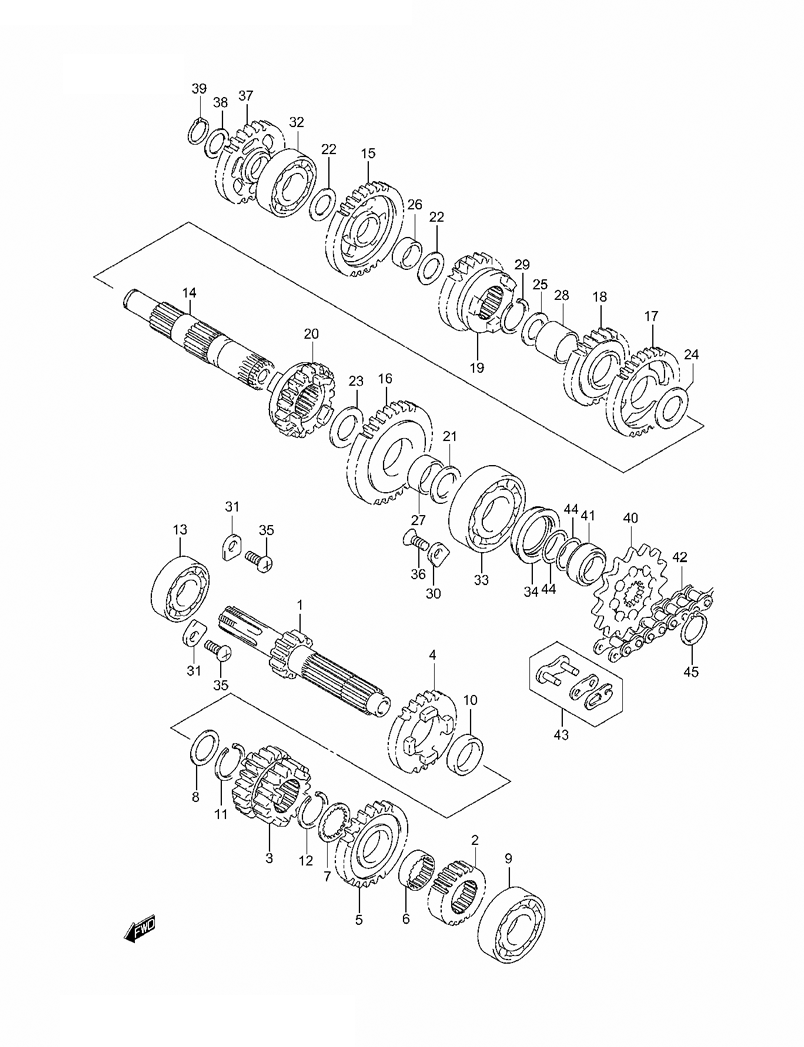

TRANSMISSION для Suzuki RM-125K4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    24120-36F10 SHAFT, COUNTER (NT:14)
    SHAFT, COUNTER (NT:14)
  • 2
    24221-36F10 GEAR, 2ND DRIVE (NT:16)
    GEAR, 2ND DRIVE (NT:16)
  • 3
    24231-36F00 GEAR, 3RD AND 4TH DRIVE
    GEAR, 3RD AND 4TH DRIVE
  • 4
    24251-43D20 GEAR, 5TH DRIVE (NT:19)
    GEAR, 5TH DRIVE (NT:19)
  • 5
    24261-43D01 GEAR, 6TH DRIVE (NT:20)
    GEAR, 6TH DRIVE (NT:20)
  • 6
    24262-36F00 BUSH, 6TH DRIVE
    BUSH, 6TH DRIVE
  • 7
    09167-22024 WASHER LOCK, 6TH DRIVE
    WASHER LOCK, 6TH DRIVE
  • 8
    09181-22139 WASHER, 5TH DRIVE (22X28X1.0)
    WASHER, 5TH DRIVE (22X28X1.0)
  • 9
    09262-17040 BEARING, CNTR SHAFT, LEFT HAND
    BEARING, CNTR SHAFT, LEFT HAND
  • 10
    09300-22008 BUSH, 5TH DRIVE GEAR
    BUSH, 5TH DRIVE GEAR
  • 11
    09380-22006 CIRCLIP, 5TH DRIVE
    CIRCLIP, 5TH DRIVE
  • 12
    09380-22006 CIRCLIP, 6TH DRIVE
    CIRCLIP, 6TH DRIVE
  • 13
    09262-20122 BEARING, CENTER SHAFT, RIGHT HAND
    BEARING, CENTER SHAFT, RIGHT HAND
  • 14
    24131-36F00 SHAFT, DRIVE
    SHAFT, DRIVE
  • 15
    24311-36F00 GEAR, 1ST DRIVEN (NT:29)
    GEAR, 1ST DRIVEN (NT:29)
  • 16
    24321-36F01 GEAR, 2ND DRIVEN (NT:27)
    GEAR, 2ND DRIVEN (NT:27)
  • 17
    24331-36E01 GEAR, 3RD DRIVEN (NT:26)
    GEAR, 3RD DRIVEN (NT:26)
  • 18
    24341-36E00 GEAR, 4TH DRIVEN (NT:24)
    GEAR, 4TH DRIVEN (NT:24)
  • 19
    24351-36F00 GEAR, 5TH DRIVEN (NT:20)
    GEAR, 5TH DRIVEN (NT:20)
  • 20
    24361-36E02 GEAR, 6TH DRIVEN (NT:19)
    GEAR, 6TH DRIVEN (NT:19)
  • 21
    09160-20074 WASHER, 2ND DRIVEN LEFT HAND
    WASHER, 2ND DRIVEN LEFT HAND
  • 22
    09181-17167 WASHER, 1ST DRIVEN (17X26X1)
    WASHER, 1ST DRIVEN (17X26X1)
  • 23
    09181-22167 WASHER, 2ND DRIVEN (22X30X1)
    WASHER, 2ND DRIVEN (22X30X1)
  • 24
    09181-22167 WASHER, 3RD DRIVEN (22X30X1)
    WASHER, 3RD DRIVEN (22X30X1)
  • 25
    09181-22167 WASHER, 4TH DRIVEN (22X30X1)
    WASHER, 4TH DRIVEN (22X30X1)
  • 26
    09300-17012 BUSH, 1ST DRIVEN
    BUSH, 1ST DRIVEN
  • 27
    09300-22008 BUSH, 2ND DRIVEN
    BUSH, 2ND DRIVEN
  • 28
    09300-22018 BUSH, 3RD AND 4TH DRIVEN
    BUSH, 3RD AND 4TH DRIVEN
  • 29
    09380-22006 CIRCLIP, 4TH DRIVEN
    CIRCLIP, 4TH DRIVEN
  • 30
    24741-20A00 RETAINER, DRIVE SHAFT BEARING
    RETAINER, DRIVE SHAFT BEARING
  • 31
    24741-21A00 RETAINER, CNTR SHAFT BEARING
    RETAINER, CNTR SHAFT BEARING
  • 32
    09262-17040 BEARING, DRIVE SHAFT RIGHT HAND
    BEARING, DRIVE SHAFT RIGHT HAND
  • 33
    09262-20110 BEARING, DRIVE SHAFT LEFT HAND
    BEARING, DRIVE SHAFT LEFT HAND
  • 34
    09289-28012 SEAL, DRIVE SHAFT OIL
    SEAL, DRIVE SHAFT OIL
  • 35
    02112-06103 SCREW, CENTER SHAFT
    SCREW, CENTER SHAFT
  • 36
    02122-06123 SCREW, DRIVE SHAFT
    SCREW, DRIVE SHAFT
  • 37
    26260-43D00 GEAR, KICK IDLE (NT:26)
    GEAR, KICK IDLE (NT:26)
  • 38
    09181-17130 WASHER (17X24X0.50)
    WASHER (17X24X0.50)
  • 39
    08331-31176 CIRCLIP
    CIRCLIP
  • 40
    27511-14111 SPROCKET, ENGINE (NT:12)
    SPROCKET, ENGINE (NT:12)
  • 40
    27511-14121 SPROCKET, ENGINE (NT:13)
    SPROCKET, ENGINE (NT:13)
  • 41
    27531-43D00 SPACER
    SPACER
  • 42
    27600-43D01-114 CHAIN ASSY (DID520DMA,114L)
    CHAIN ASSY (DID520DMA,114L)
  • 43
    27620-43D00 JOINT (DID)
    JOINT (DID)
  • 44
    09280-20006 O RING (D:1.9,ID:19.8)
    O RING (D:1.9,ID:19.8)
  • 45
    09380-20007 CIRCLIP
    CIRCLIP
