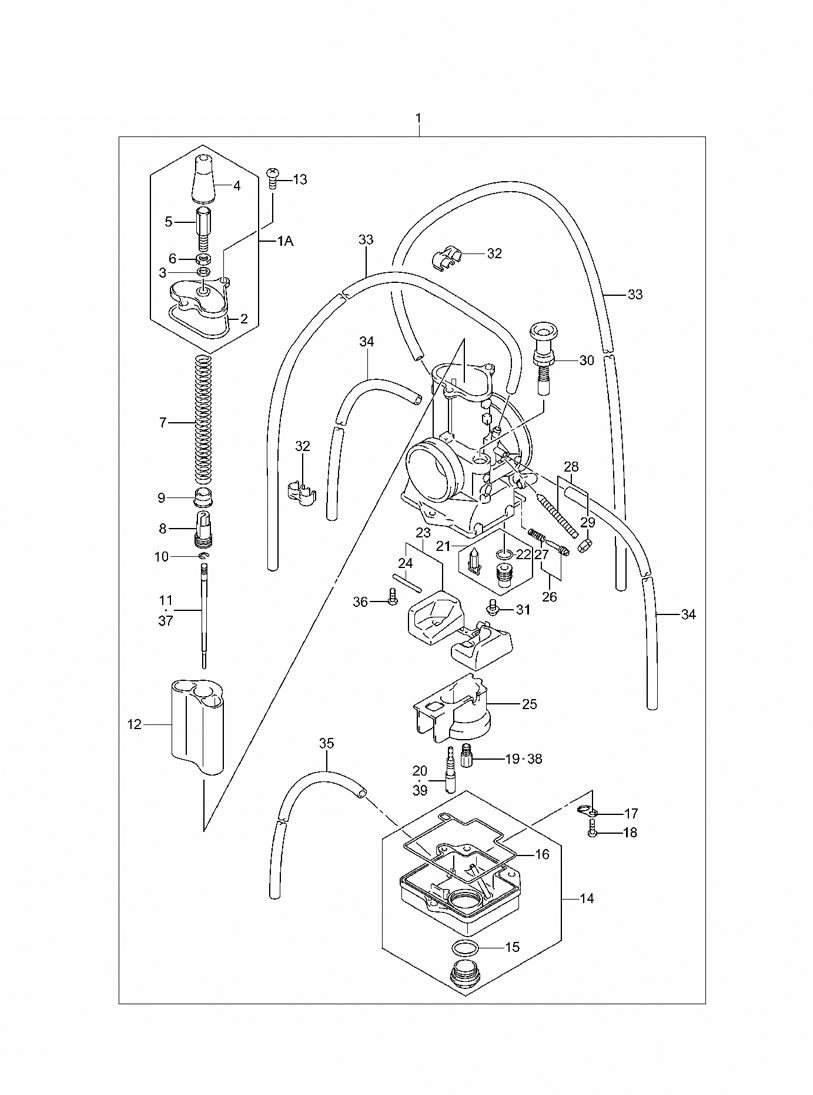

CARBURETOR ASSY. для Suzuki RM-125K4 - 2004 года выпуска`
-
№АртикулНазвание
-
113200-36F40 CARBURETOR ASSY (EXPECT CANADA)CARBURETOR ASSY (EXPECT CANADA)
-
113200-36F50 CARBURETOR ASSY (CANADA ONLY)CARBURETOR ASSY (CANADA ONLY)
-
1A13260-36F00 TOP CAP ASSYTOP CAP ASSY
-
213258-36F00 PACKINGPACKING
-
313531-09300 WASHERWASHER
-
413681-16600 CAP, RUBBERCAP, RUBBER
-
513577-41612 ADJUSTER, CABLEADJUSTER, CABLE
-
613661-16600 NUT, CABLE ADJUSTER LOCKNUT, CABLE ADJUSTER LOCK
-
713573-36F00 SPRINGSPRING
-
813518-36F00 GUIDEGUIDE
-
913424-36F00 RINGRING
-
1013394-17E60 E RING, MULTIPLE JET NOZZLEE RING, MULTIPLE JET NOZZLE
-
1113383-36FQ0 NEEDLE, JET (6CHY16-62) (CANADA ONLY)NEEDLE, JET (6CHY16-62) (CANADA ONLY)
-
1113383-36FR0 NEEDLE, JET (6CHY17-62) (EXCEPT CANADA)NEEDLE, JET (6CHY17-62) (EXCEPT CANADA)
-
1213551-36F40 PISTON, VALVEPISTON, VALVE
-
1313602-48B10 SCREWSCREW
-
1413250-36F10 FLOAT BODY ASSYFLOAT BODY ASSY
-
1513246-29630 O RINGO RING
-
1613251-36F00 O RINGO RING
-
1713693-36500 PLATEPLATE
-
1813601-05148 SCREW (5X14)SCREW (5X14)
-
1909491-78005 JET, MAIN (#390) (EXCEPT CANADA)JET, MAIN (#390) (EXCEPT CANADA)
-
1909491-92002 JET, MAIN (#460) (CANADA ONLY)JET, MAIN (#460) (CANADA ONLY)
-
2009492-42003 JET, PILOT (42.5)JET, PILOT (42.5)
-
2113370-36F00 VALVE ASSY, NEEDLEVALVE ASSY, NEEDLE
-
2213374-35C00 O RINGO RING
-
2313240-36F00 FLOAT SETFLOAT SET
-
2413254-20010 PIN, FLOATPIN, FLOAT
-
2513418-36F00 HOLDERHOLDER
-
2613280-36F20 ADJUSTER SET (AS)ADJUSTER SET (AS)
-
2713268-35010 SPRINGSPRING
-
2813270-36F00 ADJUSTER SET (PV)ADJUSTER SET (PV)
-
2913607-47070 NUTNUT
-
3013411-36F00 PLUNGER ASSYPLUNGER ASSY
-
3113602-05A10 SCREWSCREW
-
3213619-42E00 CLIPCLIP
-
3309351-35653-600 HOSE (3.5X6.5X600)HOSE (3.5X6.5X600)
-
3409351-35653-600 HOSE (3.5X6.5X600)HOSE (3.5X6.5X600)
-
3509351-30503-600 HOSE (3X5X600)HOSE (3X5X600)
-
3602112-04083 SCREWSCREW
-
3713383-36FM0 NEEDLE, JET (6CHY17-64)NEEDLE, JET (6CHY17-64)
-
3713383-36FP0 NEEDLE, JET (6CHY17-63)NEEDLE, JET (6CHY17-63)
-
3713383-36FR0 NEEDLE, JET (6CHY17-62)NEEDLE, JET (6CHY17-62)
-
3713381-36F00 NEEDLE, JET (6CHY17-61)NEEDLE, JET (6CHY17-61)
-
3713381-36F20 NEEDLE, JET (6CHY17-60)NEEDLE, JET (6CHY17-60)
-
3713383-36FL0 NEEDLE, JET (6CHY16-64)NEEDLE, JET (6CHY16-64)
-
3713383-36FN0 NEEDLE, JET (6CHY16-63)NEEDLE, JET (6CHY16-63)
-
3713383-36FQ0 NEEDLE, JET (6CHY16-62)NEEDLE, JET (6CHY16-62)
-
3713383-36FS0 NEEDLE, JET (6CHY16-61)NEEDLE, JET (6CHY16-61)
-
3713381-36F10 NEEDLE, JET (6CHY16-60)NEEDLE, JET (6CHY16-60)
-
3809491-80010 JET, MAIN (#400)JET, MAIN (#400)
-
3809491-82007 JET, MAIN (#410)JET, MAIN (#410)
-
3809491-84008 JET, MAIN (#420)JET, MAIN (#420)
-
3809491-86002 JET, MAIN (#430)JET, MAIN (#430)
-
3809491-88001 JET, MAIN (#440)JET, MAIN (#440)
-
3809491-90005 JET, MAIN (#450)JET, MAIN (#450)
-
3809491-92002 JET, MAIN (#460)JET, MAIN (#460)
-
3809491-94004 JET, MAIN (#470)JET, MAIN (#470)
-
3809491-96001 JET, MAIN (#480)JET, MAIN (#480)
-
3809491-98001 JET, MAIN (#490)JET, MAIN (#490)
-
3809491-10001 JET, MAIN (#500)JET, MAIN (#500)
-
3809491-70011 JET, MAIN (#350)JET, MAIN (#350)
-
3809491-72011 JET, MAIN (#360)JET, MAIN (#360)
-
3809491-74003 JET, MAIN (#370)JET, MAIN (#370)
-
3809491-76003 JET, MAIN (#380)JET, MAIN (#380)
-
3809491-78005 JET, MAIN (#390)JET, MAIN (#390)
-
3909492-25011 JET, PILOT (25)JET, PILOT (25)
-
3909492-27011 JET, PILOT (27.5)JET, PILOT (27.5)
-
3909492-30014 JET, PILOT (30.0)JET, PILOT (30.0)
-
3909492-32010 JET, PILOT (32.5)JET, PILOT (32.5)
-
3909492-35021 JET, PILOT (35.0)JET, PILOT (35.0)
-
3909492-37003 JET, PILOT (37.5)JET, PILOT (37.5)
-
3909492-40028 JET, PILOT (40.0)JET, PILOT (40.0)
-
3909492-42023 JET, PILOT (42.5)JET, PILOT (42.5)
-
3909492-45034 JET, PILOT (45.0)JET, PILOT (45.0)
-
3909492-47022 JET, PILOT (47.5)JET, PILOT (47.5)
-
4013394-36F20 WASHER, JET NEEDLE CLIPWASHER, JET NEEDLE CLIP
-
4113518-36F20 HOLDER, GUIDEHOLDER, GUIDE
