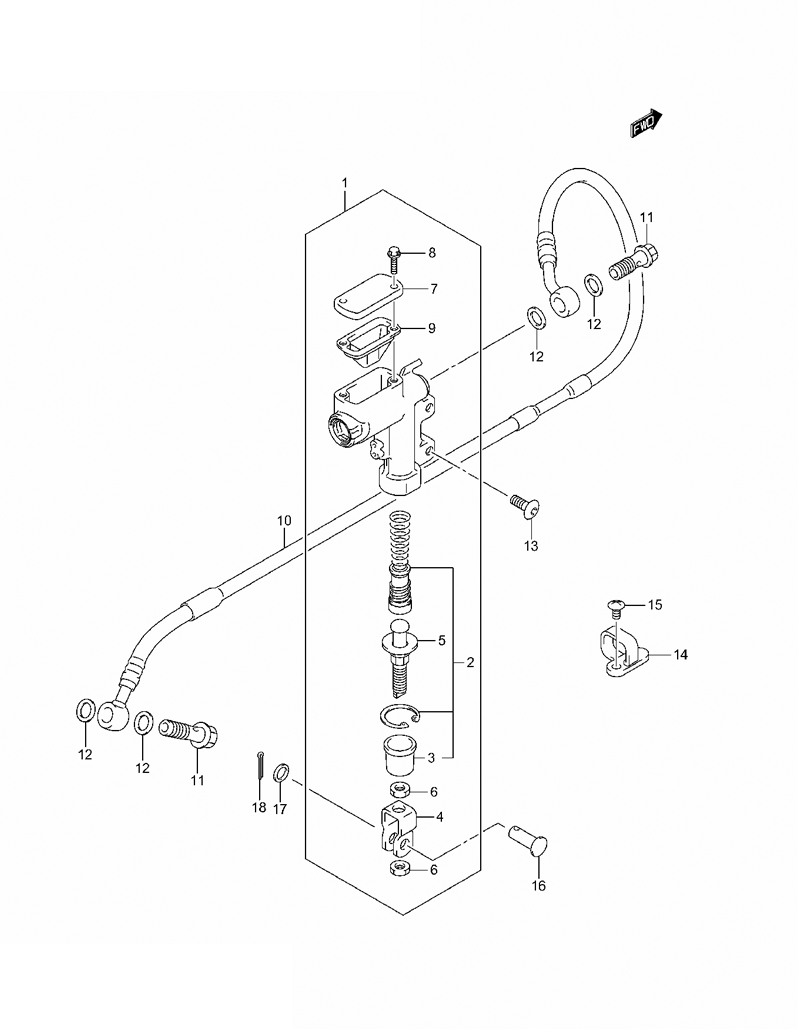

BRAKE - REAR MASTER CYLINDER для Suzuki RM-125K4 - 2004 года выпуска`
-
№АртикулНазвание
-
169604-37F20 CYLINDER SET, REAR MASTERCYLINDER SET, REAR MASTER
-
269600-04820 PISTON/CUP SETPISTON/CUP SET
-
369691-00A00 BOOTBOOT
-
469692-13E00 YOKEYOKE
-
569670-40A00 ROD, PUSHROD, PUSH
-
669693-05A00 NUTNUT
-
769669-37F20 CAPCAP
-
869689-37F20 SCREWSCREW
-
969667-37F20 DIAPHRAGMDIAPHRAGM
-
1069480-36F20 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
1109360-10042 BOLT (10X1.25X22)BOLT (10X1.25X22)
-
1209161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
1309139-06067 BOLT (6X16)BOLT (6X16)
-
1461196-27C30 GUIDE, HOSEGUIDE, HOSE
-
1502142-05103 SCREWSCREW
-
1609200-08048 PINPIN
-
1709160-08119 WASHERWASHER
-
1804111-20158 PIN, COTTERPIN, COTTER
