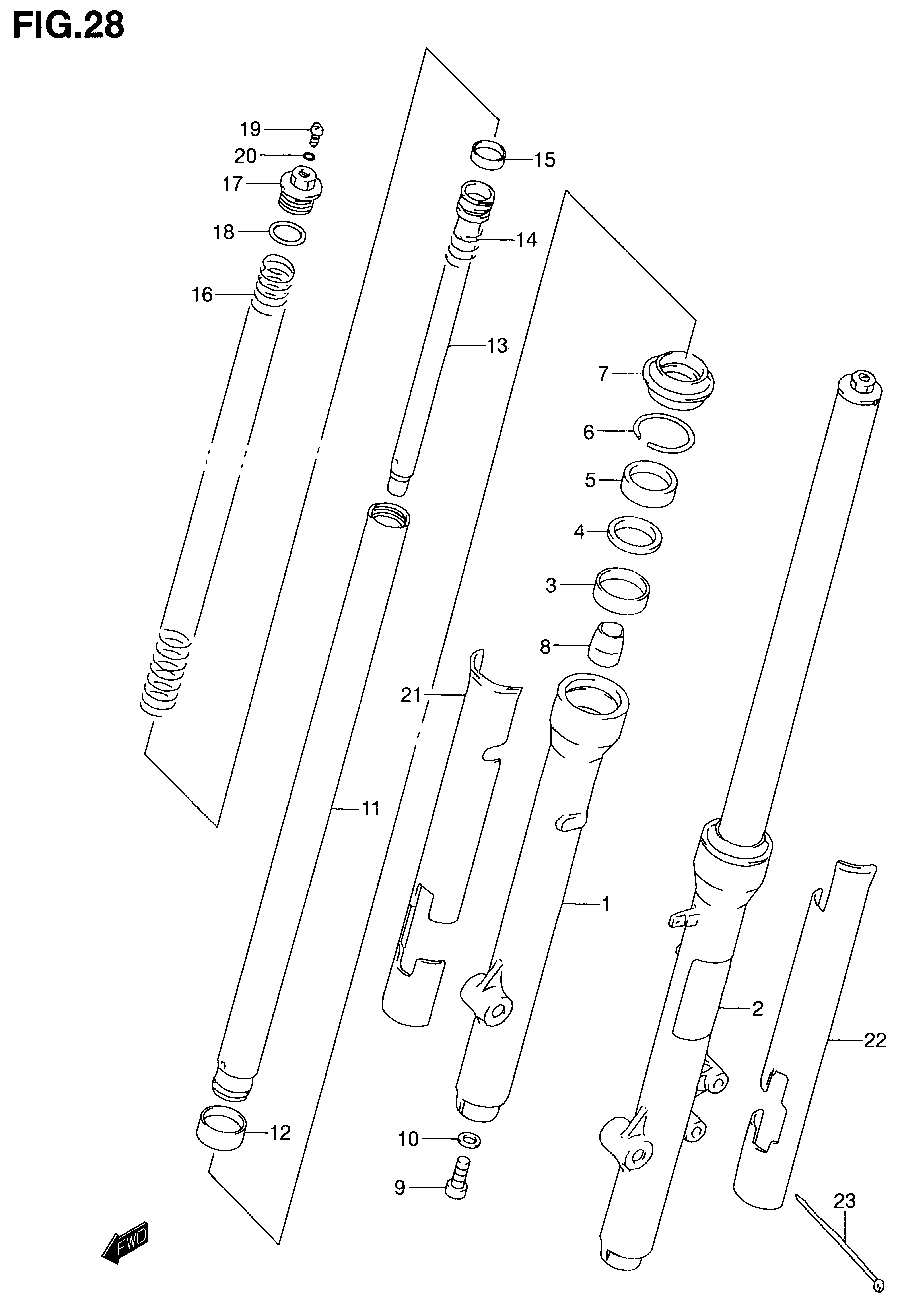

SUSPENSION - FRONT FORK для Suzuki RM80K1 - 2001 года выпуска
-
№АртикулНазвание
-
51103-02B60 DAMPER ASSY, FORK (FRONT/RIGHT)DAMPER ASSY, FORK (FRONT/RIGHT)
-
51104-02B60 DAMPER ASSY, FORK (FRONT/LEFT)DAMPER ASSY, FORK (FRONT/LEFT)
-
151130-02B60 ...TUBE (OUTER/RIGHT)...TUBE (OUTER/RIGHT)
-
251140-02B60 ...TUBE (OUTER/LEFT)...TUBE (OUTER/LEFT)
-
351152-45400 ...BUSH, GUIDE...BUSH, GUIDE
-
451168-30B00 ...SPACER, SEAL...SPACER, SEAL
-
551153-19D10 ...SEAL, OIL...SEAL, OIL
-
651156-01A00 ...RING, STOPPER...RING, STOPPER
-
751571-03B20 ...SEAL, DUST...SEAL, DUST
-
851195-02B40 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
951147-48130 ...BOLT...BOLT
-
1051148-36011 ...O RING...O RING
-
1151110-02B40 ...TUBE (INNER)...TUBE (INNER)
-
1251121-34A00 ...BUSH, SLIDE...BUSH, SLIDE
-
1351194-02B40 ...SEAT, UNDER...SEAT, UNDER
-
1451177-02B20 ...SPRING, REBOUND...SPRING, REBOUND
-
1551196-02B40 ...RING, PISTON...RING, PISTON
-
1651171-02B40 ...SPRING...SPRING
-
16A99104-S2691 SPRING (FRONT) (HARD, K=0.36) (OPT)SPRING (FRONT) (HARD, K=0.36) (OPT)
-
1751351-02B60 ...BOLT, FORK...BOLT, FORK
-
1851117-02B20 ...O RING...O RING
-
1951357-27C40 ...BOLT, PLUG...BOLT, PLUG
-
2051117-19C10 ...O RING...O RING
-
2151201-02B00 PROTECTOR, FORK (FRONT/RIGHT) (OPT)PROTECTOR, FORK (FRONT/RIGHT) (OPT)
-
2251202-02B00 PROTECTOR, FORK (FRONT/LEFT) (OPT)PROTECTOR, FORK (FRONT/LEFT) (OPT)
-
2309407-25402 CLAMP, PROTECTOR (L:248) (OPT)CLAMP, PROTECTOR (L:248) (OPT)
