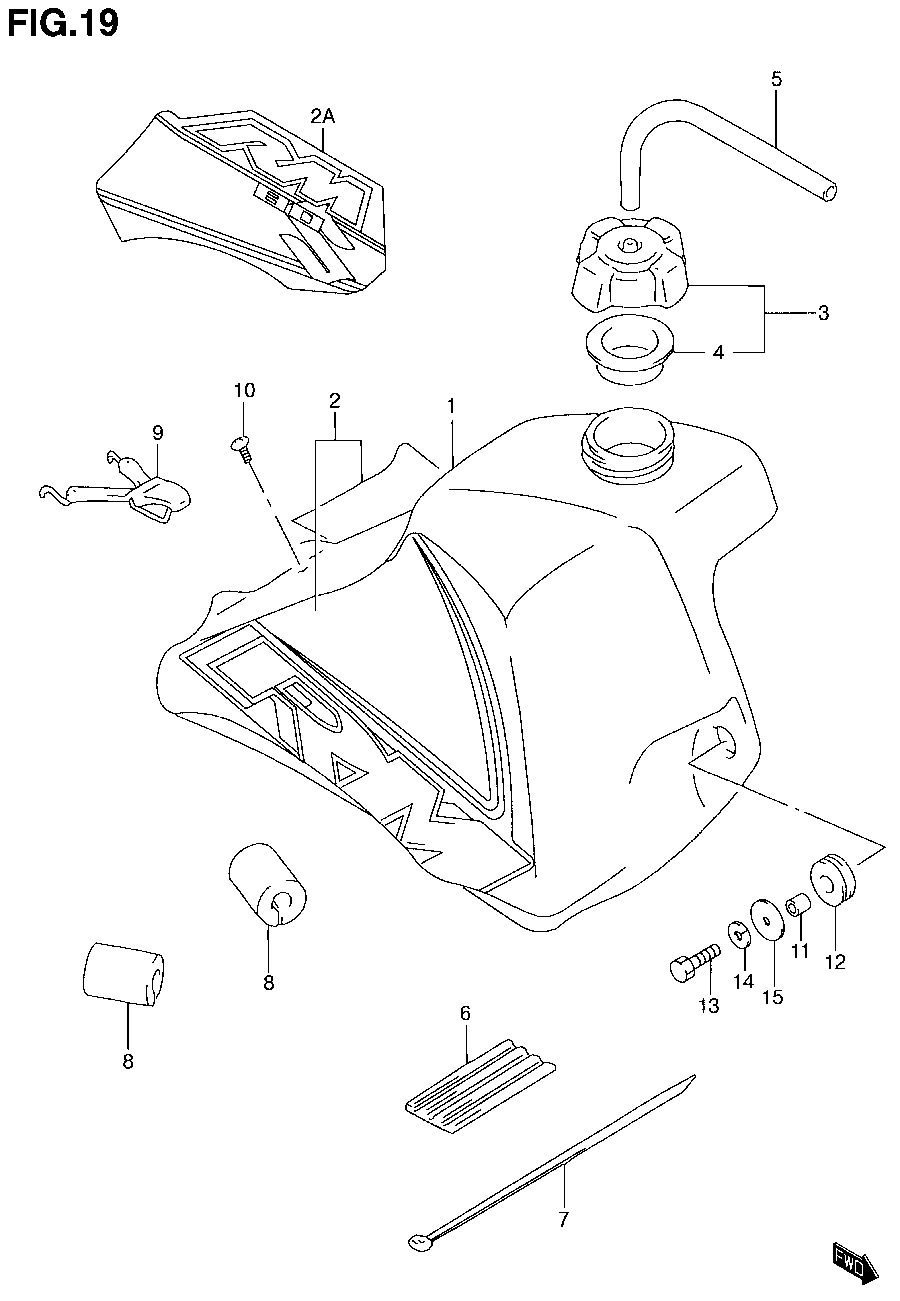

FUEL TANK для Suzuki RM80K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-244110-02B00-YR1 TANK, FUEL (YELLOW)TANK, FUEL (YELLOW)
-
2A68110-03BA0-DY9 TAPE SET, FUEL TANKTAPE SET, FUEL TANK
-
344200-27870 CAP SET, FUELCAP SET, FUEL
-
444248-27C00 ...GASKET...GASKET
-
509352-50823-600 HOSE (L:600R280)HOSE (L:600R280)
-
644541-14300 CUSHION (UPPER/FRONT)CUSHION (UPPER/FRONT)
-
709407-25402 CLAMPCLAMP
-
844542-17300 CUSHION (UPPER/REAR)CUSHION (UPPER/REAR)
-
944560-26C00 BAND (REAR)BAND (REAR)
-
1002142-06163 SCREWSCREW
-
1109180-06289 SPACERSPACER
-
1209320-10029 CUSHIONCUSHION
-
13-209118-06076 BOLTBOLT
