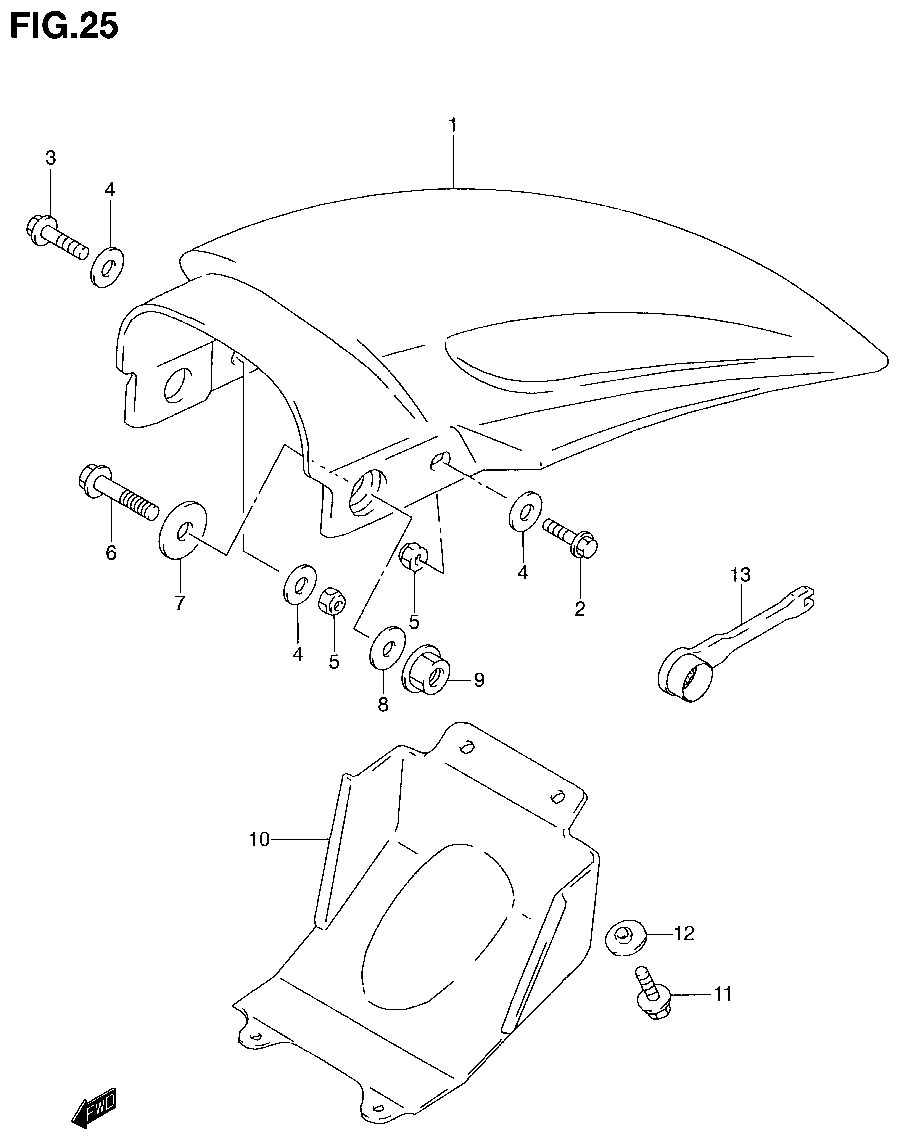

FENDER - REAR для Suzuki RM80K1 - 2001 года выпуска`
-
№АртикулНазвание
-
1-263111-03B60-YR1 FENDER (REAR/YELLOW)FENDER (REAR/YELLOW)
-
201547-06203 BOLT (LEFT)BOLT (LEFT)
-
301547-06303 BOLT (RIGHT)BOLT (RIGHT)
-
409160-06077 WASHERWASHER
-
508319-21068 NUTNUT
-
601547-06303 BOLT, SIDE (FRONT)BOLT, SIDE (FRONT)
-
709160-06135 WASHER (INNER)WASHER (INNER)
-
809160-06084 WASHER (OUTER)WASHER (OUTER)
-
908319-31063 NUTNUT
-
1063351-03B00 MUD GUARD, FENDER (REAR/FRONT)MUD GUARD, FENDER (REAR/FRONT)
-
1101547-06103 BOLTBOLT
-
1209169-06010 WASHERWASHER
-
1309816-00126 BOX SPANNER, 21BOX SPANNER, 21
