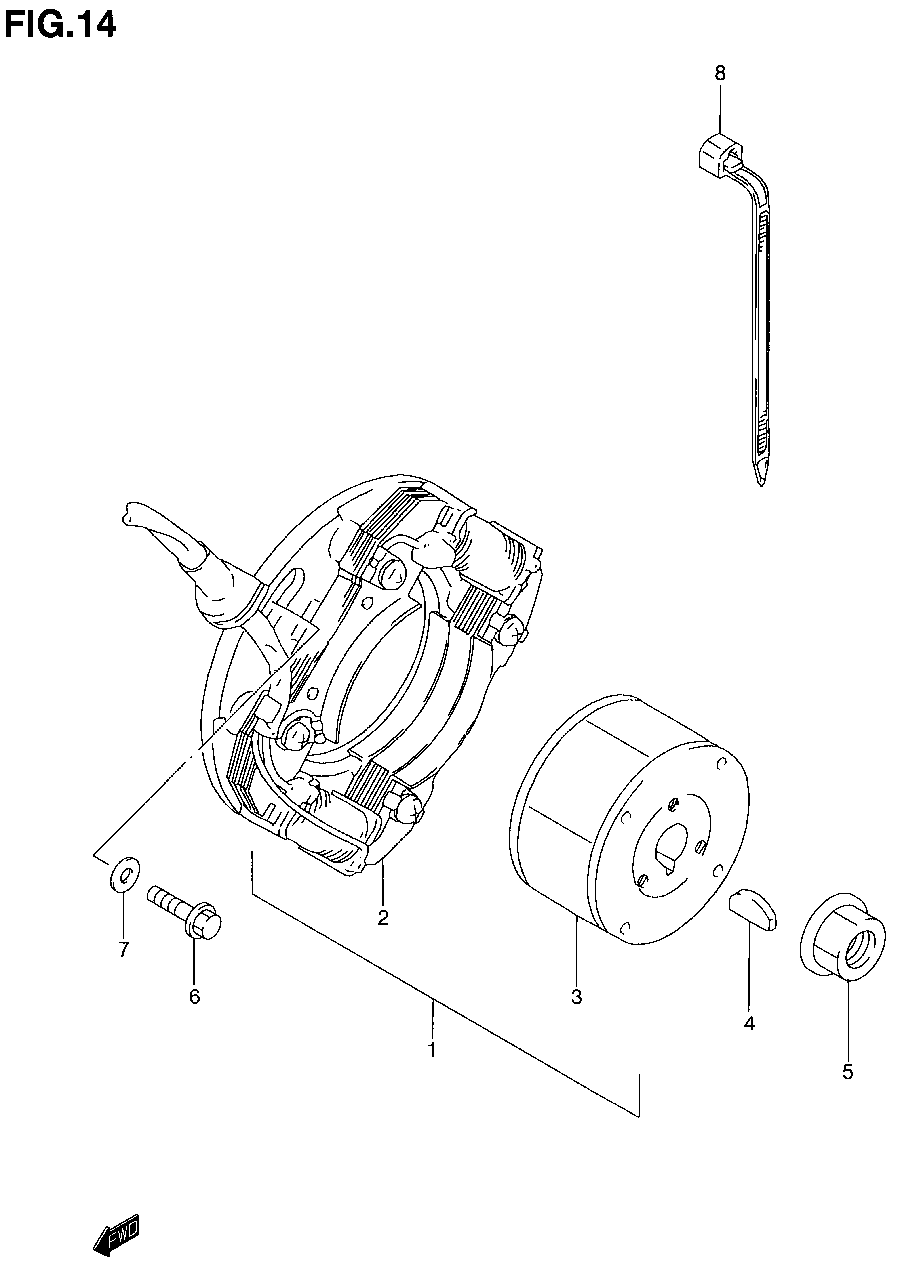

MAGNETO для Suzuki RM80Y - 2000 года выпуска`
-
№АртикулНазвание
-
132100-02B31 MAGNETO ASSYMAGNETO ASSY
-
232101-02B31 ...STATOR...STATOR
-
332102-02B30 ...ROTOR...ROTOR
-
409420-04008 KEYKEY
-
508316-10103 NUTNUT
-
601547-06203 BOLTBOLT
-
708322-01063 WASHERWASHER
-
8-109407-14403 CLAMP (L:125)CLAMP (L:125)
-
8-209407-18402 CLAMP (L:165)CLAMP (L:165)
