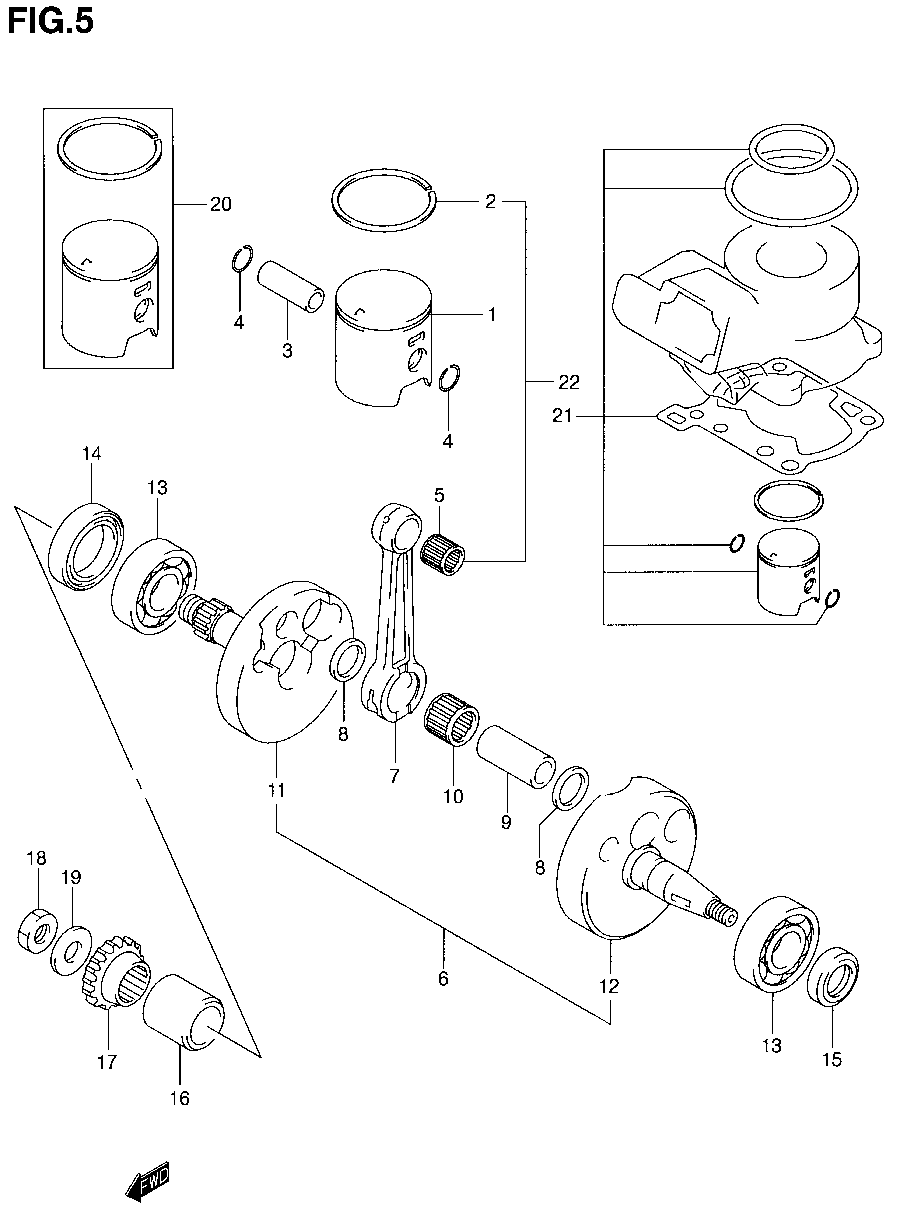

CRANKSHAFT W/ PISTONS для Suzuki RM80Y - 2000 года выпуска

№

Артикул

Название
1

12110-03B00-0F0 PISTON

PISTON
2-1

12141-02B70 RING, PISTON STD

RING, PISTON STD
2-2

12141-02B70-050 RING, PISTON (OS:0.5)

RING, PISTON (OS:0.5)
2-3

12141-02B70-100 RING, PISTON (OS:1.0)

RING, PISTON (OS:1.0)
3

12151-20910 PIN, PISTON

PIN, PISTON
4

09381-14001 CIRCLIP

CIRCLIP
5

09263-14016 BEARING, PISTON PIN

BEARING, PISTON PIN
6

12200-03B00 CRANKSHAFT ASSY

CRANKSHAFT ASSY
7

12161-02B52 ...ROD, CONNECTING

...ROD, CONNECTING
8

08211-20252 ...WASHER

...WASHER
9

12211-02B50 ...PIN, CRANK

...PIN, CRANK
10

09263-20079 ...BEARING (20X26X13.7)

...BEARING (20X26X13.7)
11

12221-03B00 ...CRANKSHAFT (RIGHT)

...CRANKSHAFT (RIGHT)
12

12261-03B00 ...CRANKSHAFT (LEFT)

...CRANKSHAFT (LEFT)
13

09262-20082 BEARING (20X52X15)

BEARING (20X52X15)
14

09283-30061 OIL SEAL, RH (30X40X7)

OIL SEAL, RH (30X40X7)
15

09283-18007 OIL SEAL, LH (18X30X6)

OIL SEAL, LH (18X30X6)
16

12359-27C30 SPACER, PRI DRIVE GEAR

SPACER, PRI DRIVE GEAR
17

21111-02B41 GEAR, PRIMARY DRIVE (NT:18)

GEAR, PRIMARY DRIVE (NT:18)
18

09140-16019 NUT

NUT
19

09164-16002 WASHER

WASHER
20

12100-03B00 PISTON SET (STD) (OPT) (USA)

PISTON SET (STD) (OPT) (USA)
20-1

12100-03B00-050 PISTON SET (OS:0.5) (OPT) (USA)

PISTON SET (OS:0.5) (OPT) (USA)
20-2

12100-03B00-100 PISTON SET (OS:1.0) (OPT) (USA)

PISTON SET (OS:1.0) (OPT) (USA)
21-1

12100-03830 TOP END KIT, ENGINE (STD) (OPT) (USA)

TOP END KIT, ENGINE (STD) (OPT) (USA)
21-2

12100-03830-050 TOP END KIT, ENGINE (OS:0.5) (OPT) (USA)

TOP END KIT, ENGINE (OS:0.5) (OPT) (USA)
21-2

12100-03830-100 TOP END KIT, ENGINE (OS:1.0) (OPT) (USA)

TOP END KIT, ENGINE (OS:1.0) (OPT) (USA)
22-1

12100-03810 PISTON KIT (STD) (OPT) (CANADA)

PISTON KIT (STD) (OPT) (CANADA)
22-2

12100-03810-050 PISTON KIT (OS:0.5) (OPT) (CANADA)

PISTON KIT (OS:0.5) (OPT) (CANADA)
22-3

12100-03810-100 PISTON KIT (OS:1.0) (OPT) (CANADA)

PISTON KIT (OS:1.0) (OPT) (CANADA)
