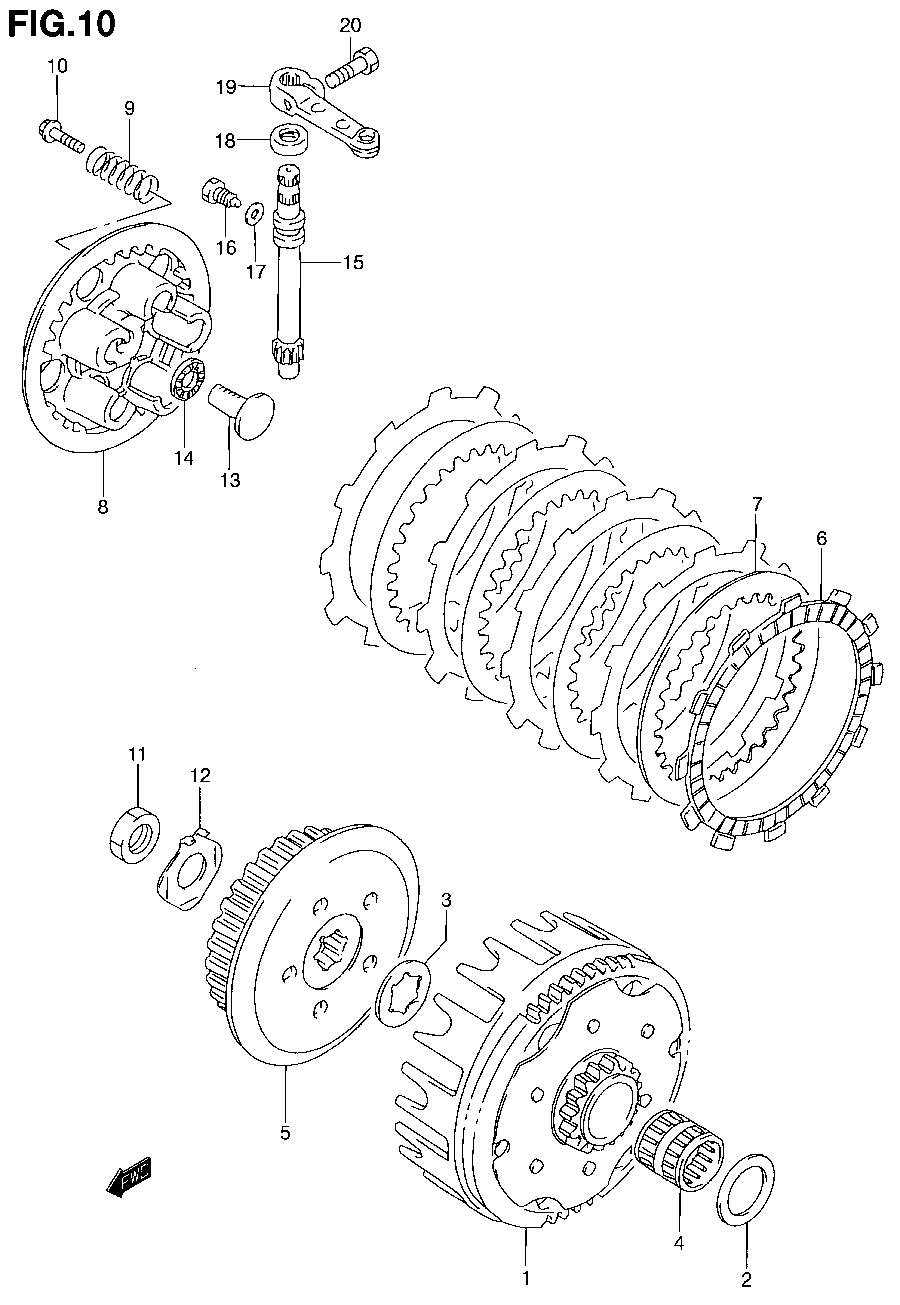

CLUTCH ASSY. для Suzuki RM80Y - 2000 года выпуска
-
№АртикулНазвание
-
121200-02B41 GEAR ASSY, PRIMARY DRIVENGEAR ASSY, PRIMARY DRIVEN
-
209181-20223 WASHER (20X32X1.0)WASHER (20X32X1.0)
-
309167-20024 WASHER (20.1X30X2.0)WASHER (20.1X30X2.0)
-
409263-20023 BEARING (20X25X26)BEARING (20X25X26)
-
521410-01B00 HUB, SLEEVEHUB, SLEEVE
-
621441-13A01 PLATE, DRIVE (T:3)PLATE, DRIVE (T:3)
-
721451-36200 PLATE, DRIVEN (T:2)PLATE, DRIVEN (T:2)
-
821462-02B40 DISC, PRESSUREDISC, PRESSURE
-
909440-16017 SPRINGSPRING
-
1009116-05020 BOLT (5X16)BOLT (5X16)
-
1109140-16027 NUTNUT
-
1209169-16005 LOCK WASHERLOCK WASHER
-
1323165-44B01 RACKRACK
-
1409263-10002 THRUST BEARING (10.1X22X2.8)THRUST BEARING (10.1X22X2.8)
-
1523261-20A01 PINIONPINION
-
1609135-06013 BOLTBOLT
-
1709168-06004 WASHER (6.2X11X1.2)WASHER (6.2X11X1.2)
-
1809285-10004 OIL SEAL (10X17X5)OIL SEAL (10X17X5)
-
1923271-20901 ARM, RELEASEARM, RELEASE
-
2001547-06163 BOLTBOLT
Все узлы модели:
- AIR CLEANER ASSY.
- BRAKE - FRONT CALIPER ASSY.
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER ASSY.
- BRAKE - REAR MASTER CYLINDER ASSY.
- BRAKE - REAR PEDAL
- CARBURETOR
- • CLUTCH ASSY.
- CRANKCASE
- CRANKCASE COVER W/ WATER PUMP
- CRANKSHAFT W/ PISTONS
- CYLINDER
- ELECTRICAL - CDI W/ IGNITION COIL
- EXHAUST VALVE ASSY.
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FUEL COCK
- FUEL TANK
- GEAR SHIFTING
- HANDLEBAR - LEVERS
- HANDLEBAR W/ CABLES
- MAGNETO
- MUFFLER
- OPTIONAL EQUIPMENT
- OWNERS MANUALS W/ WARNING/SAFETY DECALS
- RADIATOR ASSY.
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER - KICK
- STEERING STEM
- SUSPENSION - CUSHION LEVER
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TRANSMISSION
- WHEEL - FRONT ASSY.
- WHEEL - REAR ASSY.
