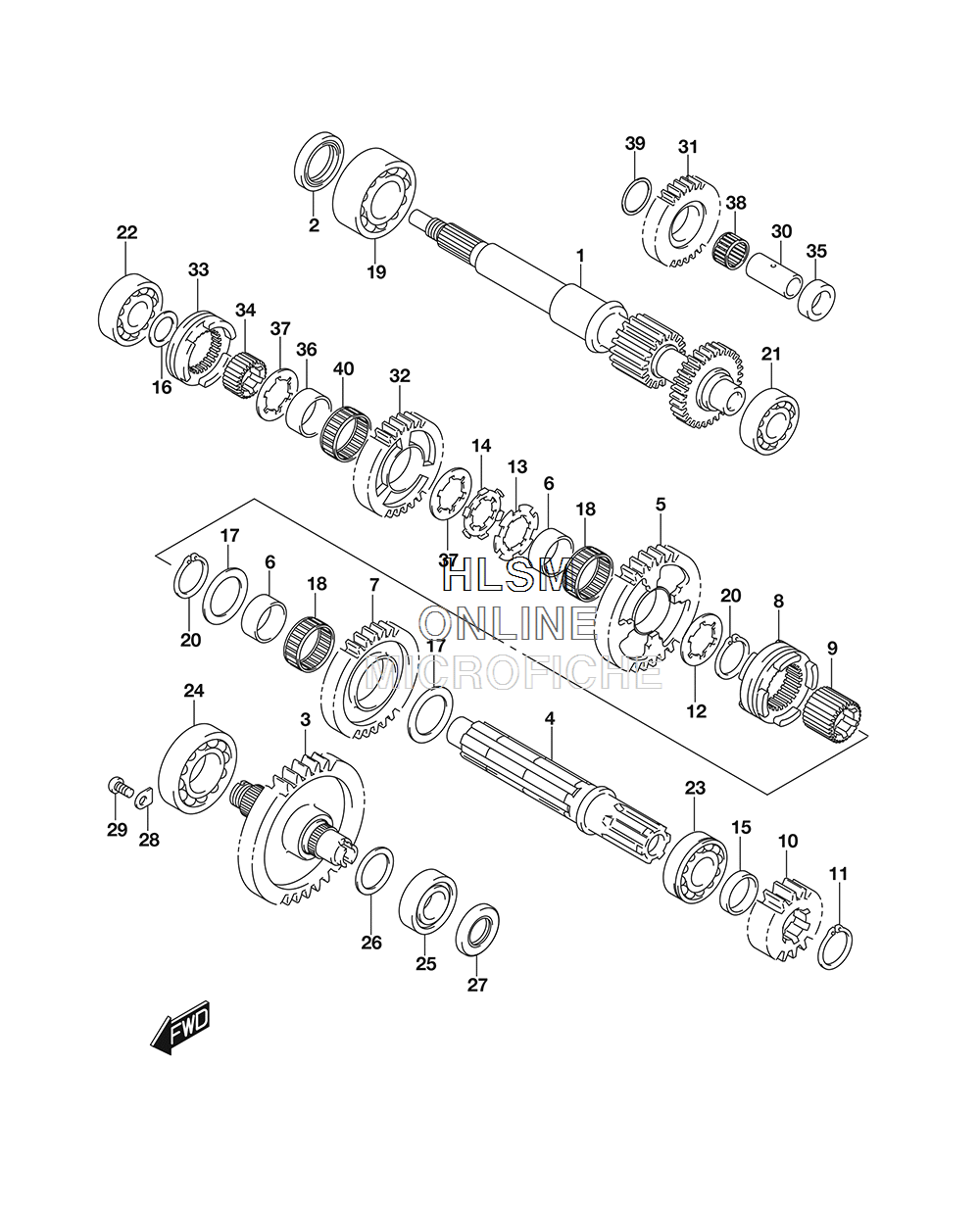

TRANSMISSION (2) для Suzuki LT-A400FL8 KINGQUAD 400ASI - 2018 года выпуска`
-
№АртикулНазвание
-
129111-38F10 SHAFT, DRIVE (NT:16/24)SHAFT, DRIVE (NT:16/24)
-
212281-87J00 SEAL, DRIVE SHAFT R OILSEAL, DRIVE SHAFT R OIL
-
329120-27H10 SHAFT, SUB T/M OUTPUT (NT:42)SHAFT, SUB T/M OUTPUT (NT:42)
-
429131-27H00 SHAFT, SUB T/M COUNTERSHAFT, SUB T/M COUNTER
-
529311-09F51 GEAR, SUB T/M DRIVEN LOW (NT:40)GEAR, SUB T/M DRIVEN LOW (NT:40)
-
629315-09F51 BUSH, SUB T/M DRIVENBUSH, SUB T/M DRIVEN
-
729321-09F51 GEAR, SUB T/M DRIVEN HIGH (NT:33)GEAR, SUB T/M DRIVEN HIGH (NT:33)
-
829331-38F10 DOG, SUB T/M SELECTDOG, SUB T/M SELECT
-
929332-38F10 SPACER, SUB T/M SELECTSPACER, SUB T/M SELECT
-
1029411-38F00 GEAR, SUB T/M DRIVE NO.2 (NT:19)GEAR, SUB T/M DRIVE NO.2 (NT:19)
-
1108331-31259 CIRCLIPCIRCLIP
-
1209167-25017 LOCK WASHERLOCK WASHER
-
1309167-25013 LOCK WASHER (25.1X41X1.5)LOCK WASHER (25.1X41X1.5)
-
1409169-25001 WASHERWASHER
-
1509180-25097 SPACER (25X30X7)SPACER (25X30X7)
-
1609181-20195 SHIM (20X30X1)SHIM (20X30X1)
-
1709181-25251 SHIM (25X40X1)SHIM (25X40X1)
-
1809263-30018 BEARING (30X35X12.8)BEARING (30X35X12.8)
-
1908113-62060 BEARINGBEARING
-
2009380-25003 CIRCLIPCIRCLIP
-
2109262-20069 BEARING (20X47X14)BEARING (20X47X14)
-
2209262-20073 BEARING (20X52X15)BEARING (20X52X15)
-
2309262-25003 BEARING (25X52X15)BEARING (25X52X15)
-
2409262-35038 BEARING (35X72X17)BEARING (35X72X17)
-
2509262-25003 BEARING (25X52X15)BEARING (25X52X15)
-
2609181-25059 SHIM (25X34X1)SHIM (25X34X1)
-
2709283-25076 OIL SEAL (25X45X5)OIL SEAL (25X45X5)
-
2824741-21A00 RETAINER, BEARINGRETAINER, BEARING
-
2909125-06122 SCREW (6X12)SCREW (6X12)
-
3024551-38F00 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
-
3124561-27H00 GEAR, REVERSE IDLE (NT:28)GEAR, REVERSE IDLE (NT:28)
-
3224571-27H00 GEAR, REVERSE DRIVEN (NT:34)GEAR, REVERSE DRIVEN (NT:34)
-
3324581-27H00 DOG, REVERSE GEAR SLIDINGDOG, REVERSE GEAR SLIDING
-
3424582-38F10 SPACER, REVERSE SLIDINGSPACER, REVERSE SLIDING
-
3524562-27H00 SPACER, REVERSE IDLE GEARSPACER, REVERSE IDLE GEAR
-
3629315-09F51 BUSH, REVERSE DRIVEN GEARBUSH, REVERSE DRIVEN GEAR
-
3709167-25017 LOCK WASHERLOCK WASHER
-
3809263-20060 BEARING (20X24X13)BEARING (20X24X13)
-
3909181-20195 SHIM (20X30X1)SHIM (20X30X1)
