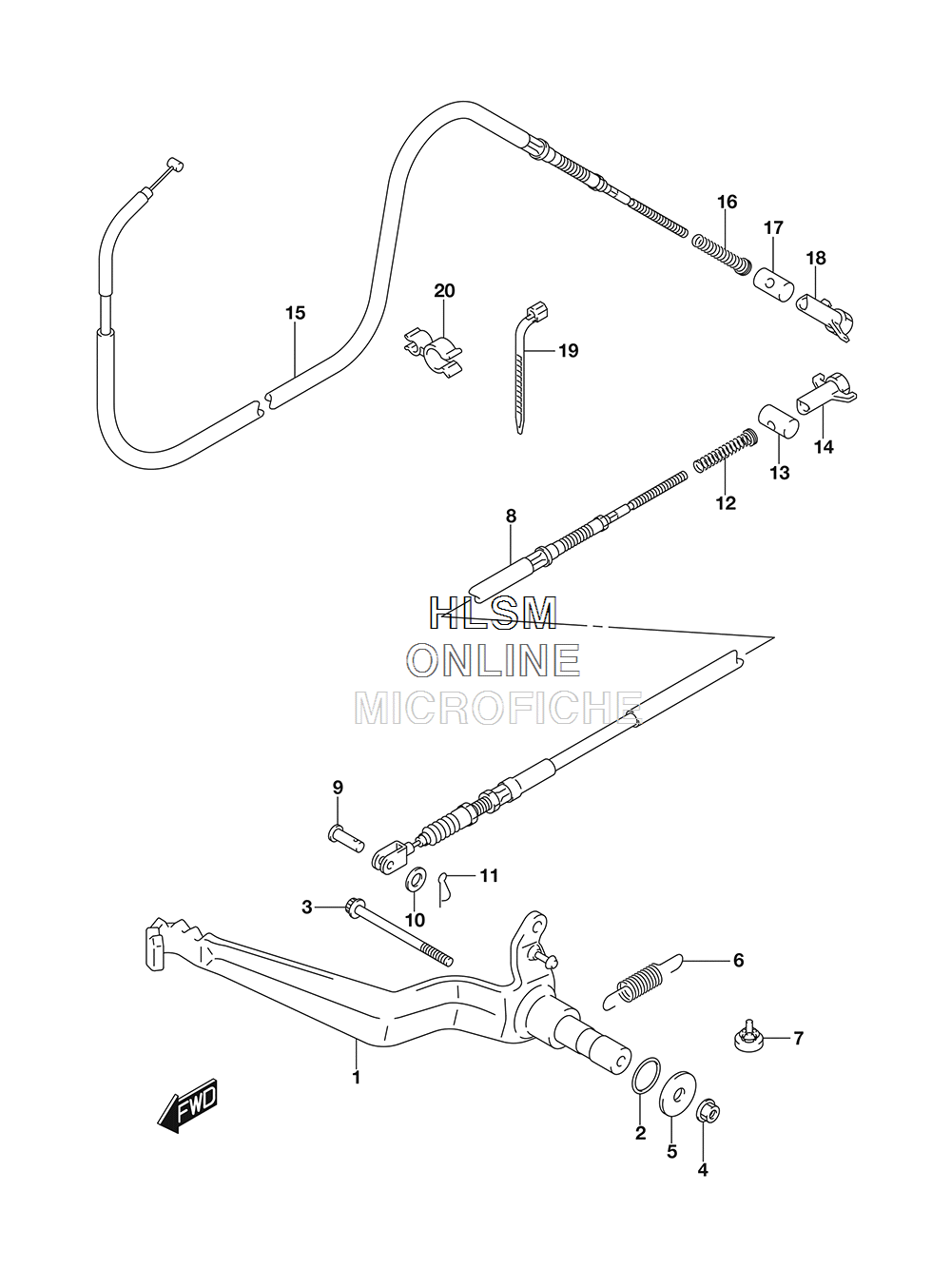

BRAKE - REAR для Suzuki LT-A400FL8 KINGQUAD 400ASI - 2018 года выпуска
-
№АртикулНазвание
-
143110-27H00 PEDAL, BRAKEPEDAL, BRAKE
-
209280-17002 O RING (D:2.4,ID:16.8)O RING (D:2.4,ID:16.8)
-
301550-0685A BOLTBOLT
-
408319-3106A NUTNUT
-
509160-06136 WASHER (6.5X28X1.6)WASHER (6.5X28X1.6)
-
609443-12019 SPRINGSPRING
-
709321-08022 CUSHIONCUSHION
-
858510-27H10 CABLE, REAR BRAKECABLE, REAR BRAKE
-
909200-05001 PIN (5.8X17.5)PIN (5.8X17.5)
-
1008322-0106B WASHERWASHER
-
1109385-06012 CLIPCLIP
-
1209440-08042 SPRINGSPRING
-
1309209-13006 PINPIN
-
1409150-06015 NUTNUT
-
1558810-27H10 CABLE, PARKING BRAKECABLE, PARKING BRAKE
-
1609440-08042 SPRINGSPRING
-
1709209-13006 PINPIN
-
1809150-06015 NUTNUT
-
1909407-14403 CLAMP (L:125)CLAMP (L:125)
-
2009408-00056 CLIPCLIP
