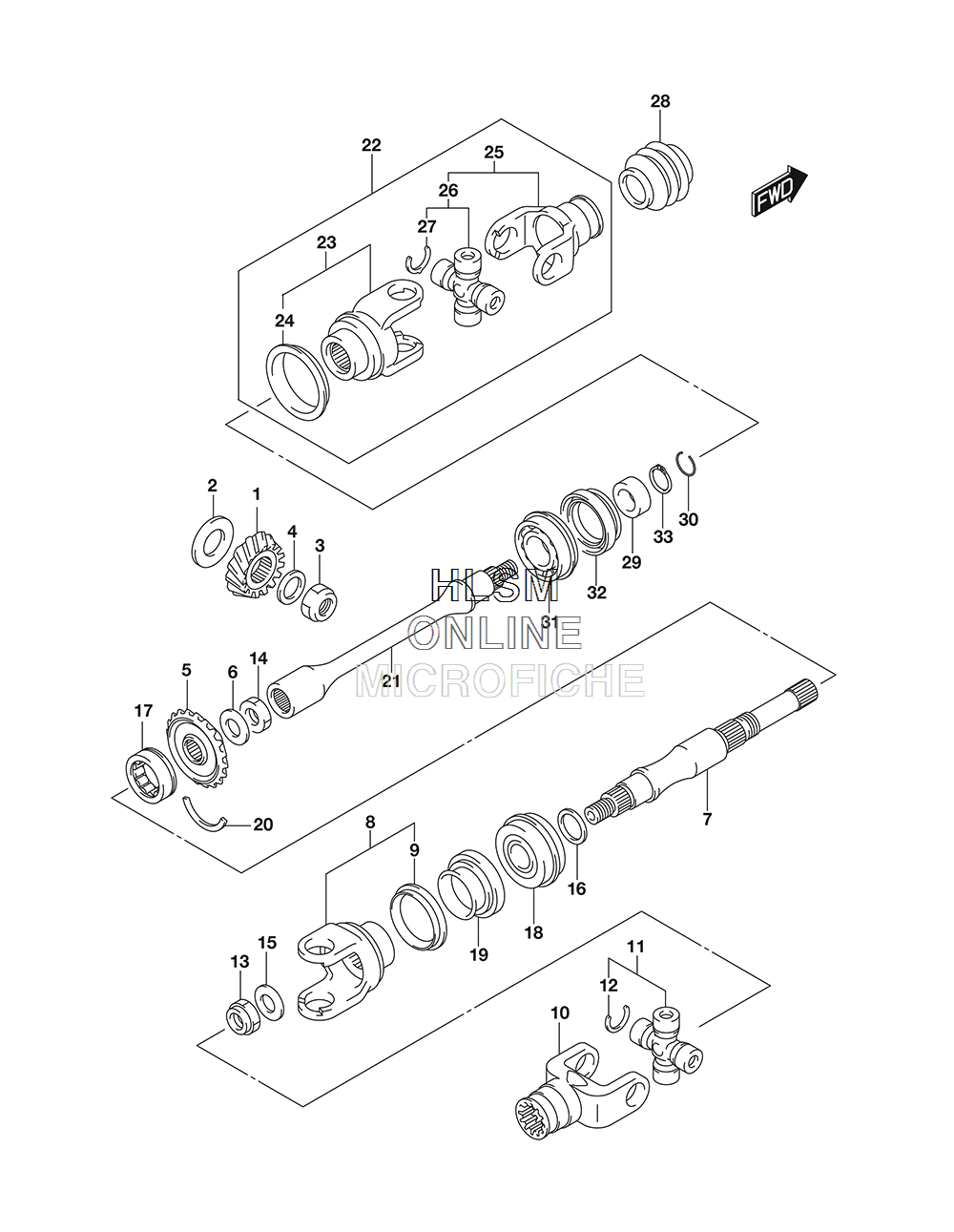

SECONDARY DRIVE для Suzuki LT-A400FL8 KINGQUAD 400ASI - 2018 года выпуска

№

Артикул

Название
1

24911-38F00 GEAR, SEC DRIVE BEVEL (NT:17)

GEAR, SEC DRIVE BEVEL (NT:17)
2

24935-03811 SHIM SET, SEC DRIVE BEVEL GEAR

SHIM SET, SEC DRIVE BEVEL GEAR
3

09140-20012 NUT

NUT
4

09181-20223 SHIM (20X32X1)

SHIM (20X32X1)
5

24921-38F00 GEAR, SEC DRIVEN BEVEL (NT:21)

GEAR, SEC DRIVEN BEVEL (NT:21)
6

08211-22365 WASHER

WASHER
7

24971-27H00 SHAFT, SEC DRIVEN OUTPUT REAR

SHAFT, SEC DRIVEN OUTPUT REAR
8

27130-03G00 YOKE, REAR DRIVE OUTPUT

YOKE, REAR DRIVE OUTPUT
9

27592-38F00 ...PLATE, OUTPUT

...PLATE, OUTPUT
10

27140-27H01 OKE, PROP SHAFT JOINT

OKE, PROP SHAFT JOINT
11

27200-19810 JOINT SET, UNIVERSAL

JOINT SET, UNIVERSAL
12

09380-20016 ...CIRCLIP

...CIRCLIP
13

09159-16003 NUT

NUT
14

09159-22005 NUT

NUT
15

09160-16026 WASHER (16X30X3)

WASHER (16X30X3)
16

24945-03811 SHIM, SEC DRIVEN

SHIM, SEC DRIVEN
17

09263-30050 BEARING (30X50X17)

BEARING (30X50X17)
18

09267-25014 BEARING (25X52X20.6)

BEARING (25X52X20.6)
19

09283-34008 OIL SEAL (34X52X9)

OIL SEAL (34X52X9)
20

09390-50002 C RING

C RING
21

24961-27H50 SHAFT, SEC DRIVEN OUTPUT FRONT

SHAFT, SEC DRIVEN OUTPUT FRONT
22

27100-27H01 YOKE ASSY, UNIVERSAL JOINT

YOKE ASSY, UNIVERSAL JOINT
23

27130-27H01 ...YOKE, FRONT DRIVE OUTPUT

...YOKE, FRONT DRIVE OUTPUT
24

27592-38F00 ......PLATE, OUTPUT YOKE

......PLATE, OUTPUT YOKE
25

27140-27H01 ...YOKE, PROP SHAFT FRONT

...YOKE, PROP SHAFT FRONT
26

27200-19810 ...JOINT SET, UNIVERSAL

...JOINT SET, UNIVERSAL
27

09380-20016 ......CIRCLIP

......CIRCLIP
28

27153-27H10 BOOT, PROPELLER SHAFT

BOOT, PROPELLER SHAFT
29

27591-27H00 COLLAR, FRONT DRIVE OUTPUT

COLLAR, FRONT DRIVE OUTPUT
30

09381-19005 CIRCLIP

CIRCLIP
31

09262-25131 BEARING (25X52X15)

BEARING (25X52X15)
32

09283-34008 OIL SEAL (34X52X9)

OIL SEAL (34X52X9)
