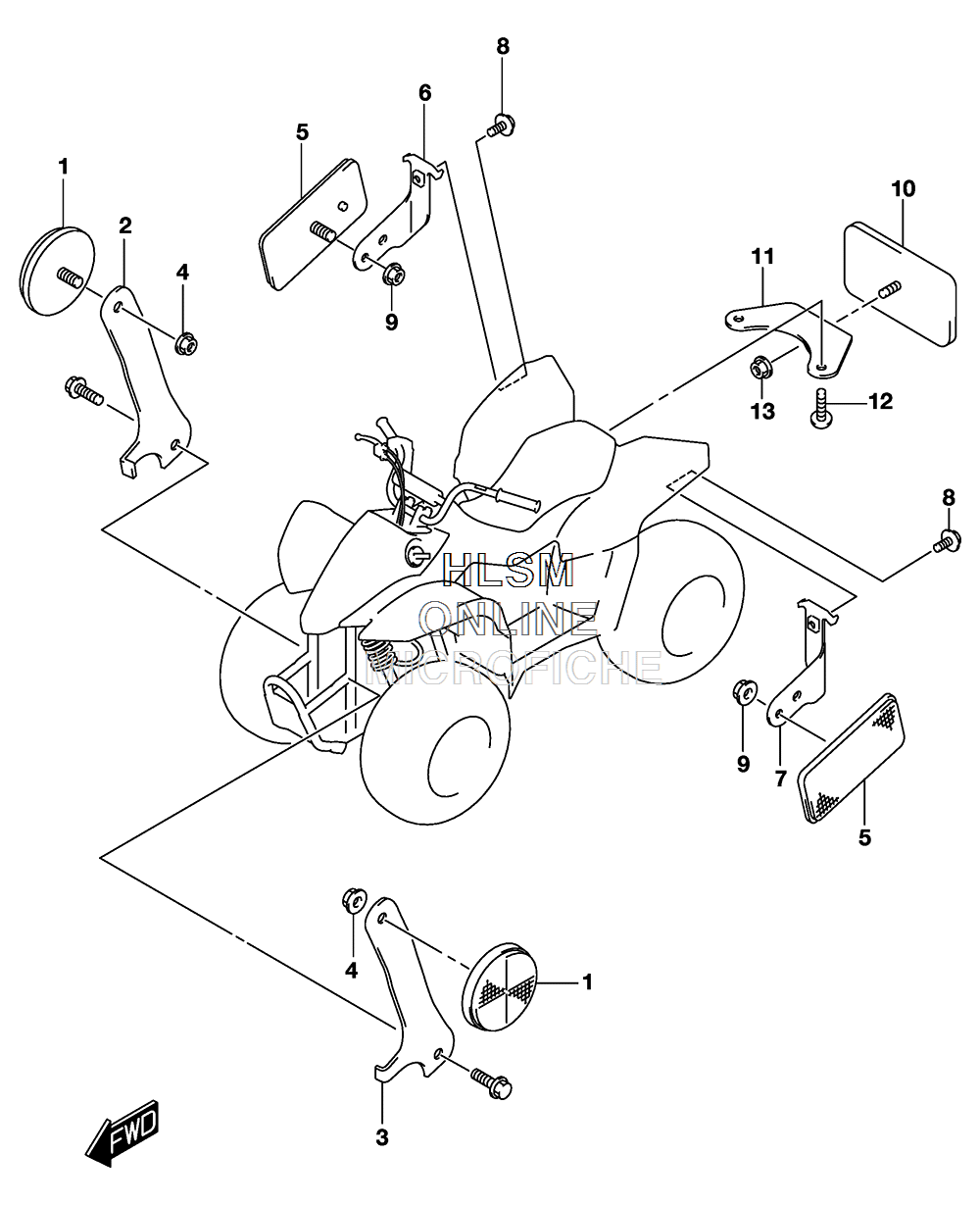

REFLECTOR (CANADA) для Suzuki QUADSPORT Z90 [LT-Z90] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    35950-14A11 REFLEX REFLECTOR, FRONT SIDE
    REFLEX REFLECTOR, FRONT SIDE
  • 2
    35956-08H00 BRACKET, FRONT SIDE REAR RIGHT HAND
    BRACKET, FRONT SIDE REAR RIGHT HAND
  • 3
    35957-08H00 BRACKET, FRONT SIDE REAR LEFT HAND
    BRACKET, FRONT SIDE REAR LEFT HAND
  • 4
    08316-1005A NUT, FRONT SIDE RR
    NUT, FRONT SIDE RR
  • 5
    35970-07F01 REFLECTOR ASSY, REAR SIDE
    REFLECTOR ASSY, REAR SIDE
  • 6
    35975-08H00 BRACKET, REAR SIDE RIGHT HAND
    BRACKET, REAR SIDE RIGHT HAND
  • 7
    35976-08H00 BRACKET, REAR SIDE LEFT HAND
    BRACKET, REAR SIDE LEFT HAND
  • 8
    09111-06088 BOLT (6X13.5)
    BOLT (6X13.5)
  • 9
    08316-1005B NUT
    NUT
  • 10
    35970-07F01 REFLECTOR, REAR
    REFLECTOR, REAR
  • 11
    35974-08H00 BRACKET, REAR RR
    BRACKET, REAR RR
  • 12
    03541-0516A SCREW, REAR BRACKET
    SCREW, REAR BRACKET
  • 13
    08316-1005B NUT, REAR RR
    NUT, REAR RR
