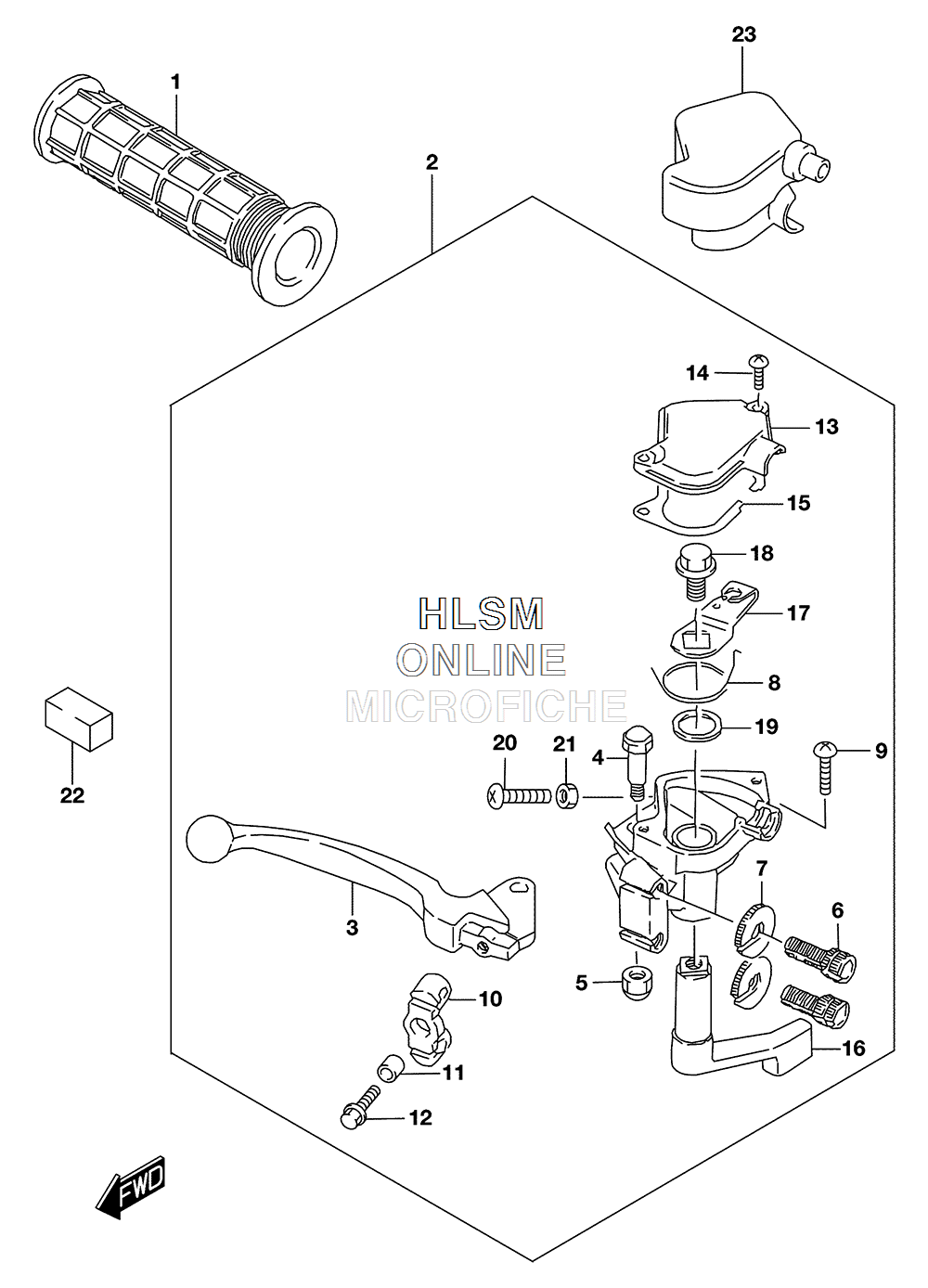

HANDLEBAR - LEVERS / SWITCHES (RIGHT) для Suzuki QUADSPORT Z90 [LT-Z90] - 2017 года выпуска`
-
№АртикулНазвание
-
157211-21G10 GRIP, HANDLEGRIP, HANDLE
-
257300-40B21 LEVER ASSY, FRONT BRAKELEVER ASSY, FRONT BRAKE
-
357421-40B00 ...LEVER, FRONT BRAKE...LEVER, FRONT BRAKE
-
457431-49110 ...BOLT, BRAKE LEVER PIVOT...BOLT, BRAKE LEVER PIVOT
-
508319-2106B ...NUT...NUT
-
657441-26010 ...ADJUSTER, BRAKE CABLE...ADJUSTER, BRAKE CABLE
-
757442-44400 ...NUT, CABLE ADJUSTER LOCK...NUT, CABLE ADJUSTER LOCK
-
857159-40B00 ...SPRING, THROTTLE LEVER...SPRING, THROTTLE LEVER
-
902112-0620B ...SCREW...SCREW
-
1057396-40B00 ...EQUALIZER, BRAKE CABLE...EQUALIZER, BRAKE CABLE
-
1109180-06194 ...SPACER (6.2X8.3X6.9)...SPACER (6.2X8.3X6.9)
-
1201550-0616B ...BOLT...BOLT
-
1357121-40B00 ...CAP, THROTTLE CASE...CAP, THROTTLE CASE
-
1402112-0410B ...SCREW...SCREW
-
1557157-40B01 ...GASKET, THROTTLE CASE...GASKET, THROTTLE CASE
-
1657151-08H00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
1757158-40B00 ...LEVER, THROTTLE CABLE...LEVER, THROTTLE CABLE
-
1801550-0812B ...BOLT...BOLT
-
1909168-14015 ...GASKET (14X20X1.5)...GASKET (14X20X1.5)
-
2009125-05066 ...SCREW (5X25)...SCREW (5X25)
-
2109140-05006 ...NUT...NUT
-
2257338-40B00 SEALSEAL
-
2357339-40B10 COVER, THROTTLE CASECOVER, THROTTLE CASE
