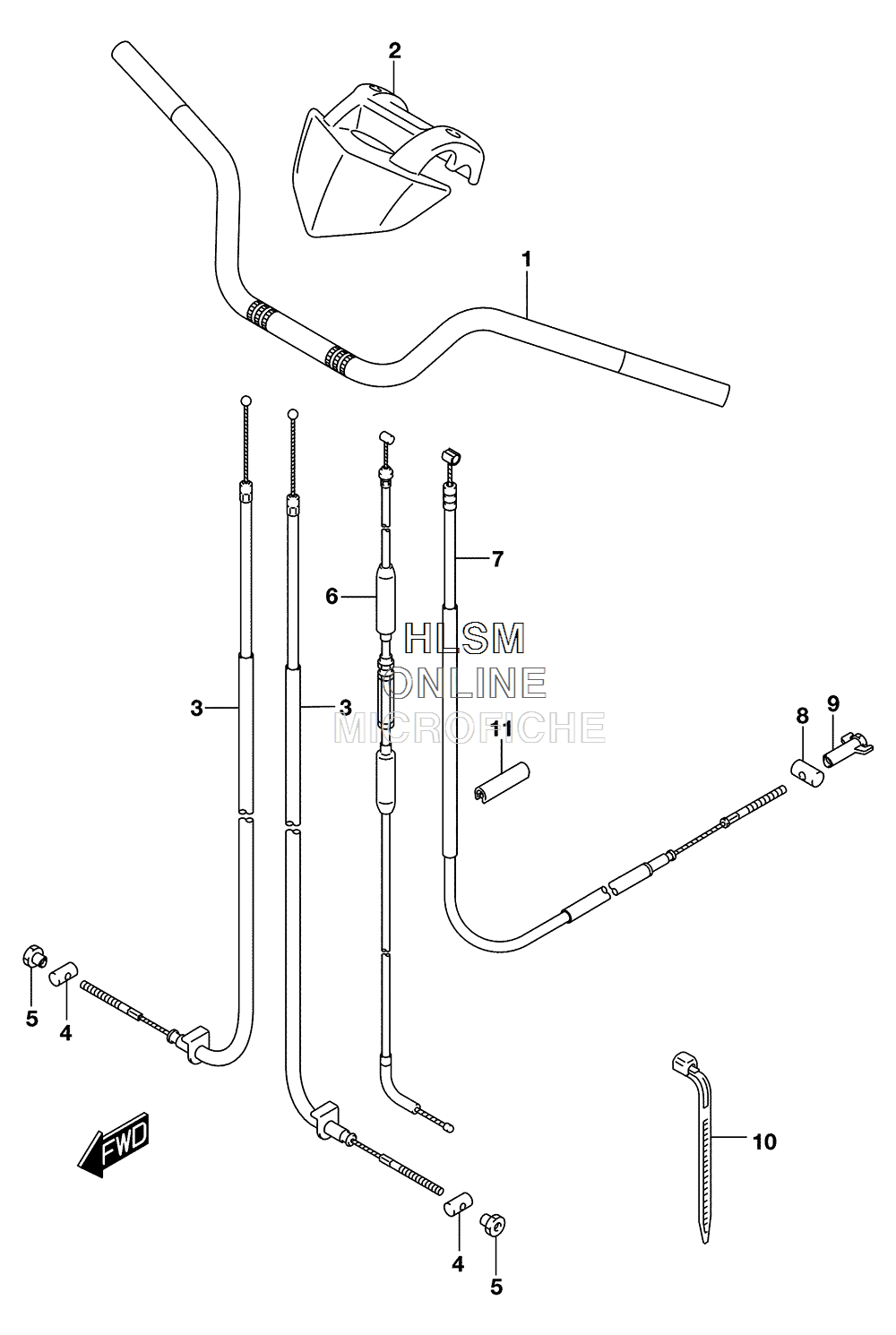

HANDLEBAR W/ CABLES для Suzuki QUADSPORT Z90 [LT-Z90] - 2017 года выпуска`
-
№АртикулНазвание
-
156110-08H00-13L HANDLEBAR (SILVER)HANDLEBAR (SILVER)
-
256171-08H00-291 COVER, HEAD (BLACK)COVER, HEAD (BLACK)
-
358110-08H00 CABLE, FRONT BRAKECABLE, FRONT BRAKE
-
409209-10001 PIN (10X19)PIN (10X19)
-
509150-05101 NUTNUT
-
658300-08H02 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
758510-08H00 CABLE, REAR BRAKECABLE, REAR BRAKE
-
809209-13006 PINPIN
-
909150-06015 NUTNUT
-
1009407-14403 CLAMP (L:125)CLAMP (L:125)
-
1158627-08H00 PROTECTOR, REAR BRAKE CABLEPROTECTOR, REAR BRAKE CABLE
