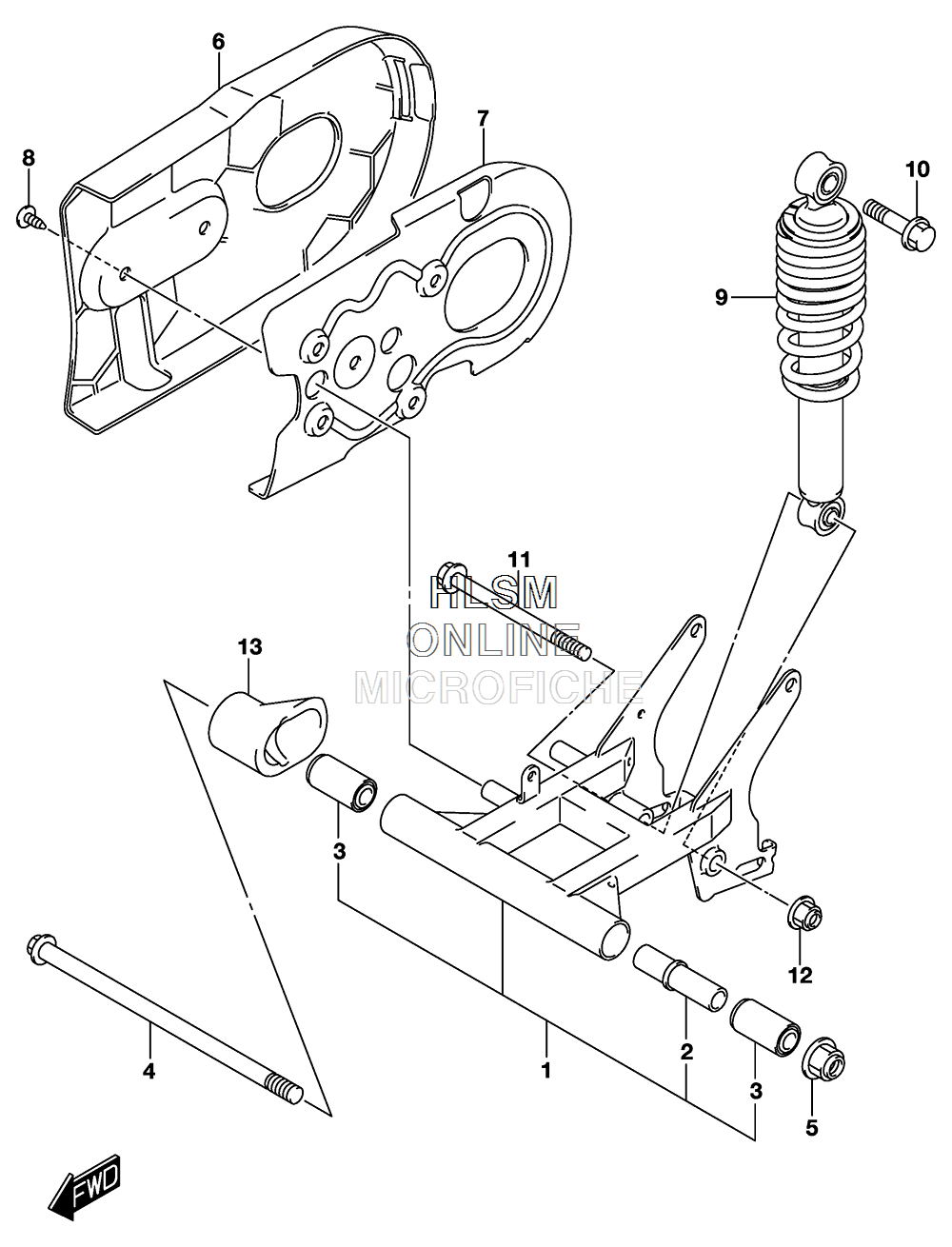

SUSPENSION - REAR SWING ARM для Suzuki QUADSPORT Z50 [LT-Z50] - 2017 года выпуска
-
№АртикулНазвание
-
161000-43G00-019 SWINGINGARM ASSY, REAR (BLACK)SWINGINGARM ASSY, REAR (BLACK)
-
261280-43G00 ...SPACER...SPACER
-
309319-12018 ...BUSH...BUSH
-
461211-43G00 SHAFT, PIVOTSHAFT, PIVOT
-
508319-3112A NUTNUT
-
661311-43G00 CASE, CHAINCASE, CHAIN
-
761313-43G00 CASE, CHAIN INNER UPPERCASE, CHAIN INNER UPPER
-
809139-06083 SCREWSCREW
-
962100-43FK0-YKS ABSORBER ASSY, REAR SHOCK (RED)ABSORBER ASSY, REAR SHOCK (RED)
-
1009103-10019 BOLT, UPPER (10X37)BOLT, UPPER (10X37)
-
1109103-10141 BOLT, LOWER (10X125)BOLT, LOWER (10X125)
-
1208319-3110B NUTNUT
-
1361273-43F01 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
