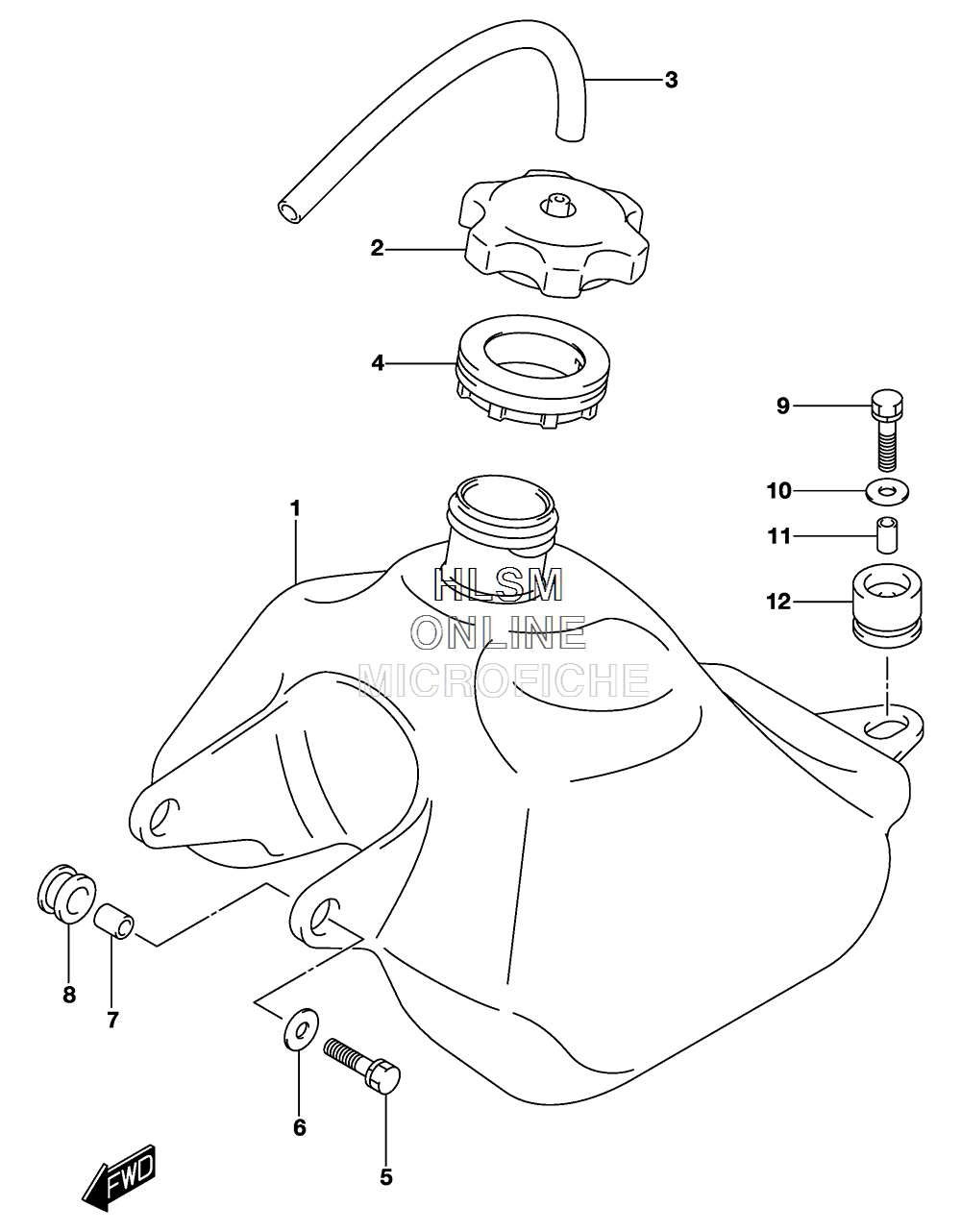

FUEL TANK для Suzuki QUADSPORT Z50 [LT-Z50] - 2017 года выпуска
-
№АртикулНазвание
-
144100-43GA0 TANK ASSY, FUELTANK ASSY, FUEL
-
244200-09AA0 CAP ASSY, FUEL TANKCAP ASSY, FUEL TANK
-
344411-08H00 HOSE,FUEL TANK BREATHER (L:600->260)HOSE,FUEL TANK BREATHER (L:600->260)
-
444261-43GA0 RUBBER, FUEL INLETRUBBER, FUEL INLET
-
501550-0625A BOLT, FRONTBOLT, FRONT
-
609160-06132 WASHERWASHER
-
709180-06289 SPACERSPACER
-
809320-10008 CUSHION, FRONTCUSHION, FRONT
-
901550-0625A BOLT, REARBOLT, REAR
-
1009160-06132 WASHERWASHER
-
1109180-06267 SPACERSPACER
-
1244541-43F00 CUSHION, REARCUSHION, REAR
