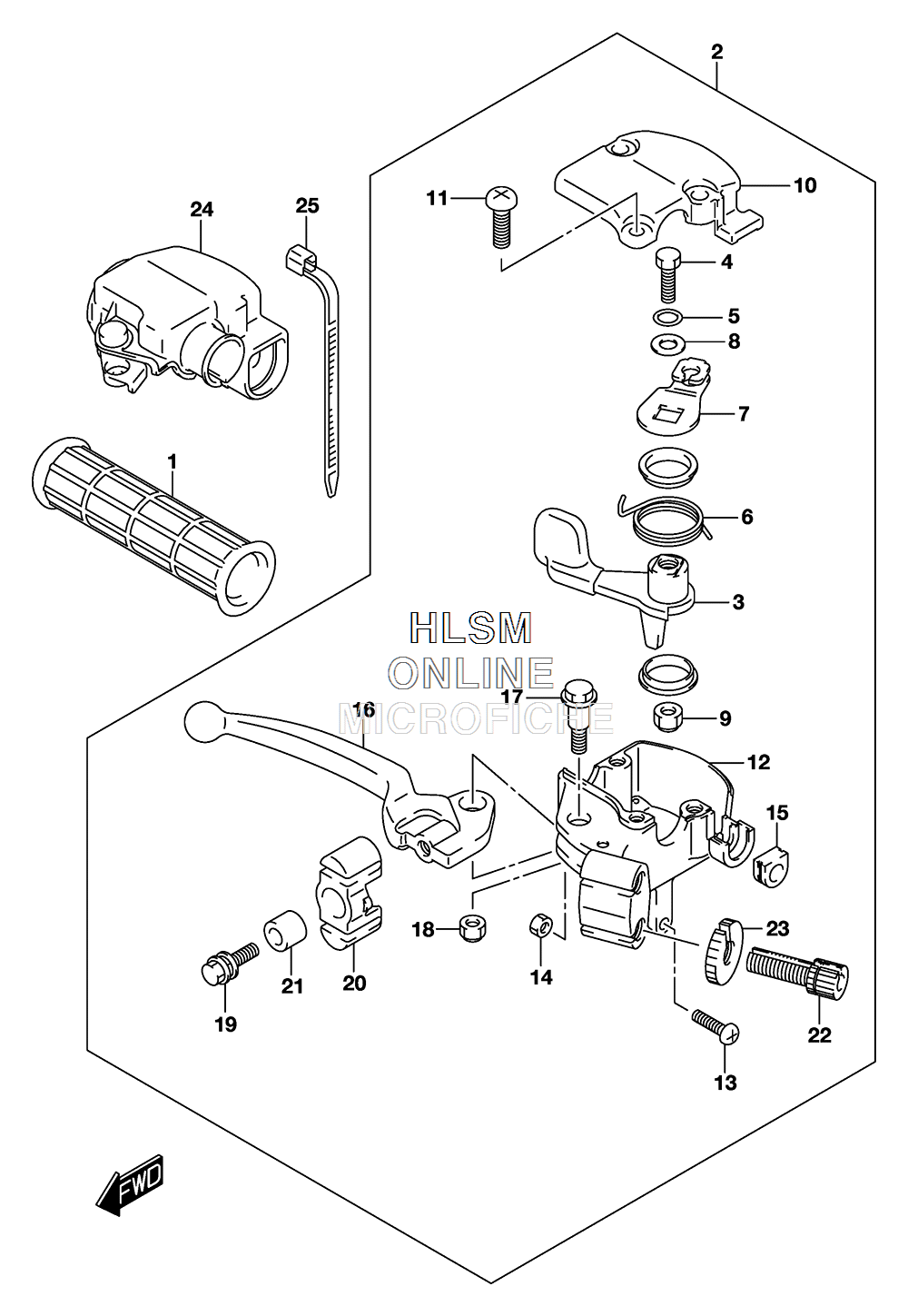

HANDLEBAR - LEVERS / SWITCHES (RIGHT) для Suzuki QUADSPORT Z50 [LT-Z50] - 2017 года выпуска`
-
№АртикулНазвание
-
157211-04600 GRIPGRIP
-
257300-43F00 LEVER ASSY, FRONT BRAKELEVER ASSY, FRONT BRAKE
-
357112-43F00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
401550-0620B ...BOLT...BOLT
-
557136-43F00 ...BUSH...BUSH
-
657134-43F00 ...SPRING, RETURN...SPRING, RETURN
-
757114-43F00 ...ARM, THROTTLE LEVER...ARM, THROTTLE LEVER
-
809160-06028 ...WASHER...WASHER
-
908319-2106B ...NUT...NUT
-
1057121-43F00 ...CASE, UPPER...CASE, UPPER
-
1102112-0516B ...SCREW...SCREW
-
1257131-43F00 ...CASE, LOWER...CASE, LOWER
-
1302112-0520B ...SCREW...SCREW
-
1408310-0005A ...NUT...NUT
-
1558333-04200 ...DUST SEAL...DUST SEAL
-
1657421-43F00 ...LEVER, FRONT BRAKE...LEVER, FRONT BRAKE
-
1757431-43F00 ...BOLT, PIVOT...BOLT, PIVOT
-
1808319-2106A ...NUT...NUT
-
1901550-0616B ...BOLT...BOLT
-
2057396-43F00 ...EQUALIZER...EQUALIZER
-
2157397-43F00 ...SPACER...SPACER
-
2257441-43F00 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
2357442-43F00 ...NUT...NUT
-
2457339-43G00 COVER, THROTTLE CASECOVER, THROTTLE CASE
-
2509407-14407 CLAMP (L:145)CLAMP (L:145)
