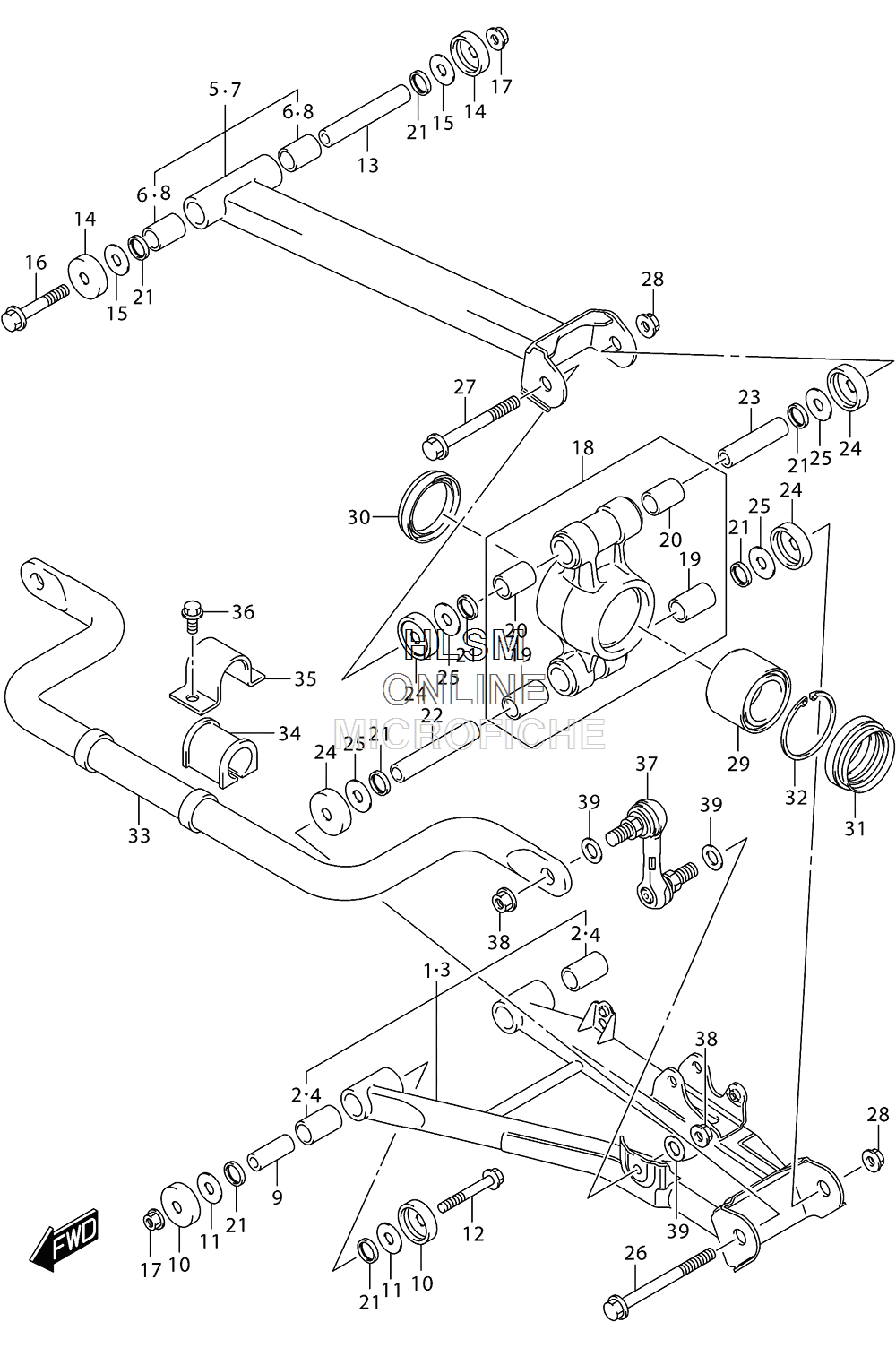

SUSPENSION - REAR ARM для Suzuki KINGQUAD 750AXi POWER STEERING SPECIAL EDITION [LT-A750XPZ] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    61510-31830 ARM SET, REAR SUSPENSION LOW RIGHT HAND
    ARM SET, REAR SUSPENSION LOW RIGHT HAND
  • 2
    51236-31G00 ...BUSH, REAR SPNSN ARM LOWER
    ...BUSH, REAR SPNSN ARM LOWER
  • 3
    61520-31830 ARM SET, REAR SUSPENSION LOW LEFT HAND
    ARM SET, REAR SUSPENSION LOW LEFT HAND
  • 4
    51236-31G00 ...BUSH, REAR SPNSN ARM LOWER
    ...BUSH, REAR SPNSN ARM LOWER
  • 5
    61530-31830 ARM SET, REAR SUSPENSION UP RIGHT HAND
    ARM SET, REAR SUSPENSION UP RIGHT HAND
  • 6
    51236-31G00 ...BUSH, REAR SPNSN ARM UPPER
    ...BUSH, REAR SPNSN ARM UPPER
  • 7
    61540-31830 ARM SET, REAR SUSPENSION UP LEFT HAND
    ARM SET, REAR SUSPENSION UP LEFT HAND
  • 8
    51236-31G00 ...BUSH, REAR SPNSN ARM UPPER
    ...BUSH, REAR SPNSN ARM UPPER
  • 9
    61552-31G10 SPACER, REAR SPNSN ARM LOWER
    SPACER, REAR SPNSN ARM LOWER
  • 10
    51255-31G10 SEAL, REAR SPNSN ARM LOWER DUST
    SEAL, REAR SPNSN ARM LOWER DUST
  • 11
    08211-10281 WASHER
    WASHER
  • 12
    09103-10392 BOLT (10X70)
    BOLT (10X70)
  • 13
    61554-31G10 SPACER, REAR SPNSN ARM UPPER
    SPACER, REAR SPNSN ARM UPPER
  • 14
    51255-31G00 SEAL, REAR SPNSN ARM UPPER DUST
    SEAL, REAR SPNSN ARM UPPER DUST
  • 15
    08211-10281 WASHER
    WASHER
  • 16
    09103-10388 BOLT (10X120)
    BOLT (10X120)
  • 17
    09159-10115 NUT
    NUT
  • 18
    61600-31830 KNUCKLE SET, REAR SUSPENSION
    KNUCKLE SET, REAR SUSPENSION
  • 19
    51236-31G00 ...BUSH, REAR KNUCKLE LOWER
    ...BUSH, REAR KNUCKLE LOWER
  • 20
    61551-31G10 ...BUSH, REAR KNUCKLE UPPER
    ...BUSH, REAR KNUCKLE UPPER
  • 21
    52454-45G00 SEAL, REAR KNUCKLE INNER DUST
    SEAL, REAR KNUCKLE INNER DUST
  • 22
    61554-31G10 SPACER, REAR KNUCKLE LOWER
    SPACER, REAR KNUCKLE LOWER
  • 23
    61553-31G20 SPACER, REAR KNUCKLE UPPER
    SPACER, REAR KNUCKLE UPPER
  • 24
    51255-18900 SEAL, REAR KNUCKLE DUST
    SEAL, REAR KNUCKLE DUST
  • 25
    08211-10281 WASHER
    WASHER
  • 26
    09103-10388 BOLT (10X120)
    BOLT (10X120)
  • 27
    09103-10387 BOLT (10X96)
    BOLT (10X96)
  • 28
    09159-10115 NUT
    NUT
  • 29
    43440-58J00 BEARING, REAR HUB
    BEARING, REAR HUB
  • 30
    61615-31G00 SEAL, REAR HUB INNER DUST
    SEAL, REAR HUB INNER DUST
  • 31
    61616-31G00 SEAL, REAR HUB OUTER DUST
    SEAL, REAR HUB OUTER DUST
  • 32
    08331-4162A CIRCLIP
    CIRCLIP
  • 33
    61651-31G30 BAR, REAR STABILIZER
    BAR, REAR STABILIZER
  • 34
    61652-31G20 BUSH, REAR STABILIZER
    BUSH, REAR STABILIZER
  • 35
    42415-66D00 PLATE, REAR STABILIZER
    PLATE, REAR STABILIZER
  • 36
    09103-08283 BOLT (8X16)
    BOLT (8X16)
  • 37
    61660-31G20 JOINT, REAR STABILIZER
    JOINT, REAR STABILIZER
  • 38
    09159-10223 NUT
    NUT
  • 39
    09160-10039 WASHER (10.5X22X2.3)
    WASHER (10.5X22X2.3)
