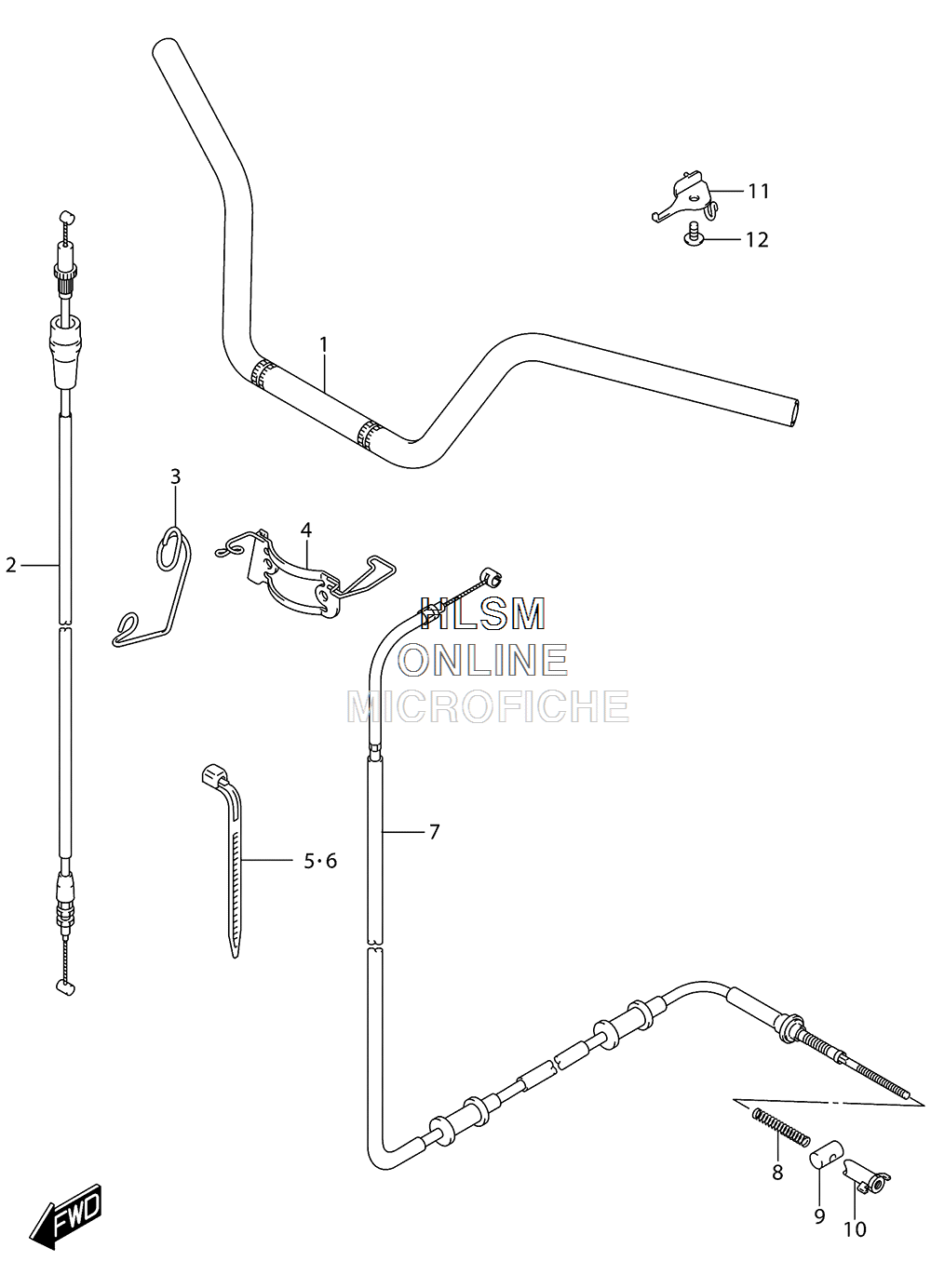

HANDLEBAR W/ CABLES для Suzuki KINGQUAD 750AXi POWER STEERING SPECIAL EDITION [LT-A750XPZ] - 2017 года выпуска`
-
№АртикулНазвание
-
156111-31G20 HANDLE BARHANDLE BAR
-
258300-31G20 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
358626-31G20 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
458620-31G20 GUIDE, CABLEGUIDE, CABLE
-
509407-18402 CLAMP (L:165)CLAMP (L:165)
-
609407-14403 CLAMP (L:125)CLAMP (L:125)
-
758810-31G30 CABLE, PARKING BRAKECABLE, PARKING BRAKE
-
809440-08042 SPRINGSPRING
-
909209-13006 PINPIN
-
1009150-06015 NUTNUT
-
1158620-31G10 GUIDE, PARKING CABLEGUIDE, PARKING CABLE
-
1203541-0616B SCREWSCREW
