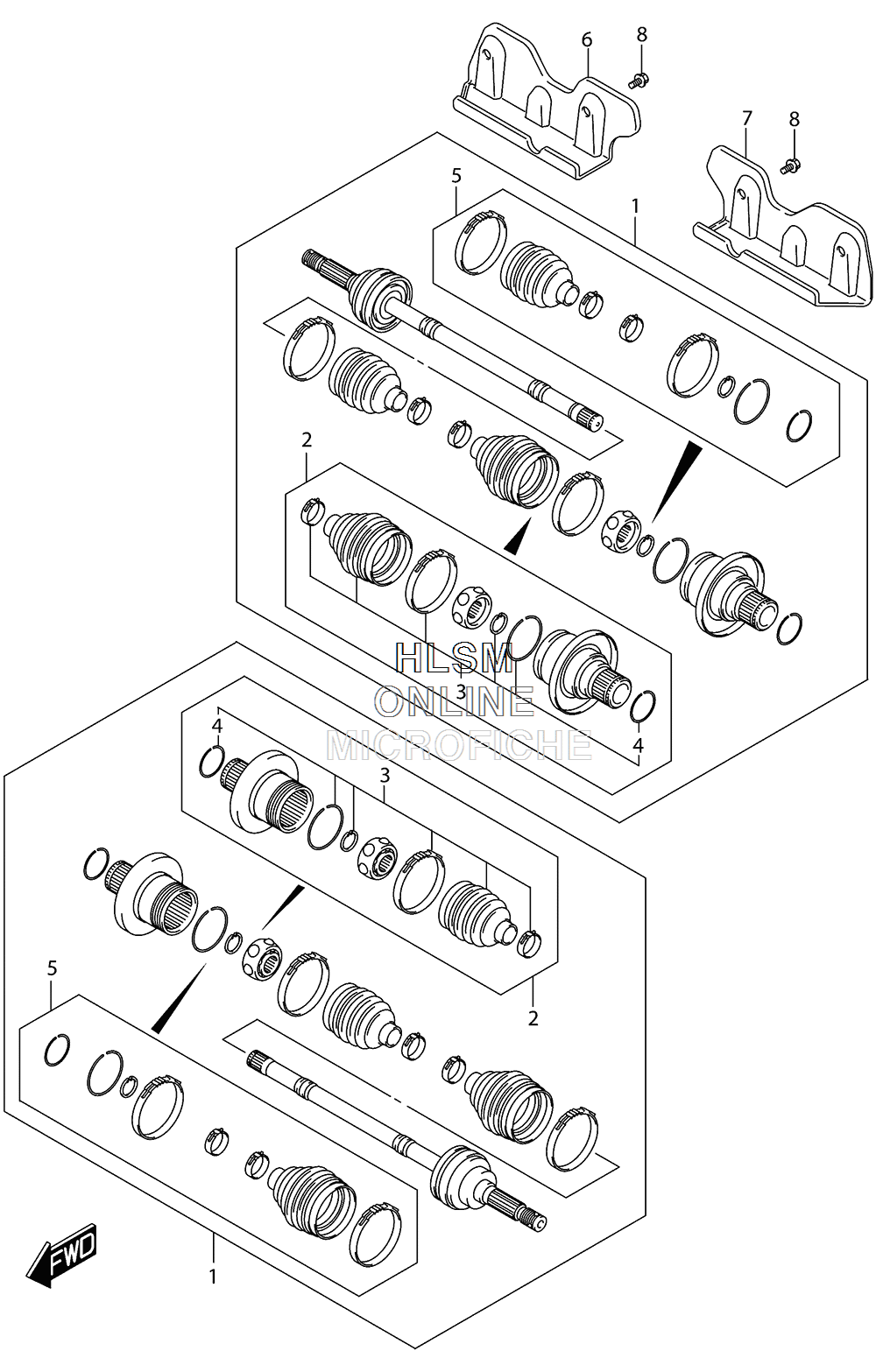

DRIVESHAFT - REAR для Suzuki KINGQUAD 750AXi POWER STEERING SPECIAL EDITION [LT-A750XPZ] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    64901-31G31 SHAFT ASSY, REAR DRIVE
    SHAFT ASSY, REAR DRIVE
  • 2
    64933-31G21 ...JOINT SET
    ...JOINT SET
  • 3
    64931-31G21 ......BOOT SET, INNER
    ......BOOT SET, INNER
  • 4
    54925-31G01 .........CIRCLIP
    .........CIRCLIP
  • 5
    64930-31G21 ...BOOT SET, OUTER
    ...BOOT SET, OUTER
  • 6
    64903-31G10 PROTECTOR, REAR DRIVE SHAFT RIGHT HAND
    PROTECTOR, REAR DRIVE SHAFT RIGHT HAND
  • 7
    64904-31G10 PROTECTOR, REAR DRIVE SHAFT LEFT HAND
    PROTECTOR, REAR DRIVE SHAFT LEFT HAND
  • 8
    09111-06085 BOLT (6X12)
    BOLT (6X12)
