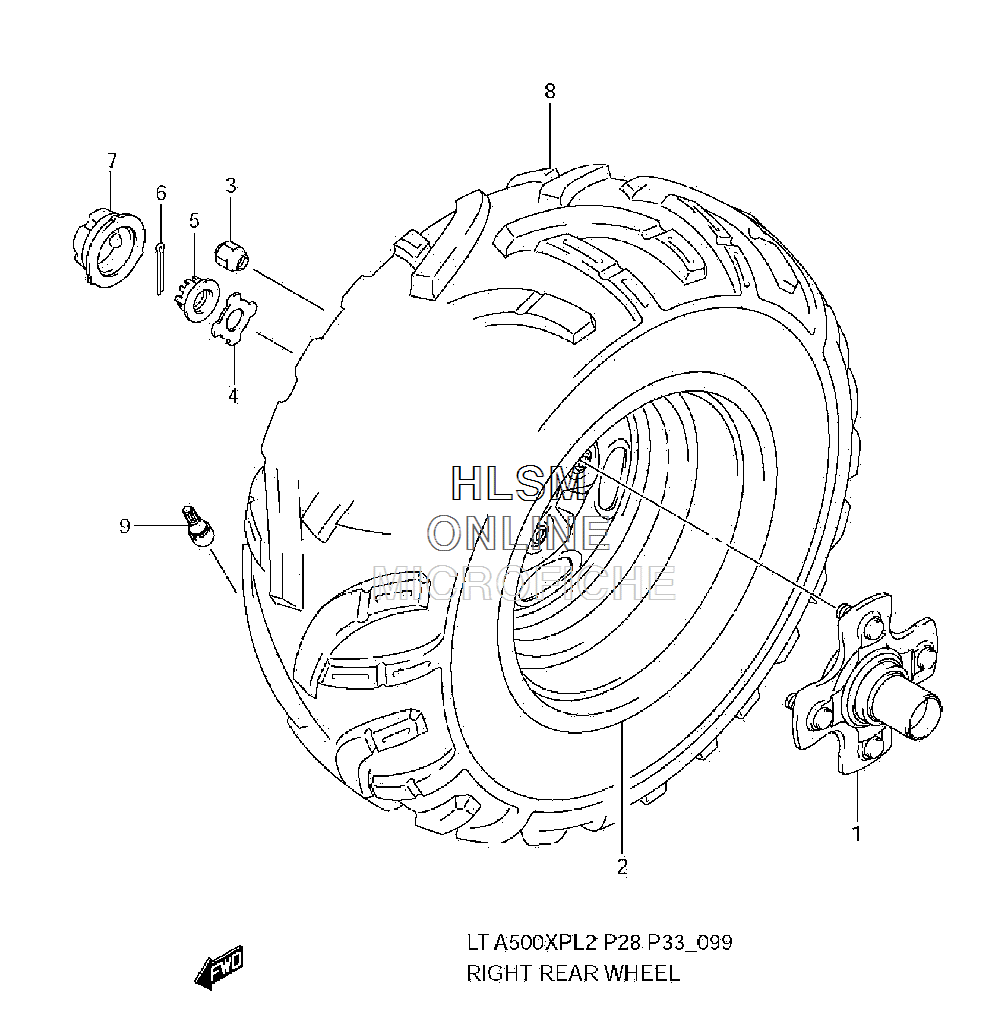

WHEEL - RIGHT REAR W/ AXLE для Suzuki LT-A500XP KingQuad 500AXi 4x4 Auto Power Steering - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    64110-31G01 HUB, REAR WHEEL RIGHT HAND
    HUB, REAR WHEEL RIGHT HAND
  • 2
    65310-31G20-YSR RIM, REAR WHEEL (12X7.5AT) (YSR - BLACK) (FOR YT9/YLG)
    RIM, REAR WHEEL (12X7.5AT) (YSR - BLACK) (FOR YT9/YLG)
  • 2
    65310-31G60-291 RIM, REAR WHEEL (12X7.5AT) (291 - BLACK) (FOR YT9/YLG)
    RIM, REAR WHEEL (12X7.5AT) (291 - BLACK) (FOR YT9/YLG)
  • 2
    65310-31G60-YUM RIM, REAR WHEEL (12X7.5AT) (YUM - RED) (FOR YLZ)
    RIM, REAR WHEEL (12X7.5AT) (YUM - RED) (FOR YLZ)
  • 3
    09159-10114 NUT
    NUT
  • 4
    64723-03G00 WASHER, HUB
    WASHER, HUB
  • 5
    09141-20008 NUT
    NUT
  • 6
    04111-4035A COTTER PIN
    COTTER PIN
  • 7
    54725-09F01 CAP, WHEEL CENTER
    CAP, WHEEL CENTER
  • 8
    65110-31G20 TIRE, REAR (AT25X10-12)
    TIRE, REAR (AT25X10-12)
  • 9
    43130-24A00 VALVE ASSY, WHEEL RIM (TR412)
    VALVE ASSY, WHEEL RIM (TR412)
