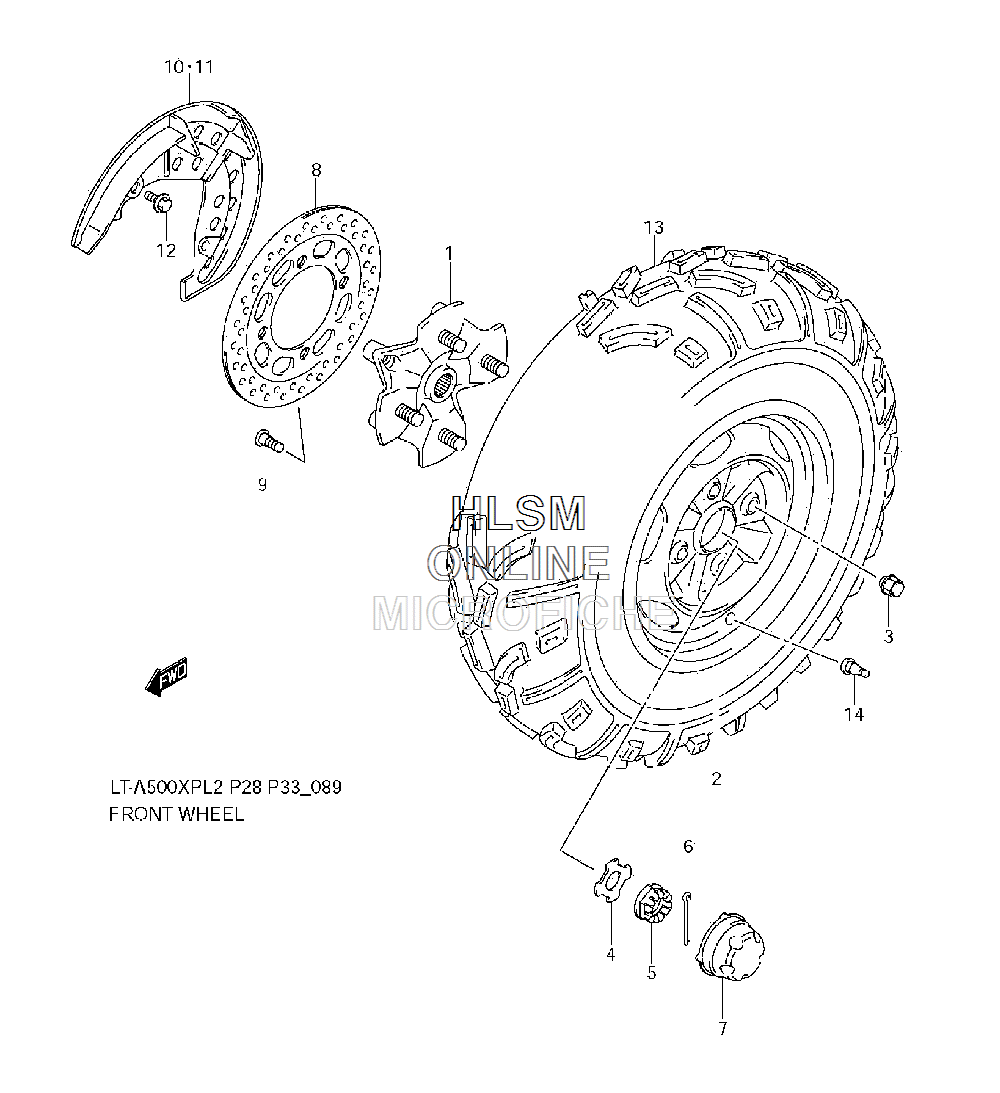

WHEEL - FRONT для Suzuki LT-A500XP KingQuad 500AXi 4x4 Auto Power Steering - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    54110-31G00 HUB, FRONT WHEEL
    HUB, FRONT WHEEL
  • 2
    55310-31G20-YSR RIM, FRONT WHEEL (12X6.0AT) (YSR - BLACK) (FOR YT9/YLG)
    RIM, FRONT WHEEL (12X6.0AT) (YSR - BLACK) (FOR YT9/YLG)
  • 2
    55310-31G60-291 RIM, FRONT WHEEL (12X6.0AT) (291 - BLACK) (FOR YT9/YLG)
    RIM, FRONT WHEEL (12X6.0AT) (291 - BLACK) (FOR YT9/YLG)
  • 2
    55310-31G60-YUM RIM, FRONT WHEEL (12X6.0AT) (YUM - RED) (FOR YLZ)
    RIM, FRONT WHEEL (12X6.0AT) (YUM - RED) (FOR YLZ)
  • 3
    09159-10114 NUT
    NUT
  • 4
    64723-09F00 WASHER, HUB
    WASHER, HUB
  • 5
    09141-18010 NUT
    NUT
  • 6
    04111-4035A COTTER PIN
    COTTER PIN
  • 7
    54725-09F01 CAP, WHEEL CENTER
    CAP, WHEEL CENTER
  • 8
    59211-31G20 DISC, FRONT BRAKE
    DISC, FRONT BRAKE
  • 9
    09106-08160 BOLT (8X21)
    BOLT (8X21)
  • 10
    59231-31G10 COVER, FRONT DISC RIGHT HAND
    COVER, FRONT DISC RIGHT HAND
  • 11
    59431-31G10 COVER, FRONT DISC LEFT HAND
    COVER, FRONT DISC LEFT HAND
  • 12
    09111-06085 BOLT (6X12)
    BOLT (6X12)
  • 13
    55110-31G20 TIRE, FRONT (AT25X8-12)
    TIRE, FRONT (AT25X8-12)
  • 14
    43130-24A00 VALVE ASSY, WHEEL RIM (TR412)
    VALVE ASSY, WHEEL RIM (TR412)
