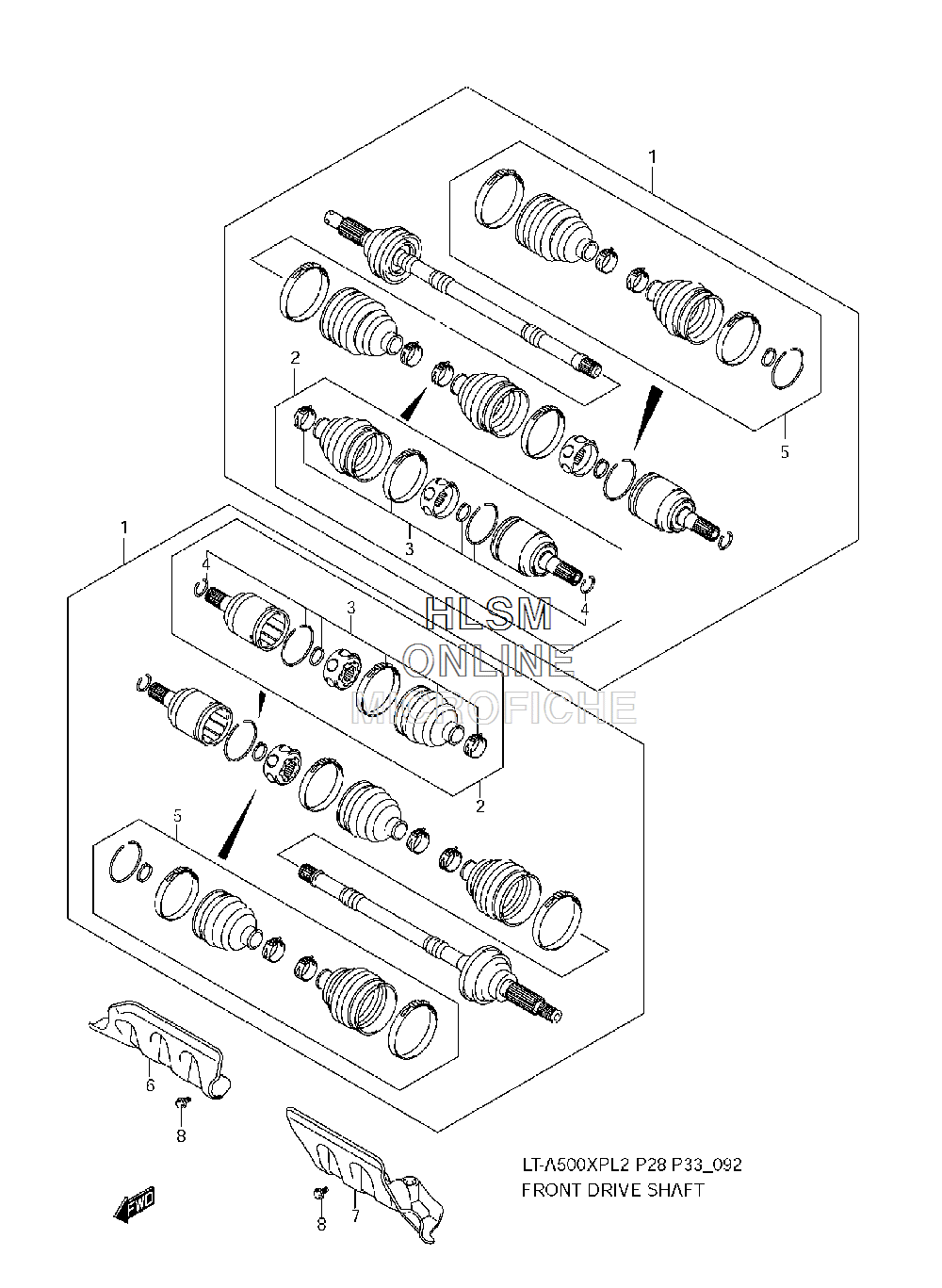

DRIVE SHAFT - FRONT для Suzuki LT-A500XP KingQuad 500AXi 4x4 Auto Power Steering - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    54901-31G30 SHAFT ASSY, FRONT DRIVE (INCL. 2-5)
    SHAFT ASSY, FRONT DRIVE (INCL. 2-5)
  • 2
    54933-31G20 JOINT SET (INCL. 3-4)
    JOINT SET (INCL. 3-4)
  • 3
    54931-31G12 BOOT SET, INNER
    BOOT SET, INNER
  • 4
    54925-19B01 CIRCLIP
    CIRCLIP
  • 5
    54930-31G20 BOOT SET, OUTER
    BOOT SET, OUTER
  • 6
    54903-31G00 PROTECTOR, DRIVE SHAFT RIGHT HAND
    PROTECTOR, DRIVE SHAFT RIGHT HAND
  • 7
    54904-31G00 PROTECTOR, DRIVE SHAFT LEFT HAND
    PROTECTOR, DRIVE SHAFT LEFT HAND
  • 8
    09111-06085 BOLT (6X12)
    BOLT (6X12)
