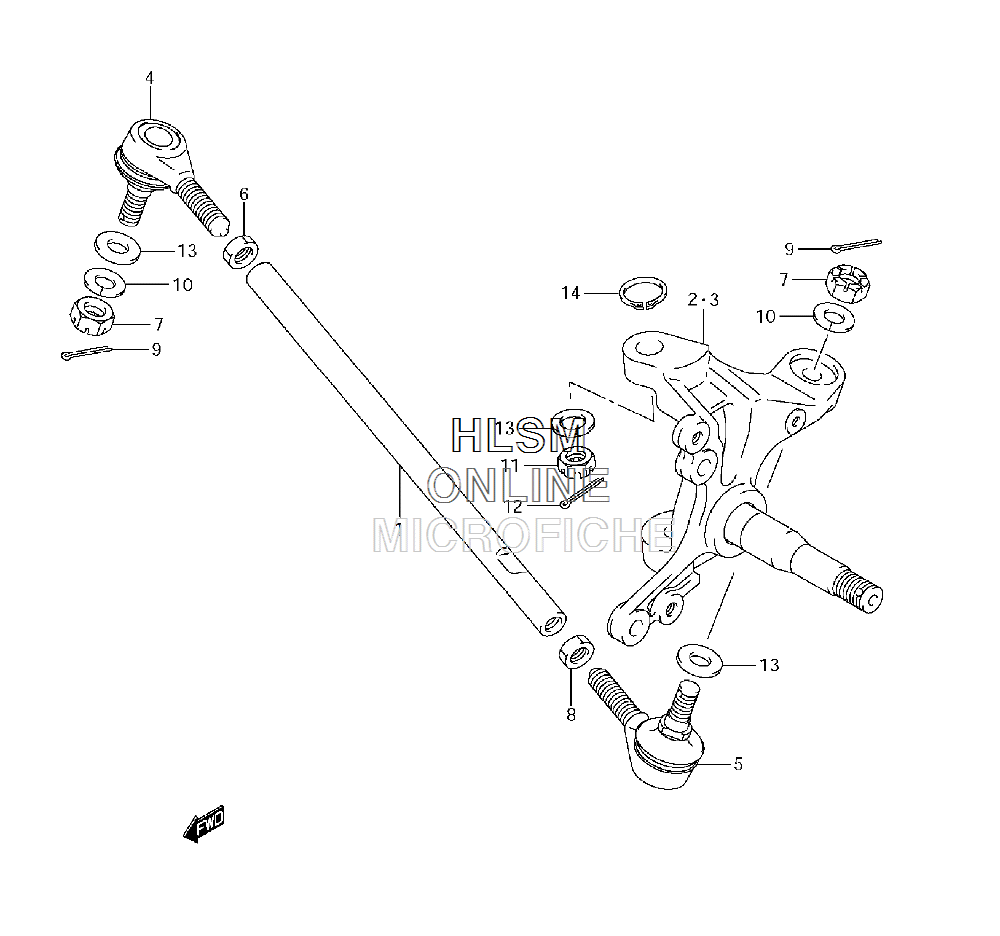

STEERING KNUCKLE W/ TIE RODS для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска`
-
№АртикулНазвание
-
151281-21G00 TIE ROD, STEERINGTIE ROD, STEERING
-
251230-21G00 KNUCKLE, STEERING RIGHT HANDKNUCKLE, STEERING RIGHT HAND
-
351240-21G00 KNUCKLE, STEERING LEFT HANDKNUCKLE, STEERING LEFT HAND
-
451260-21G00 ROD, END RIGHT HANDROD, END RIGHT HAND
-
551270-21G00 ROD, END LEFT HANDROD, END LEFT HAND
-
651283-21G00 NUT, TIE ROD RIGHT HANDNUT, TIE ROD RIGHT HAND
-
708314-4010A NUT, ROD ENDNUT, ROD END
-
809140-10027 NUT, TIE ROD LEFT HANDNUT, TIE ROD LEFT HAND
-
904111-2020A COTTER PIN, ROD ENDCOTTER PIN, ROD END
-
1009162-10010 WASHER, ROD ENDWASHER, ROD END
-
1108314-4010A NUT, KNUCKLE ENDNUT, KNUCKLE END
-
1204111-2525A COTTER PIN, KNUCKLE ENDCOTTER PIN, KNUCKLE END
-
1308321-0110A WASHER, KNUCKLE ENDWASHER, KNUCKLE END
-
1408331-3132A CIRCLIP, KNUCKLE ENDCIRCLIP, KNUCKLE END
