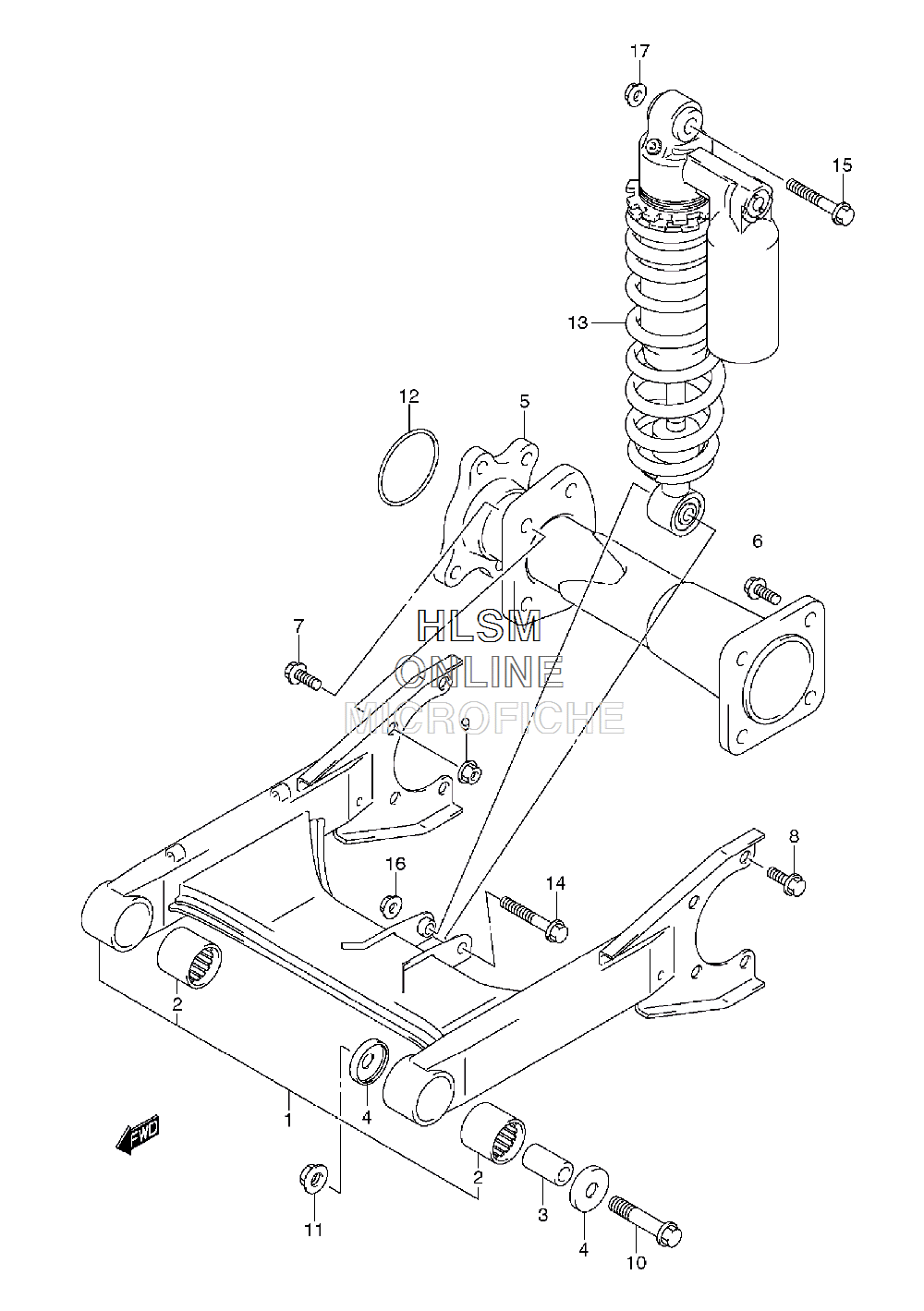

SUSPENSION - REAR SWING ARM для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    61100-21841-YD8 SWINGINGARM SET, REAR (INC 2)
    SWINGINGARM SET, REAR (INC 2)
  • 2
    09263-20064 BEARING
    BEARING
  • 3
    61251-21G00 SPACER, RR SWGARM PIVOT
    SPACER, RR SWGARM PIVOT
  • 4
    62624-08D00 SEAL, RR SWGARM PIVOT DUST
    SEAL, RR SWGARM PIVOT DUST
  • 5
    61300-21G00-YD8 HOUSING, RR AXLE, R
    HOUSING, RR AXLE, R
  • 6
    09103-10364 BOLT, AXLE HOUSING
    BOLT, AXLE HOUSING
  • 7
    09103-10216 BOLT, RR SWGARM BRACKET, R
    BOLT, RR SWGARM BRACKET, R
  • 8
    09103-10395 BOLT, RR SWGARM BRACKET, L
    BOLT, RR SWGARM BRACKET, L
  • 9
    09159-10115 NUT, RR SWGARM BRACKET
    NUT, RR SWGARM BRACKET
  • 10
    09103-12072 BOLT, PIVOT
    BOLT, PIVOT
  • 11
    09159-12054 NUT, PIVOT
    NUT, PIVOT
  • 12
    09280-70005 O RING, RR AXLE HOUSING REAR
    O RING, RR AXLE HOUSING REAR
  • 13
    62100-21G40-YKS ABSORBER ASSY, REAR SHOCK (RED) (FOR YELLOW)
    ABSORBER ASSY, REAR SHOCK (RED) (FOR YELLOW)
  • 13
    62100-21G40-28W ABSORBER ASSY, REAR SHOCK (WHITE) (FOR WHITE)
    ABSORBER ASSY, REAR SHOCK (WHITE) (FOR WHITE)
  • 13
    62100-21G50-YKS ABSORBER ASSY, REAR SHOCK (RED) (FOR YELLOW)
    ABSORBER ASSY, REAR SHOCK (RED) (FOR YELLOW)
  • 13
    62100-21G50-28W ABSORBER ASSY, REAR SHOCK (WHITE) (FOR WHITE)
    ABSORBER ASSY, REAR SHOCK (WHITE) (FOR WHITE)
  • 14
    09103-10213 BOLT. LOWER
    BOLT. LOWER
  • 15
    09103-12042 BOLT, UPPER
    BOLT, UPPER
  • 16
    09159-10115 NUT, LOWER
    NUT, LOWER
  • 17
    08319-3112A NUT, UPPER
    NUT, UPPER
