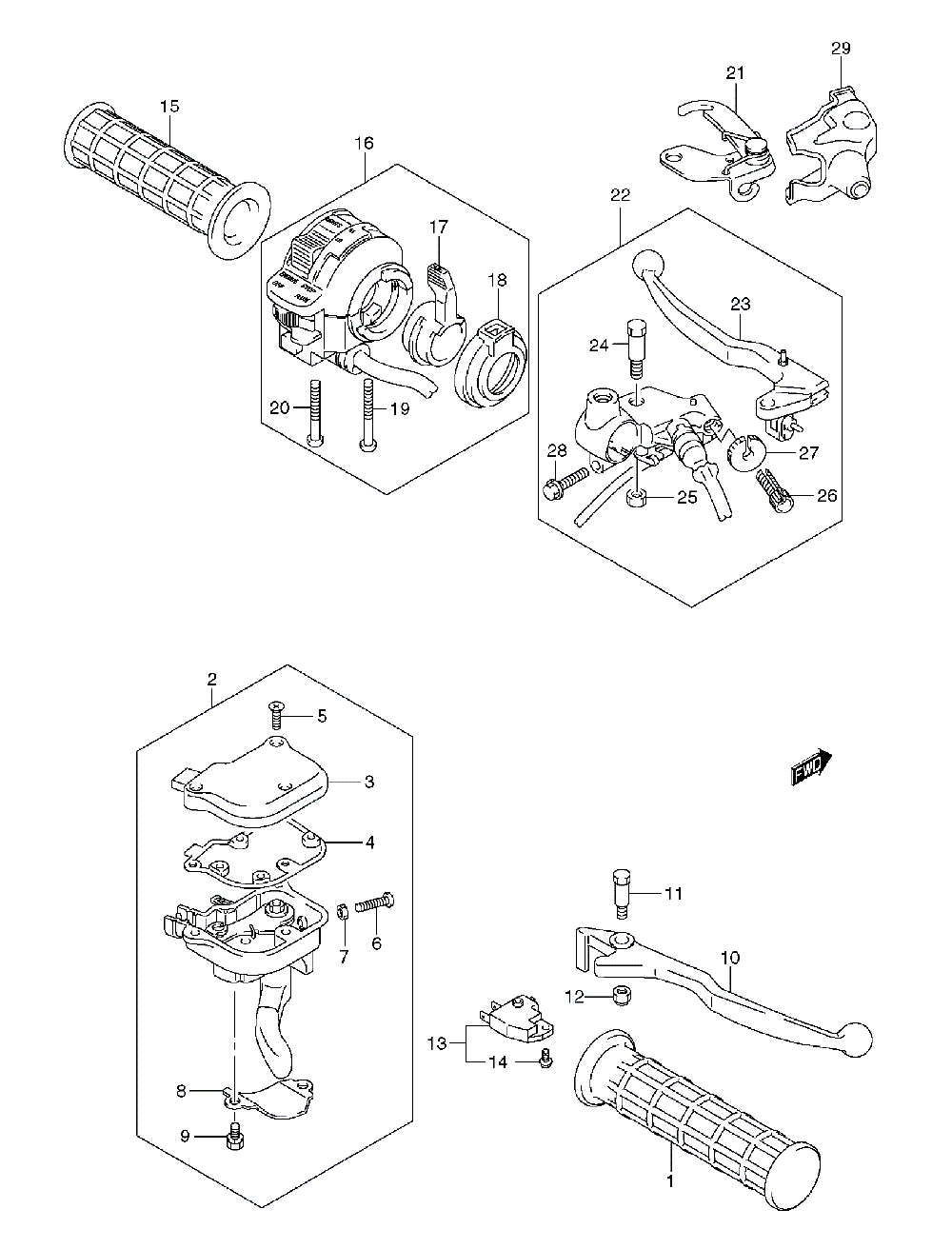

HANDLEBAR - LEVERS / SWITCHES для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска`
-
№АртикулНазвание
-
157211-21G10 GRIPGRIP
-
257100-27H01 CASE ASSY, THROTTLE (INC 3-9)CASE ASSY, THROTTLE (INC 3-9)
-
357121-27H00 CAPCAP
-
457157-27H00 GASKETGASKET
-
557128-07G00 SCREWSCREW
-
602112-0520B SCREWSCREW
-
708310-0005B NUTNUT
-
857126-07G00 HOLDERHOLDER
-
957127-07G00 BOLTBOLT
-
1057421-39D20 LEVER, FRONT BRAKELEVER, FRONT BRAKE
-
1157431-04F00 BOLT, PIVOTBOLT, PIVOT
-
1257433-09F00 NUTNUT
-
1357460-17C11 SWITCH ASSY, STOP (INC 14)SWITCH ASSY, STOP (INC 14)
-
1457465-17C00 SCREWSCREW
-
1557211-21G10 GRIPGRIP
-
1637400-27H00 SWITCH ASSY, LEFT HAND (INC 17-20)SWITCH ASSY, LEFT HAND (INC 17-20)
-
1737571-19B01 LEVER, CHOKELEVER, CHOKE
-
1837576-19B01 COVER, CHOKECOVER, CHOKE
-
1902112-05457 SCREWSCREW
-
2002112-05407 SCREWSCREW
-
2157790-38FA0 STOPPER, LEVERSTOPPER, LEVER
-
2257500-38FB1 LEVER ASSY, REAR BRAKE (INC 23-28)LEVER ASSY, REAR BRAKE (INC 23-28)
-
2357620-21821 LEVER SET, BRAKELEVER SET, BRAKE
-
2457431-09F00 BOLT, PIVOTBOLT, PIVOT
-
2508319-2106B NUTNUT
-
2657441-08C00 ADJUSTER, CABLEADJUSTER, CABLE
-
2757442-08C00 LOCK NUTLOCK NUT
-
2801547-0620B BOLTBOLT
-
2957541-38FA0 COVER, BRAKECOVER, BRAKE
