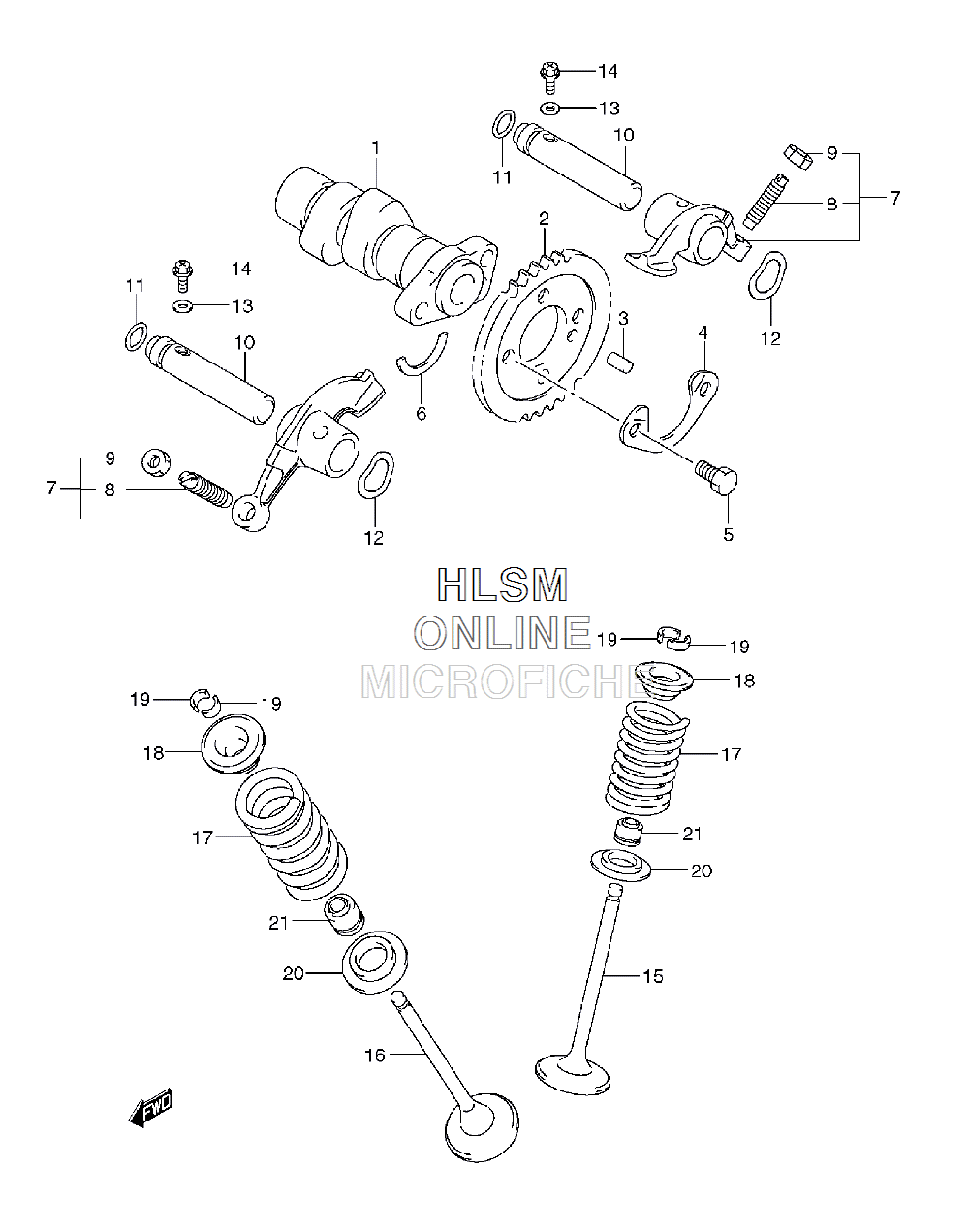

CAM SHAFT - W/ VALVES для Suzuki LT-Z250 QuadSport Z250 - 2009 года выпуска`
-
№АртикулНазвание
-
112711-18A00 CAM SHAFTCAM SHAFT
-
212741-21G00 SPROCKET (NT:32)SPROCKET (NT:32)
-
309261-05005 PINPIN
-
412747-05202 WASHERWASHER
-
509100-06166 BOLT (6X10.5)BOLT (6X10.5)
-
609390-22002 C RINGC RING
-
712850-25C00 ARM, VALVE ROCKER, IN (INC 8-9)ARM, VALVE ROCKER, IN (INC 8-9)
-
812842-32411 SCREWSCREW
-
912843-32400 NUTNUT
-
1012861-05201 SHAFT, ROCKER ARMSHAFT, ROCKER ARM
-
1109280-09005 O RING (D:1.9,ID:8.6)O RING (D:1.9,ID:8.6)
-
1209164-12021 WASHERWASHER
-
1309168-06023 GASKETGASKET
-
1402162-0625B BOLTBOLT
-
1512911-05G00 VALVE, INTAKEVALVE, INTAKE
-
1612912-18A00 VALVE, EXHAUSTVALVE, EXHAUST
-
1712921-21G00 SPRING, VALVESPRING, VALVE
-
1812931-19B01 RETAINER, SPRINGRETAINER, SPRING
-
1912932-24400 COTTER, VALVECOTTER, VALVE
-
2012933-19B00 SEAT, SPRINGSEAT, SPRING
-
2109289-05015 OIL SEAL (5.5X11X8.2)OIL SEAL (5.5X11X8.2)
