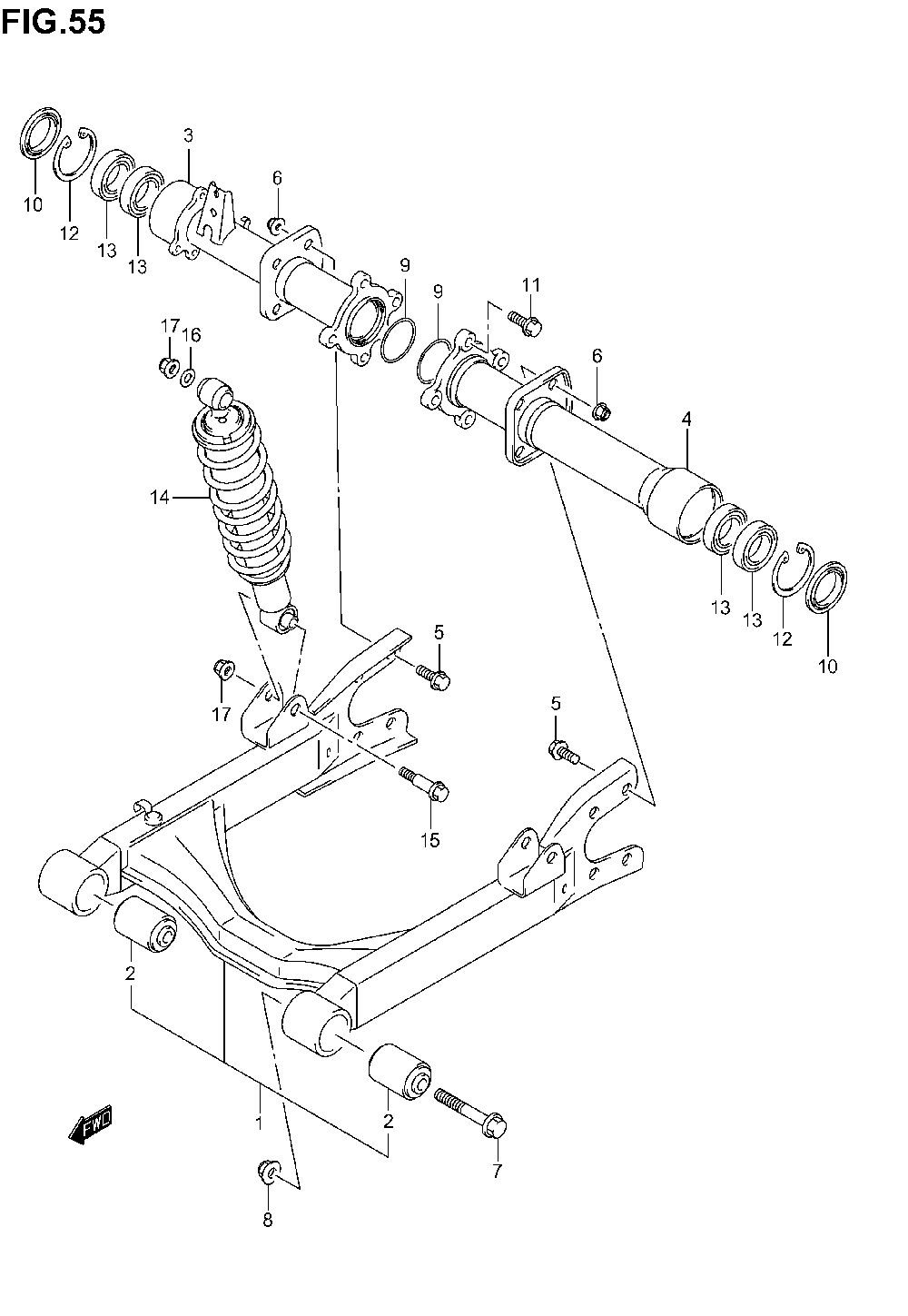

SUSPENSION - REAR SWING ARM для Suzuki LT-A400C EIGER - 2003 года выпуска`
-
№АртикулНазвание
-
161100-38871 SWINGINGARM SET, REARSWINGINGARM SET, REAR
-
261230-38F11 BUSH, PIVOTBUSH, PIVOT
-
361300-38F00 HOUSING, REAR AXLE RIGHT HAND (UP TO F.NO.5SAAK46K3X102000)HOUSING, REAR AXLE RIGHT HAND (UP TO F.NO.5SAAK46K3X102000)
-
361300-38F10 HOUSING, REAR AXLE RIGHT HAND (F.NO.5SAAK46K3X102001 AND ABOVE)HOUSING, REAR AXLE RIGHT HAND (F.NO.5SAAK46K3X102001 AND ABOVE)
-
461400-38F00 HOUSING, REAR AXLE LEFT HAND (UP TO F.NO.5SAAK46K3X102000)HOUSING, REAR AXLE LEFT HAND (UP TO F.NO.5SAAK46K3X102000)
-
461400-38F10 HOUSING, REAR AXLE LEFT HAND (F.NO.5SAAK46K3X102001 AND ABOVE)HOUSING, REAR AXLE LEFT HAND (F.NO.5SAAK46K3X102001 AND ABOVE)
-
509103-10216 BOLT, REAR SWGARM BRACKETBOLT, REAR SWGARM BRACKET
-
609159-10058 NUT, REAR SWGARM BRACKETNUT, REAR SWGARM BRACKET
-
709103-12068 BOLT, PIVOTBOLT, PIVOT
-
809159-12054 NUT, PIVOTNUT, PIVOT
-
909280-70005 O RING, REAR AXLE HOUSINGO RING, REAR AXLE HOUSING
-
1009283-38022 SEAL, REAR AXLE HOUSINGSEAL, REAR AXLE HOUSING
-
1101550-10303 BOLT, AXLE HOUSING (UP TO F.NO.5SAAK46K3X102000)BOLT, AXLE HOUSING (UP TO F.NO.5SAAK46K3X102000)
-
1109103-10343 BOLT, AXLE HOUSING (F.NO.5SAAK46K3X102001 AND ABOVE)BOLT, AXLE HOUSING (F.NO.5SAAK46K3X102001 AND ABOVE)
-
1208331-41556 CIRCLIPCIRCLIP
-
1308123-60067 BEARING, HUBBEARING, HUB
-
1462100-38F00-019 ABSORBER ASSY, REAR SHOCK (BLACK) (UP TO F.NO.5SAAK46K3X102000)ABSORBER ASSY, REAR SHOCK (BLACK) (UP TO F.NO.5SAAK46K3X102000)
-
1462100-38F50-019 ABSORBER ASSY, REAR SHOCK (BLACK) (F.NO.5SAAK46K3X102001 AND ABOVE)ABSORBER ASSY, REAR SHOCK (BLACK) (F.NO.5SAAK46K3X102001 AND ABOVE)
-
1509103-10126 BOLT, UPPERBOLT, UPPER
-
1609160-10501 WASHER, UPPER, OUTERWASHER, UPPER, OUTER
-
1708319-31103 NUTNUT
