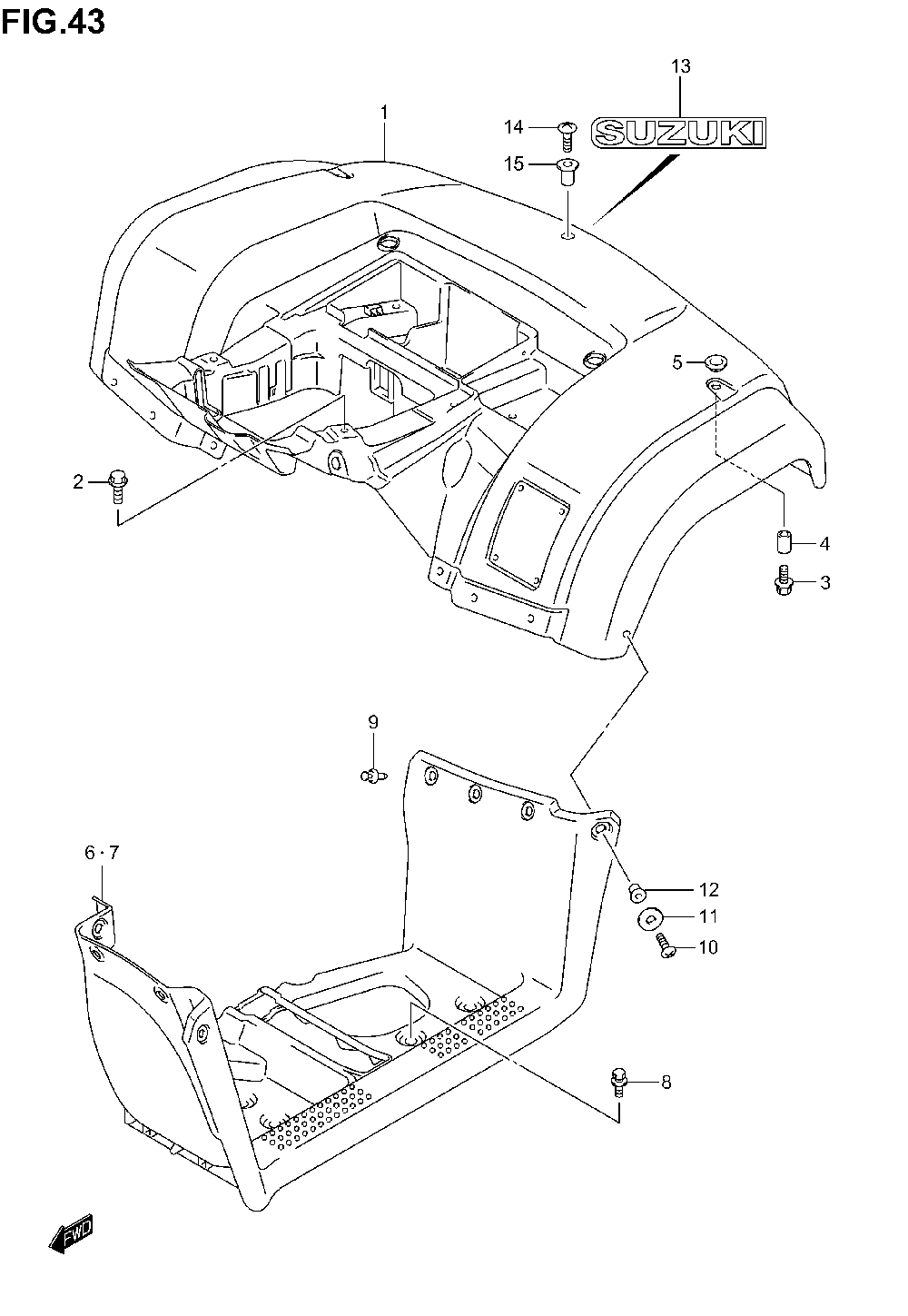

FENDER - REAR для Suzuki LT-A400C EIGER - 2003 года выпуска
-
№АртикулНазвание
-
163111-38F00-YT8 FENDER, REAR (GREEN, YT8) (UP TO F.NO.5SAAK46K3X102000)FENDER, REAR (GREEN, YT8) (UP TO F.NO.5SAAK46K3X102000)
-
163111-38F40-YT8 FENDER, REAR (GREEN, YT8) (F.NO.5SAAK46K3X102001 AND ABOVE)FENDER, REAR (GREEN, YT8) (F.NO.5SAAK46K3X102001 AND ABOVE)
-
163111-38F00-YT9 FENDER, REAR (RED, YT9) (UP TO F.NO.5SAAK46K3X102000)FENDER, REAR (RED, YT9) (UP TO F.NO.5SAAK46K3X102000)
-
163111-38F40-YT9 FENDER, REAR (RED, YT9) (F.NO.5SAAK46K3X102001 AND ABOVE)FENDER, REAR (RED, YT9) (F.NO.5SAAK46K3X102001 AND ABOVE)
-
209116-06168 BOLT, FRONTBOLT, FRONT
-
301550-06303 BOLT, SIDEBOLT, SIDE
-
453275-38F00 SPACERSPACER
-
553145-38F00 CUSHIONCUSHION
-
663331-38F02-291 MUDGUARD, FRONT RIGHT HAND (BLACK)MUDGUARD, FRONT RIGHT HAND (BLACK)
-
763341-38F01-291 MUDGUARD, FRONT LEFT HAND (BLACK)MUDGUARD, FRONT LEFT HAND (BLACK)
-
809111-06061 BOLT, GUARDBOLT, GUARD
-
909409-08335 CLIPCLIP
-
1002142-05203 SCREW, MUDGUARDSCREW, MUDGUARD
-
1109160-05046 WASHERWASHER
-
1209159-05019 NUTNUT
-
1368174-35B00-HV6 EMBLEM, REAR (FOR GREEN)EMBLEM, REAR (FOR GREEN)
-
1368174-35B00-HV5 EMBLEM, REAR (FOR RED)EMBLEM, REAR (FOR RED)
-
1402142-05203 SCREW, REARSCREW, REAR
-
1509159-05019 NUT, REARNUT, REAR
