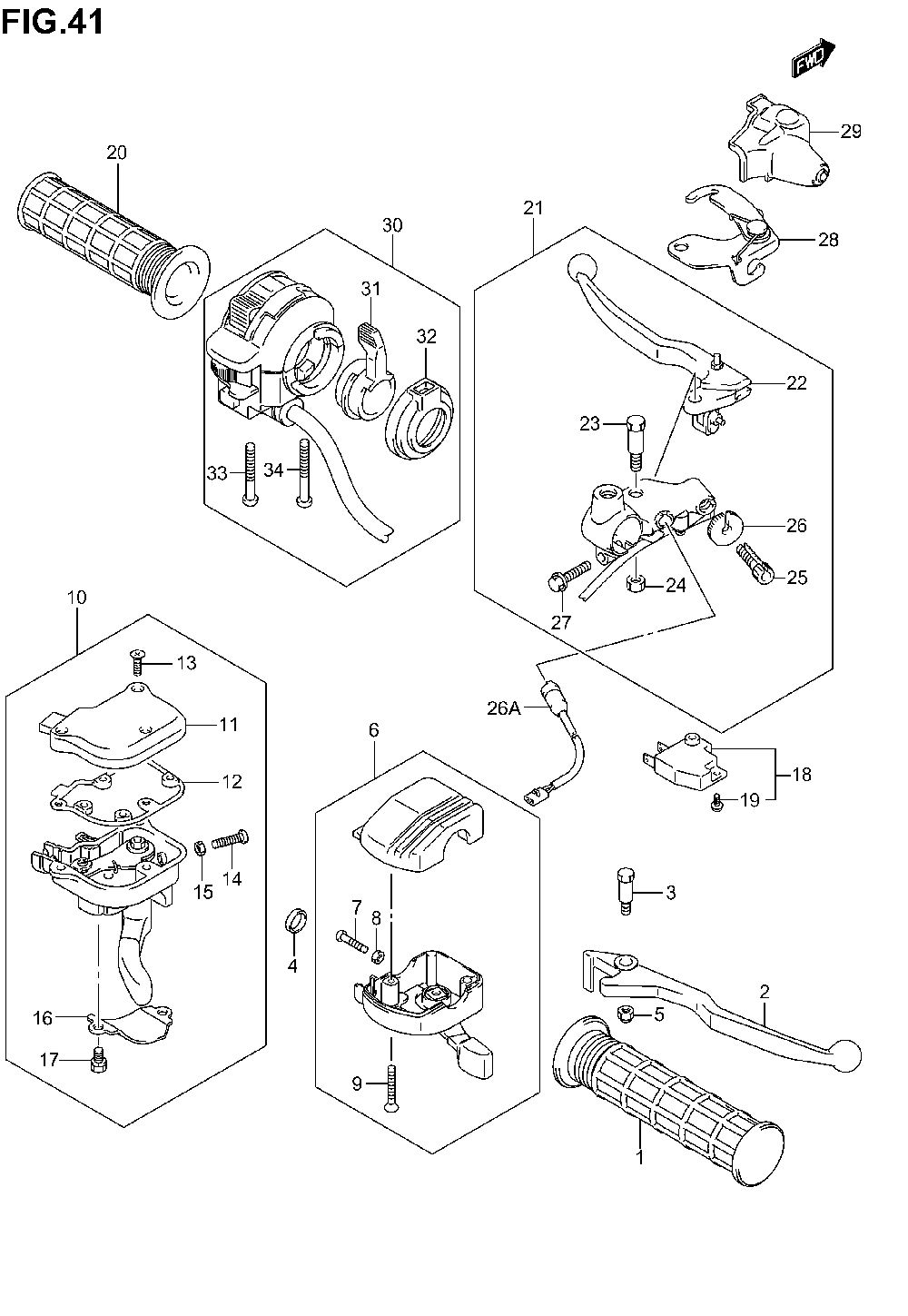

HANDLEBAR - LEVERS / SWITCHES для Suzuki LT-A400C EIGER - 2003 года выпуска
-
№АртикулНазвание
-
157211-19A03-291 GRIP (BLACK)GRIP (BLACK)
-
257421-39D10 LEVER, BRAKELEVER, BRAKE
-
309111-06075 BOLTBOLT
-
557433-09F00 NUTNUT
-
657100-39DB0 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
709125-05066 SCREWSCREW
-
809140-05006 NUTNUT
-
902132-05307 SCREWSCREW
-
1857460-17C00 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
1957465-17C00 SCREWSCREW
-
2057211-19A03-291 GRIP (BLACK)GRIP (BLACK)
-
2157500-38FA1 LEVER ASSY, REAR BRAKELEVER ASSY, REAR BRAKE
-
2257620-09840 LEVER SETLEVER SET
-
2357431-09F00 BOLT, PIVOTBOLT, PIVOT
-
2408319-21063 NUTNUT
-
2557441-08C00 ADJUSTER, WIREADJUSTER, WIRE
-
2657442-08C00 NUT, LOCKNUT, LOCK
-
26A57560-38FA1 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
2701547-06203 BOLTBOLT
-
2857790-38FA0 STOPPER, LEVERSTOPPER, LEVER
-
2957541-38FA0 COVER, LEVERCOVER, LEVER
-
3037400-09F00 SWITCH ASSY, LEFT HANDSWITCH ASSY, LEFT HAND
-
3137571-19B01 LEVER, CHOKELEVER, CHOKE
-
3237576-19B01 COVER, CHOKECOVER, CHOKE
-
3302112-05407 SCREWSCREW
-
3402112-05457 SCREWSCREW
