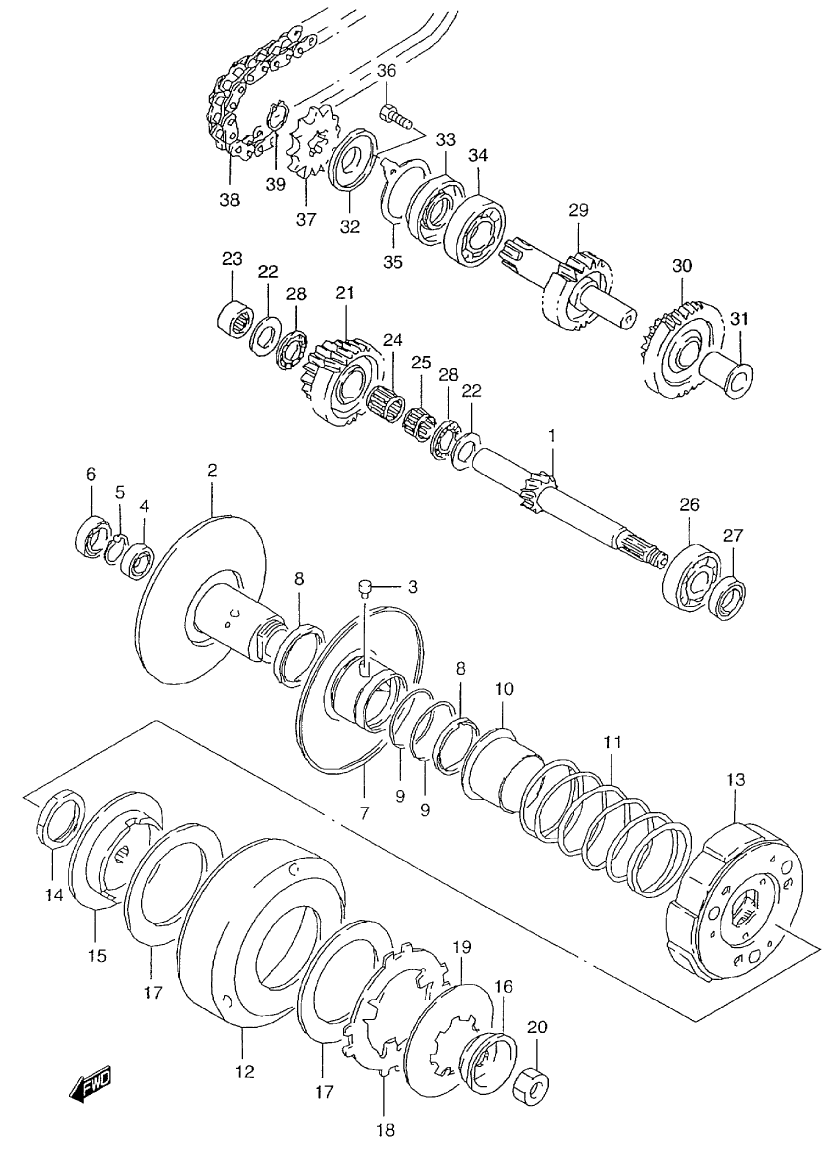

TRANSMISSION (2) для Suzuki LT80Y QUADSPORT - 2000 года выпуска`
-
№АртикулНазвание
-
124131-29A03 COUNTER SHAFT (NT:12)COUNTER SHAFT (NT:12)
-
221210-03A21 FACE. FIXED DRIVENFACE. FIXED DRIVEN
-
309201-06005 PINPIN
-
409262-12014 BEARING (12X24X6)BEARING (12X24X6)
-
508331-41246 CIRCLIPCIRCLIP
-
609262-15018 BEARING (15X28X7)BEARING (15X28X7)
-
721240-40B00 FACE, MOVABLE DRIVENFACE, MOVABLE DRIVEN
-
809283-34007 OIL SEAL (34X4LX4)OIL SEAL (34X4LX4)
-
909280-41005 0 RING0 RING
-
1021471-03A03 SLEEVE, MOVABLE DRIVEN FACESLEEVE, MOVABLE DRIVEN FACE
-
1109440-46005 SPRINGSPRING
-
1221220-29A01 HOUSING, CLUTCHHOUSING, CLUTCH
-
1321501-03A21 CLUTCH ASSYCLUTCH ASSY
-
1409152-28001 NUTNUT
-
1521411-29A01 HUB, LIMITER CLUTCHHUB, LIMITER CLUTCH
-
1621412-29A00 STOPPER, LIMITER CLUTCHSTOPPER, LIMITER CLUTCH
-
1721441-29A01 PLATE, FRICTIONPLATE, FRICTION
-
1821461-29A01 PLATE, PRESSUREPLATE, PRESSURE
-
1909164-30003 SPRINGSPRING
-
2009140-10035 NUTNUT
-
2124271-40B01 GEAR, FINAL DRIVE (NT:27/14)GEAR, FINAL DRIVE (NT:27/14)
-
2208211-15281 THRUST WASHERTHRUST WASHER
-
2309263-15009 BEARING, CNTR SHAFT, R (15X22X15)BEARING, CNTR SHAFT, R (15X22X15)
-
2409263-15035 BEARING, FINAL DRIVE, R (15X20X18)BEARING, FINAL DRIVE, R (15X20X18)
-
2509263-15038 BEARING, FINAL DRIVE, L (15X20X13)BEARING, FINAL DRIVE, L (15X20X13)
-
2609262-15027 BEARING, CNTR SHAFT, L (15X42X13)BEARING, CNTR SHAFT, L (15X42X13)
-
2709283-15003 OIL SEAL, CNTR, L OIL (15X25X5)OIL SEAL, CNTR, L OIL (15X25X5)
-
2809263-15003 BEARING, FINAL DRIVE, R (15X28X2)BEARING, FINAL DRIVE, R (15X28X2)
-
2924141-40B00 SHAFT, DRIVE (NT:19)SHAFT, DRIVE (NT:19)
-
3024290-29A00 GEAR, IDLER DRIVE NO.2 (TEETH :33/14)GEAR, IDLER DRIVE NO.2 (TEETH :33/14)
-
3109301-15002 BUSHBUSH
-
3224142-40B00 OIL SEALOIL SEAL
-
3309283-20047 OIL SEALOIL SEAL
-
3409262-20019 BEARING (20X47X14)BEARING (20X47X14)
-
3524751-40B00 RETAINERRETAINER
-
3601500-06163 SCREWSCREW
-
3727511-40B10 SPROCKET, ENGINE (NT:10)SPROCKET, ENGINE (NT:10)
-
3827600-34A40-036 CHAIN ASSY (RK 520SMX3LE)CHAIN ASSY (RK 520SMX3LE)
-
3909380-20009 CIRCLIPCIRCLIP
