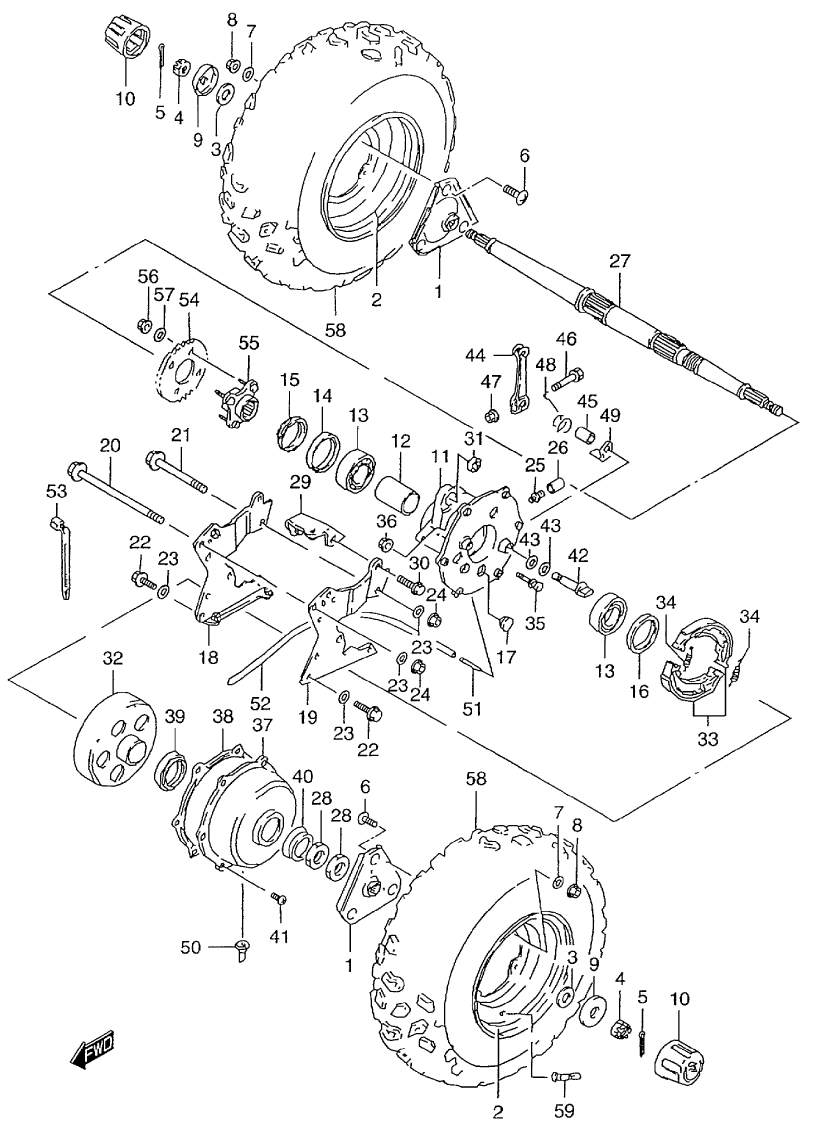

WHEEL - REAR W/ AXLE - BRAKE для Suzuki LT80Y QUADSPORT - 2000 года выпуска
-
№АртикулНазвание
-
164110-40B50 HUB, REARHUB, REAR
-
255310-40B00-14L RIM, REAR WHEEL (WHITE) (8X5.5AT)RIM, REAR WHEEL (WHITE) (8X5.5AT)
-
309164-16002 WASHERWASHER
-
409141-16004 NUTNUT
-
504111-40408 COTTER PINCOTTER PIN
-
609119-10048 BOLT, REAR HUBBOLT, REAR HUB
-
708322-01103 WASHERWASHER
-
808316-10103 NUTNUT
-
964726-40B00 HOLDER. CAPHOLDER. CAP
-
1054725-18A00 CAP,WHEEL CENTERCAP,WHEEL CENTER
-
1164721-40B00 HOUSING, AXLE BEARINGHOUSING, AXLE BEARING
-
1264731-40B00 SPACER. BEARINGSPACER. BEARING
-
1209262-32007 BEARING (32X65X17)BEARING (32X65X17)
-
1409283-42015 SEAL, INNER (42X65X8.5)SEAL, INNER (42X65X8.5)
-
1509286-42001 SEAL, OUTER (42X65X8.5)SEAL, OUTER (42X65X8.5)
-
1609283-42015 SEAL, LHSEAL, LH
-
1709250-20003 CAPCAP
-
1864770-40B00 PLATE, HOUSING RHPLATE, HOUSING RH
-
1964780-40B00 PLATE, HOUSING LHPLATE, HOUSING LH
-
2009103-08504 BOLT (8XL75)BOLT (8XL75)
-
2109103-08066 BOLT (8X95)BOLT (8X95)
-
2201550-08203 BOLTBOLT
-
2308322-01083 WASHERWASHER
-
2408319-31087 NUTNUT
-
2508351-21008 NIPPLE, GREASENIPPLE, GREASE
-
2661442-33310 CAPCAP
-
2764711-40B00 AXLE, REARAXLE, REAR
-
2809140-28003 NUTNUT
-
2964790-40B00 PLATE, MUFFLER SUPPORTPLATE, MUFFLER SUPPORT
-
3001550-08203 BOLTBOLT
-
3109319-10041 BUSHING, ABSORBERBUSHING, ABSORBER
-
3264120-40B00 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
3364400-40810 SHOE SET, BRAKESHOE SET, BRAKE
-
3464430-14600 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
3564231-40B00 PIN, ANCHORPIN, ANCHOR
-
3608316-10083 NUTNUT
-
3764130-40B00 COVER, BRAKE DRUMCOVER, BRAKE DRUM
-
3864125-40B00 GASKETGASKET
-
3909282-42001 SEAL, DRUM INNERSEAL, DRUM INNER
-
4064729-40B00 SEAL, DRUM OUTERSEAL, DRUM OUTER
-
4102142-06083 SCREWSCREW
-
4264441-40B00 CAM, REAR BRAKECAM, REAR BRAKE
-
4309280-14004 O RINGO RING
-
4464451-40B00 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
4564454-40B00 SPACER, CAM LEVERSPACER, CAM LEVER
-
4601550-06303 BOLTBOLT
-
4708316-10063 NUTNUT
-
4864444-40B00 SPRING, CAM LEVER RETURNSPRING, CAM LEVER RETURN
-
4964492-40B00 PLATE, INDICATORPLATE, INDICATOR
-
5009250-11002 PLUGPLUG
-
5109364-06004 JOINTJOINT
-
5209352-50823-00B HOSE (LENGTH 2000->840)HOSE (LENGTH 2000->840)
-
5309407-11401 CLAMPCLAMP
-
5464511-40B10 SPROCKET, REAR (NT:22)SPROCKET, REAR (NT:22)
-
5564610-40B00 FLANGE, MOUNTINGFLANGE, MOUNTING
-
5608319-31087 NUTNUT
-
5708322-01083 WASHERWASHER
-
5865100-40B51 TIRE (AT19X7-8) DUNLOPTIRE (AT19X7-8) DUNLOP
-
5943130-78030 VALVE ASSY, WHEEL TR413VALVE ASSY, WHEEL TR413
