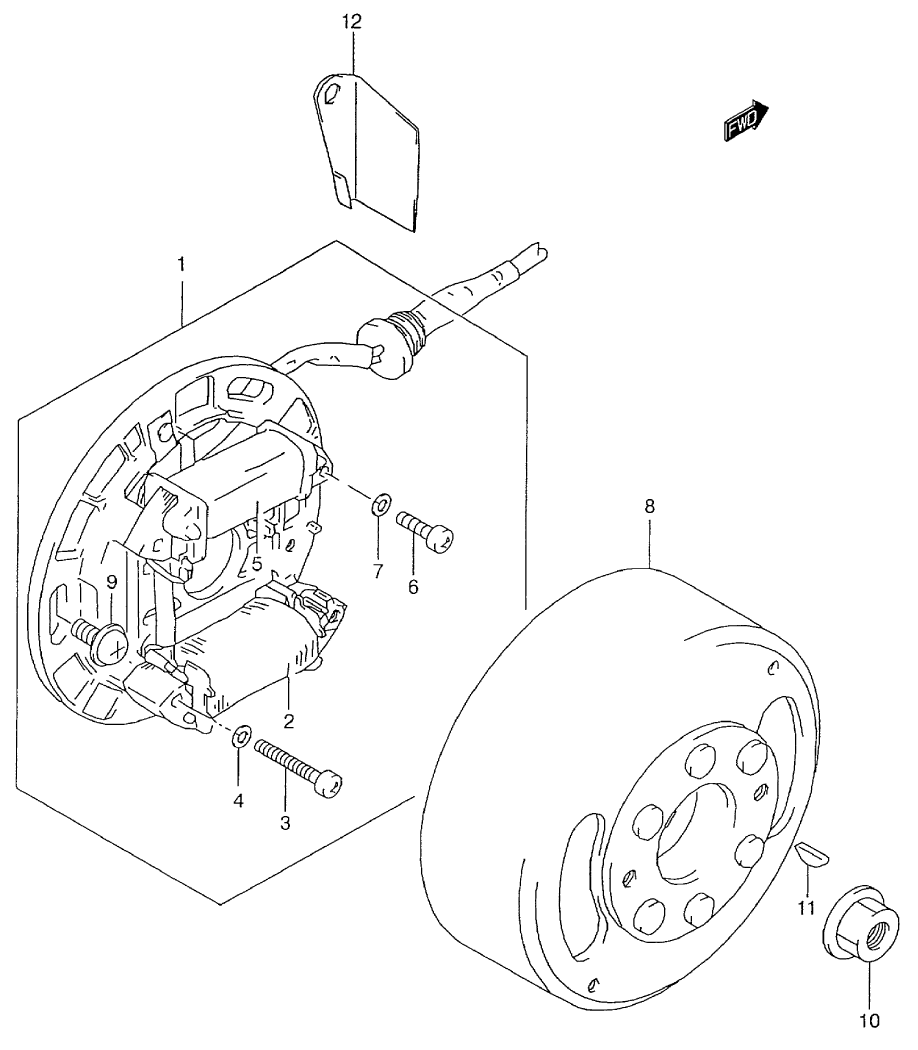

MAGNETO для Suzuki LT80Y QUADSPORT - 2000 года выпуска
-
№АртикулНазвание
-
132101-40B00 STATOR ASSYSTATOR ASSY
-
232120-40B00 ...COIL, LIGHTING...COIL, LIGHTING
-
309125-04023 ...SCREW...SCREW
-
408321-01043 ...LOCK WASHER...LOCK WASHER
-
532140-40B00 ...COIL, PRIMARY...COIL, PRIMARY
-
602112-04163 ...SCREW...SCREW
-
708321-01043 ...LOCK WASHER...LOCK WASHER
-
832102-40B00 ROTORROTOR
-
902142-05123 SCREWSCREW
-
1008316-10103 NUTNUT
-
1108341-31039 KEYKEY
-
1232371-40B00 CLAMPCLAMP
