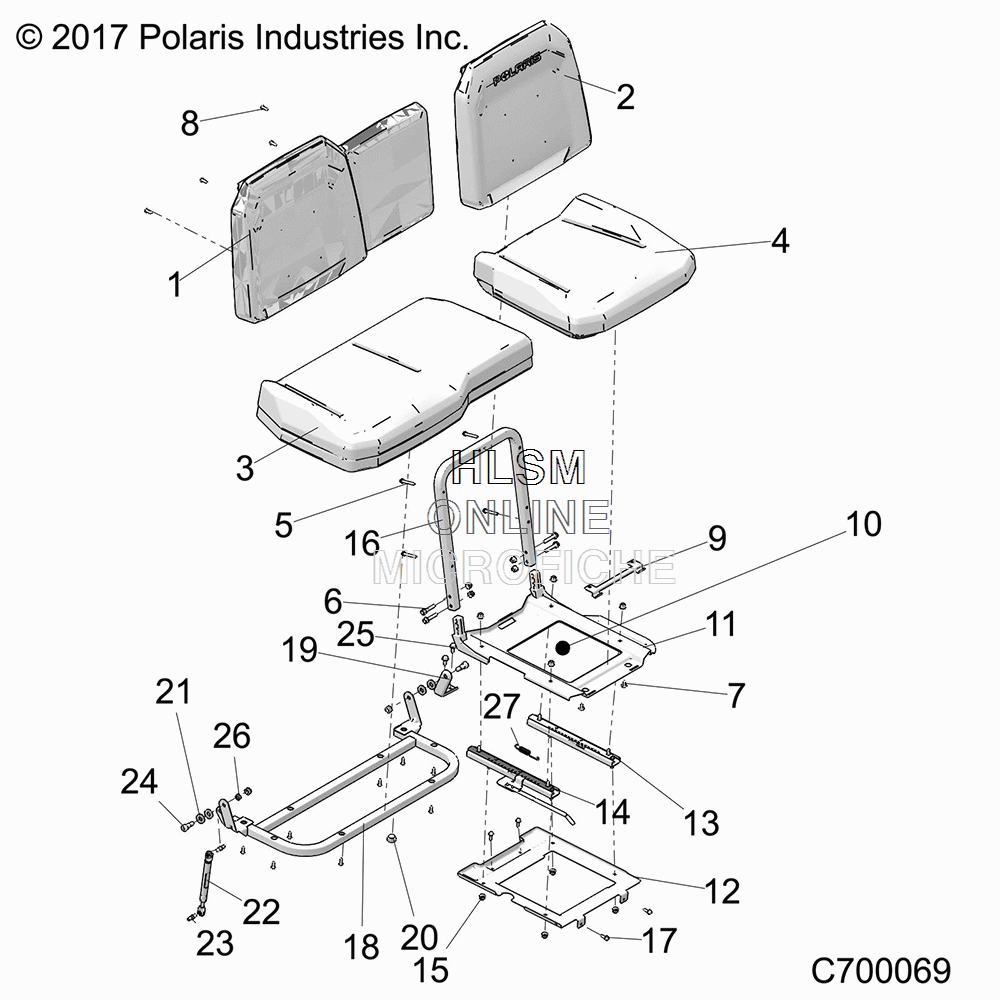

SEAT ASM. AND SLIDER для Polaris RANGER XP 1000 HVAC EDITION EPS SUNSET RED (R18RRU99AS) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2688253 ASM-SEAT, BACK, 60, BLACK
    ASM-SEAT, BACK, 60, BLACK
  • 2
    2688256 ASM-SEAT, BACK, 40, BLACK
    ASM-SEAT, BACK, 40, BLACK
  • 3
    2688259 ASM-SEAT, BTM, 60, BLACK
    ASM-SEAT, BTM, 60, BLACK
  • 4
    2688494 ASM-SEAT, BTM, 40, FLIP, BLACK, DS
    ASM-SEAT, BTM, 40, FLIP, BLACK, DS
  • 5
    7512093 SCR-#14X1-3/4 LG, HI/LO/TAPER-M
    SCR-#14X1-3/4 LG, HI/LO/TAPER-M
  • 6
    7519738 SCR-HXFL-M8X1.25X45 8.8 ZOD
    SCR-HXFL-M8X1.25X45 8.8 ZOD
  • 7
    7518936 SCR-M6X1X16 TR/TX-M
    SCR-M6X1X16 TR/TX-M
  • 8
    7519045 SCR-TX TRUSS-#14X3/4, HI/LO ZBK
    SCR-TX TRUSS-#14X3/4, HI/LO ZBK
  • 9
    5265262-458 BRKT-SEAT HINGE, DOUBLE, BLACK
    BRKT-SEAT HINGE, DOUBLE, BLACK
  • 10
    2688492 ASM-SLIDE, SEAT (INCL 11-15)
    ASM-SLIDE, SEAT (INCL 11-15)
  • 11
    1023808-458 WELD-SLIDE, SEAT, TOP, BLACK
    WELD-SLIDE, SEAT, TOP, BLACK
  • 12
    5265236-458 BRKT-SEAT, BTM, BLACK
    BRKT-SEAT, BTM, BLACK
  • 13
    7081852 SLIDE, SEAT, LEFT HAND
    SLIDE, SEAT, LEFT HAND
  • 14
    7081853 SLIDE, SEAT, RIGHT HAND
    SLIDE, SEAT, RIGHT HAND
  • 15
    7547332 NUT-M8X1.25, FLG, NYLOC-OLIVE D
    NUT-M8X1.25, FLG, NYLOC-OLIVE D
  • 16
    5340280-458 TUBE-SEAT, BACK, BLACK
    TUBE-SEAT, BACK, BLACK
  • 17
    7518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BK
    SCR-M6X1.0X20, HXHD, FLG, TDFM, BK
  • 18
    1023099-458 WELD-SEAT BASE, PASS, MATTE BLACK
    WELD-SEAT BASE, PASS, MATTE BLACK
  • 19
    5263494-458 BRKT-SEAT PIVOT, BLACK
    BRKT-SEAT PIVOT, BLACK
  • 20
    5412067 BUMPER-RUBBER
    BUMPER-RUBBER
  • 21
    5813829 WASHER-SEATBELT, RUBBER
    WASHER-SEATBELT, RUBBER
  • 22
    7044799 SHOCK-GAS, 285MM
    SHOCK-GAS, 285MM
  • 23
    7082301 BALL-END
    BALL-END
  • 24
    7519355 SCR-SHS-M10X1.5-M12X16 RIE
    SCR-SHS-M10X1.5-M12X16 RIE
  • 25
    7519780 SCR-HWH-M8X1.25X20 TAP/R ZPB
    SCR-HWH-M8X1.25X20 TAP/R ZPB
  • 26
    7547442 NUT-HEX M10X1.5 8 ZOD NYL
    NUT-HEX M10X1.5 8 ZOD NYL
  • 27
    7082394 SPRING-SEAT SLIDER
    SPRING-SEAT SLIDER
