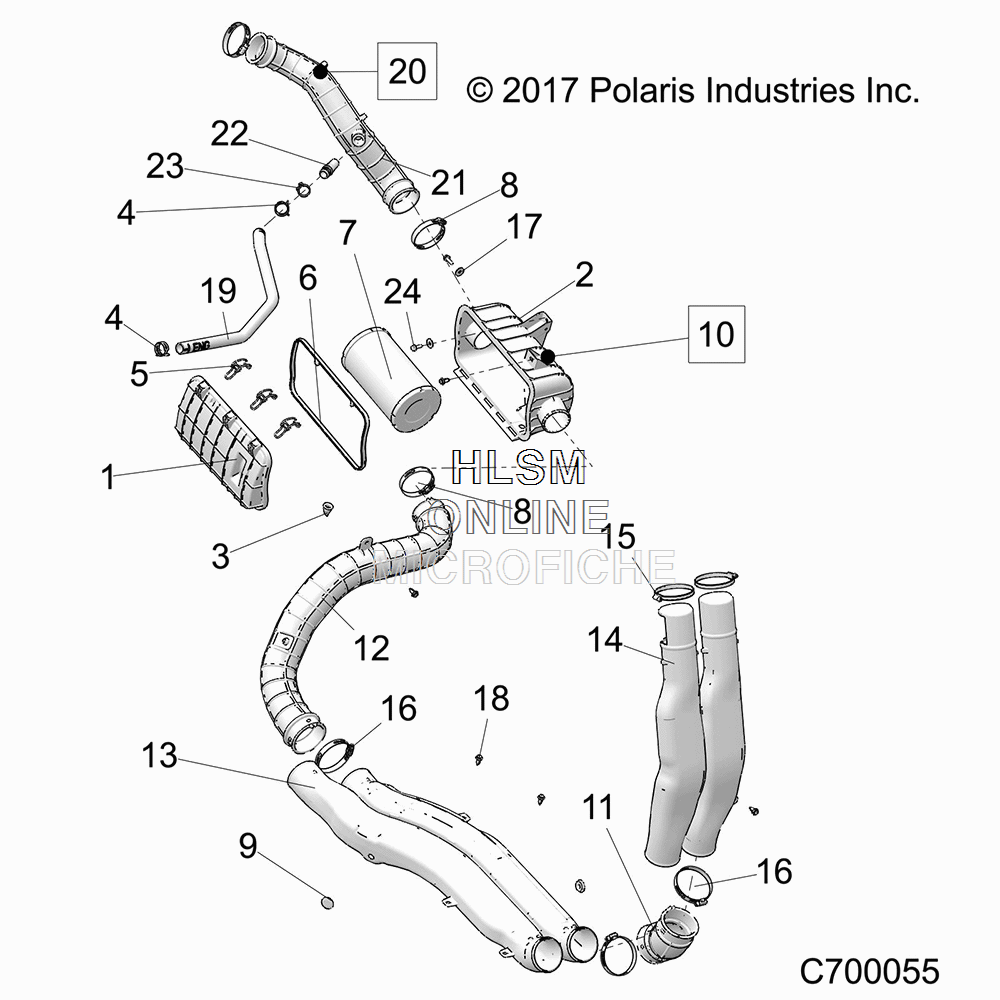

AIR INTAKE SYSTEM для Polaris RANGER XP 1000 HVAC EDITION EPS SUNSET RED (R18RRU99AS) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1241174 ASM-AIRBOX COVER
    ASM-AIRBOX COVER
  • 2
    5453762 AIRBOX
    AIRBOX
  • 3
    5414472 PLUG, DRAIN
    PLUG, DRAIN
  • 4
    7080841 SPRINGBAND-CLAMP 27/12, GREEN
    SPRINGBAND-CLAMP 27/12, GREEN
  • 5
    7082303 ASM-AIRBOX CLIP
    ASM-AIRBOX CLIP
  • 6
    5814699 SEAL-AIRBOX
    SEAL-AIRBOX
  • 7
    7082265 FILTER, AIR
    FILTER, AIR
  • 8
    7082315 CLAMP-HOSE SLOTTED, 60-80 DIA
    CLAMP-HOSE SLOTTED, 60-80 DIA
  • 9
    5415705 PLUG-AIR BOX, MUDDER
    PLUG-AIR BOX, MUDDER
  • 10
    7187068 DECAL-CAUT.AIR BOX
    DECAL-CAUT.AIR BOX
  • 11
    5416135 HOSE-JOINT
    HOSE-JOINT
  • 12
    5416169 HOSE-AIRBOX TO TUNNEL
    HOSE-AIRBOX TO TUNNEL
  • 13
    5453765 DUCT-TUNNEL
    DUCT-TUNNEL
  • 14
    5453766 DUCT-INTAKE, FRONT
    DUCT-INTAKE, FRONT
  • 15
    7081279 CLAMP-BAND, NARROW 70-90MM
    CLAMP-BAND, NARROW 70-90MM
  • 16
    7082314 CLAMP-HOSE SLOTTED, 75-90 DIA
    CLAMP-HOSE SLOTTED, 75-90 DIA
  • 17
    7555935 WASHER-.28 X .81 X .06, ST-M
    WASHER-.28 X .81 X .06, ST-M
  • 18
    7661855 RIVET-TUFLOK, .315-.325X.787
    RIVET-TUFLOK, .315-.325X.787
  • 19
    5416136 HOSE-VENT, ENGINE
    HOSE-VENT, ENGINE
  • 20
    1241155 ASM-AIRBOX TO PLENUM (INCL. 21-23)
    ASM-AIRBOX TO PLENUM (INCL. 21-23)
  • 21
    5416171 HOSE-AIRBOX TO PLENUM
    HOSE-AIRBOX TO PLENUM
  • 22
    7052580 FITTING-3/4 DOUBLE BARB
    FITTING-3/4 DOUBLE BARB
  • 23
    7081903 CLAMP-HOSE
    CLAMP-HOSE
  • 24
    7518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BK
    SCR-M6X1.0X20, HXHD, FLG, TDFM, BK
