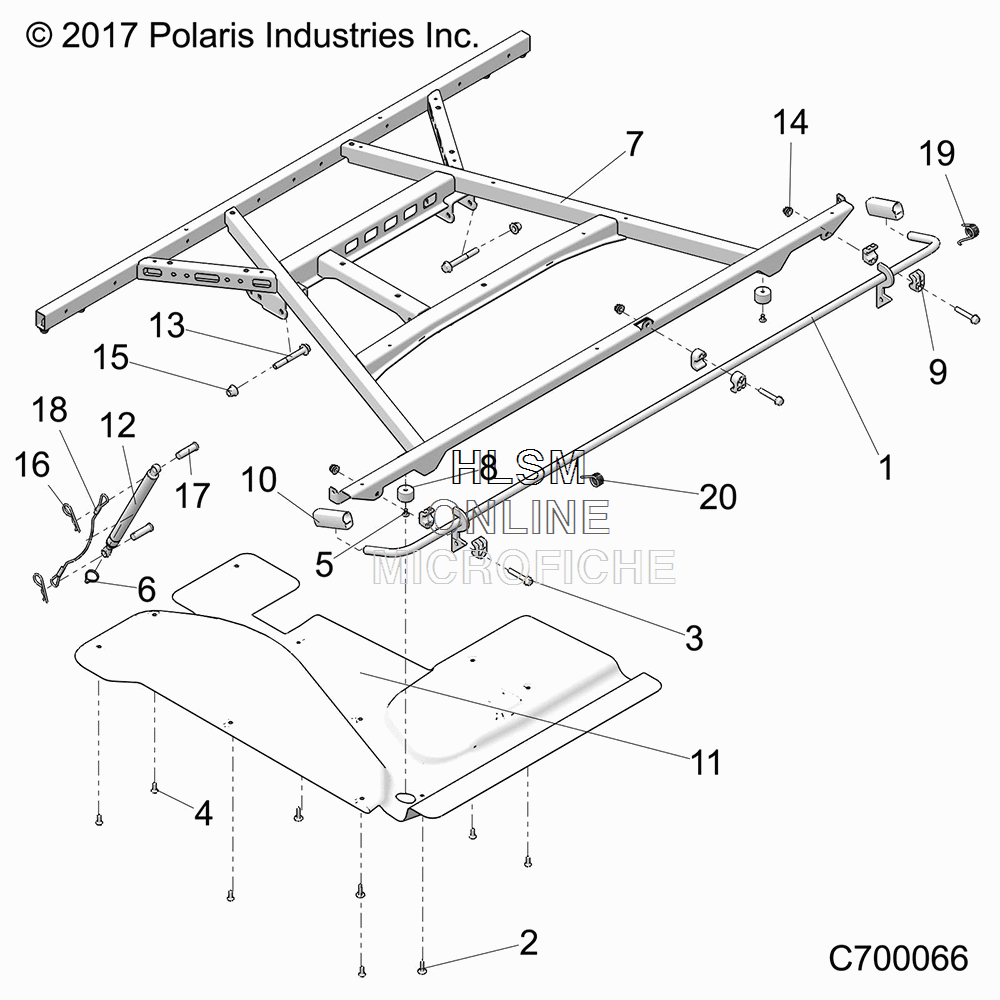

BOX SUPPORT W/SHOCK для Polaris RANGER XP 1000 HVAC EDITION EPS SUNSET RED (R18RRU99AS) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1024020-458 WELD-BOX LATCH, HVAC, BLACK
    WELD-BOX LATCH, HVAC, BLACK
  • 2
    7519650 SCR-TXTH-M6X1.0X25 RIE
    SCR-TXTH-M6X1.0X25 RIE
  • 3
    7517793 SCR-M8X1.25X50 HX/FL-Y
    SCR-M8X1.25X50 HX/FL-Y
  • 4
    7520803 SCR-TXPH-#14X5/8 HI/LO CLR
    SCR-TXPH-#14X5/8 HI/LO CLR
  • 5
    7621460 RIVET-POP3/16(.376-.500)AL-LFB
    RIVET-POP3/16(.376-.500)AL-LFB
  • 6
    7080138 PANDUIT STRAP
    PANDUIT STRAP
  • 7
    1023332-329 WELD-BOX SUPPORT, HVAC, BLACK
    WELD-BOX SUPPORT, HVAC, BLACK
  • 8
    5414343 BUMPER-BOX
    BUMPER-BOX
  • 9
    5434226 BUSHING-BOX, LATCH
    BUSHING-BOX, LATCH
  • 10
    5450278 HANDLE-BOX, LATCH
    HANDLE-BOX, LATCH
  • 11
    5265857 SHIELD-BOX, CARGO, HVAC
    SHIELD-BOX, CARGO, HVAC
  • 12
    7044674 SHOCK-BOX, DUMP, SM, SINGLE LOBE
    SHOCK-BOX, DUMP, SM, SINGLE LOBE
  • 13
    7519363 SCR-HXFL-M10X1.25X80 8.8 ZOD
    SCR-HXFL-M10X1.25X80 8.8 ZOD
  • 14
    7547317 NUT-M8X1.25, HXFLG, NYLON INS
    NUT-M8X1.25, HXFLG, NYLON INS
  • 15
    7547333 NUT-M10X1.25, FLG, NYLOC-OLIVE D
    NUT-M10X1.25, FLG, NYLOC-OLIVE D
  • 16
    7661067 CLIP-HITCHPIN .148X3 1/16
    CLIP-HITCHPIN .148X3 1/16
  • 17
    7661878 PIN-CLEVIS, 1/2 X 1 3/4
    PIN-CLEVIS, 1/2 X 1 3/4
  • 18
    7082244 CABLE-DUMP, BED, LIMITER
    CABLE-DUMP, BED, LIMITER
  • 19
    7044324 SPRING-LATCH
    SPRING-LATCH
  • 20
    7044325 SPRING-LATCH
    SPRING-LATCH
