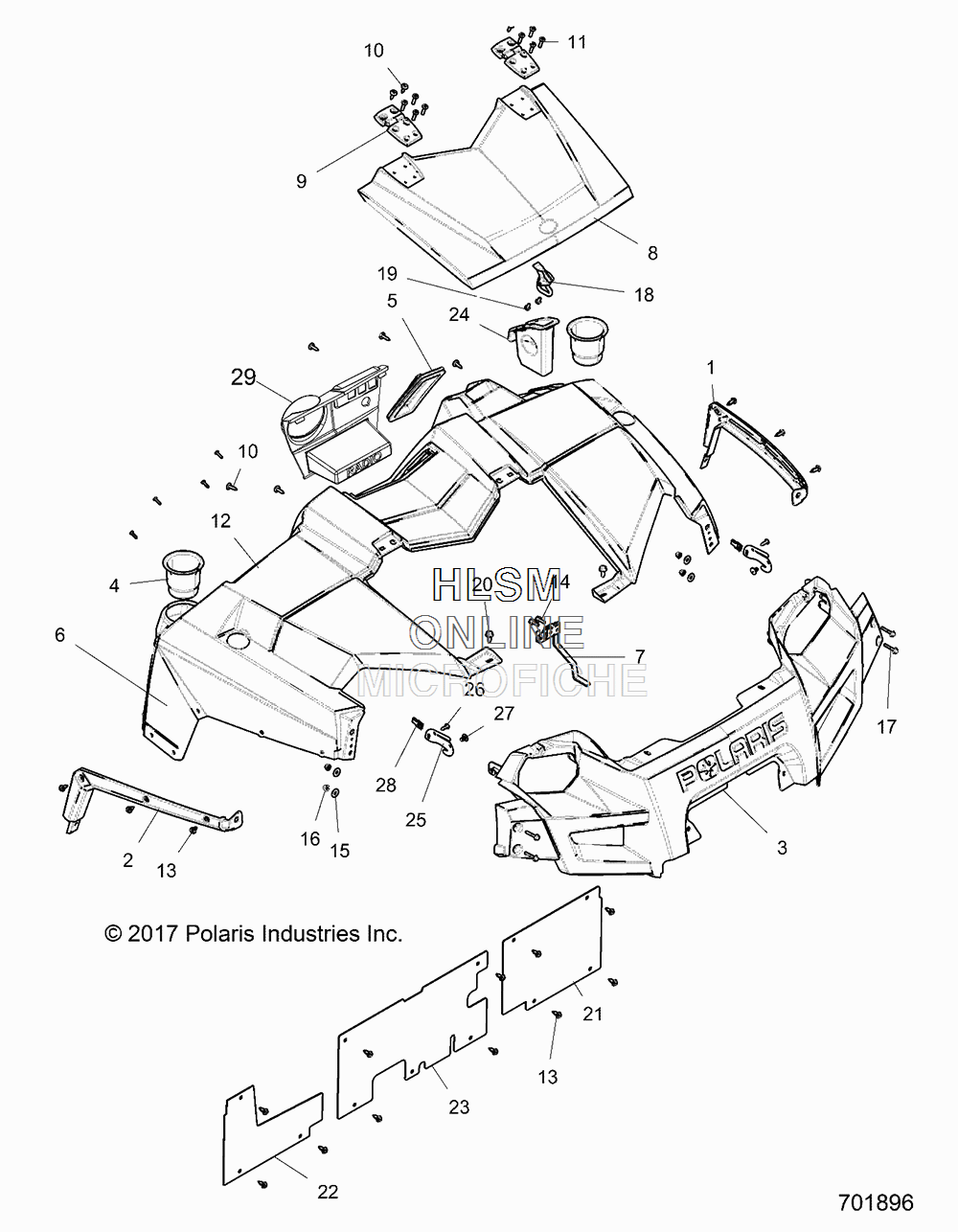

HOOD - BUMPER - FENDER - WINCH COVER для Polaris RANGER CREW 570-6 SAGE GREEN (R18RDA57A1) - 2018 года выпуска
-
№АртикулНазвание
-
15437568-070 FENDER, FRONT W/FLARE, BLACK, LEFT HANDFENDER, FRONT W/FLARE, BLACK, LEFT HAND
-
25437569-070 FENDER, FRONT W/FLARE, BLACK, RIGHT HANDFENDER, FRONT W/FLARE, BLACK, RIGHT HAND
-
35437575-070 FASCIA, FRONT, BLACKFASCIA, FRONT, BLACK
-
45436836 HOLDER, CUPHOLDER, CUP
-
55413557 GROMMET-SHIFT LEVERGROMMET-SHIFT LEVER
-
62207127 K-HOOD W/DASH, RGR FS CRW, SAGEBRUSH GREEN METALLIC (INCL DECAL)K-HOOD W/DASH, RGR FS CRW, SAGEBRUSH GREEN METALLIC (INCL DECAL)
-
65437573-498 HOOD-W/DASH, RNGR, SAGEBRUSH GREEN METALLICHOOD-W/DASH, RNGR, SAGEBRUSH GREEN METALLIC
-
72010437 ASM., HOOD LATCHASM., HOOD LATCH
-
85438256-498 HOOD, CENTER ACCESS, SAGEBRUSH GREEN METALLICHOOD, CENTER ACCESS, SAGEBRUSH GREEN METALLIC
-
95437902 ASM., HINGEASM., HINGE
-
107517685 SCREWSCREW
-
117518158 SCREWSCREW
-
127512026 SCREWSCREW
-
137661855 RIVETRIVET
-
147518613 BOLTBOLT
-
157555935 WASHER-.28 X .81 X .06, ST-MWASHER-.28 X .81 X .06, ST-M
-
167547453 NUT-HXFL-M6X1.0 8 ZB3 NYLNUT-HXFL-M6X1.0 8 ZB3 NYL
-
177520292 SCREWSCREW
-
185632560 LATCH, HOODLATCH, HOOD
-
197519060 SCREWSCREW
-
207518555 BOLT-M8X1.25X20, HXFLGBOLT-M8X1.25X20, HXFLG
-
215452657-070 PLATE-WHEEL WELL, 3P, FS, BLACKPLATE-WHEEL WELL, 3P, FS, BLACK
-
225452781-070 PLATE-WHEEL WELL, 3P, FS, PS, BLACKPLATE-WHEEL WELL, 3P, FS, PS, BLACK
-
235452782-070 PLATE-WHEEL WELL, 3P, FS, CEN, BLACKPLATE-WHEEL WELL, 3P, FS, CEN, BLACK
-
245415693 STORAGE-PHONESTORAGE-PHONE
-
255262056 BRKT-HEADLIGHTBRKT-HEADLIGHT
-
267519045 SCR-TX TRUSS-#14X3/4, HI/LO ZBKSCR-TX TRUSS-#14X3/4, HI/LO ZBK
-
277670088 CLIP-PLASTIC DART, NYLONCLIP-PLASTIC DART, NYLON
-
287670145 NUT-1/4-20, U-TYPE(.080-.170)NUT-1/4-20, U-TYPE(.080-.170)
-
295438585-070 PANEL-DASH, CONTROLS, BLACKPANEL-DASH, CONTROLS, BLACK
