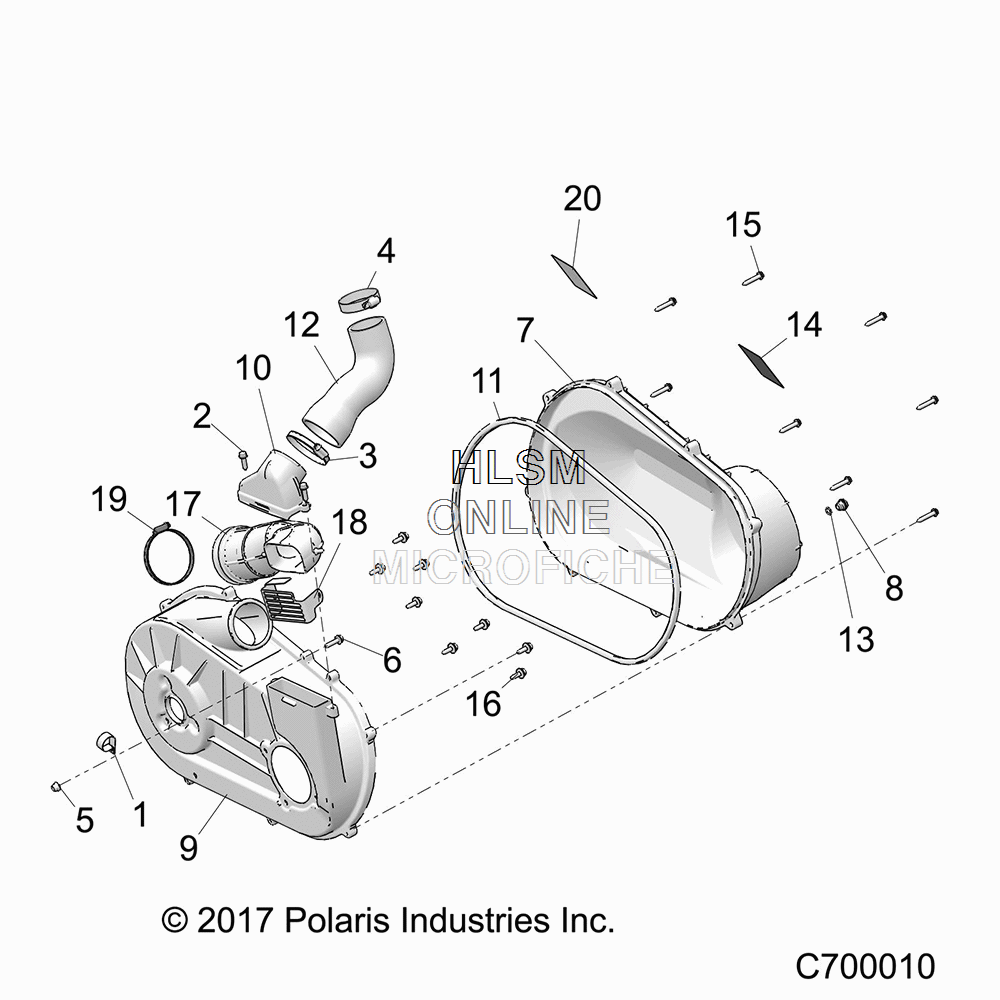

CLUTCH COVER W/ DUCTING для Polaris RANGER CREW 570-6 SAGE GREEN (R18RDA57A1) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    7081854 CLAMP, VINYL COATED
    CLAMP, VINYL COATED
  • 2
    7512098 SCREW
    SCREW
  • 3
    7080707 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 4
    7080451 CLAMP, HOSE
    CLAMP, HOSE
  • 5
    7547339 NUT
    NUT
  • 6
    7518533 BOLT
    BOLT
  • 7
    2207123 K-CVR, CLUTCH, OTR, RGR MS/FS (INCL. OUTER COVER, PLUG, O-RING, INCL DECAL)
    K-CVR, CLUTCH, OTR, RGR MS/FS (INCL. OUTER COVER, PLUG, O-RING, INCL DECAL)
  • 8
    5434264 PLUG, DRAIN
    PLUG, DRAIN
  • 9
    2634188 ASM., COVER, CLUTCH, INNER (INCL. 2, 9, 10, 17)
    ASM., COVER, CLUTCH, INNER (INCL. 2, 9, 10, 17)
  • 9
    5454520 COVER-CLUTCH, INNER
    COVER-CLUTCH, INNER
  • 10
    5438891 DUCT, CLUTCH, AIR INLET
    DUCT, CLUTCH, AIR INLET
  • 11
    5521831 SEAL, OUTER, CLUTCH COVER
    SEAL, OUTER, CLUTCH COVER
  • 12
    5414501 HOSE, INTAKE, CLUTCH
    HOSE, INTAKE, CLUTCH
  • 13
    5410542 O-RING
    O-RING
  • 14
    7177469 DECAL, BELT, CAUTION/CHECK
    DECAL, BELT, CAUTION/CHECK
  • 15
    7519330 SCREW
    SCREW
  • 16
    7519278 ASM., BOLT/WASHER, 20 MM
    ASM., BOLT/WASHER, 20 MM
  • 17
    5416458 HOSE-CLUTCH, AIR OUTLET
    HOSE-CLUTCH, AIR OUTLET
  • 18
    5264754 BRKT-SCREEN, BELT
    BRKT-SCREEN, BELT
  • 19
    7081279 CLAMP-BAND, NARROW 70-90MM
    CLAMP-BAND, NARROW 70-90MM
  • 20
    7175488 DECAL, WARNING, CLUTCH COVER
    DECAL, WARNING, CLUTCH COVER
