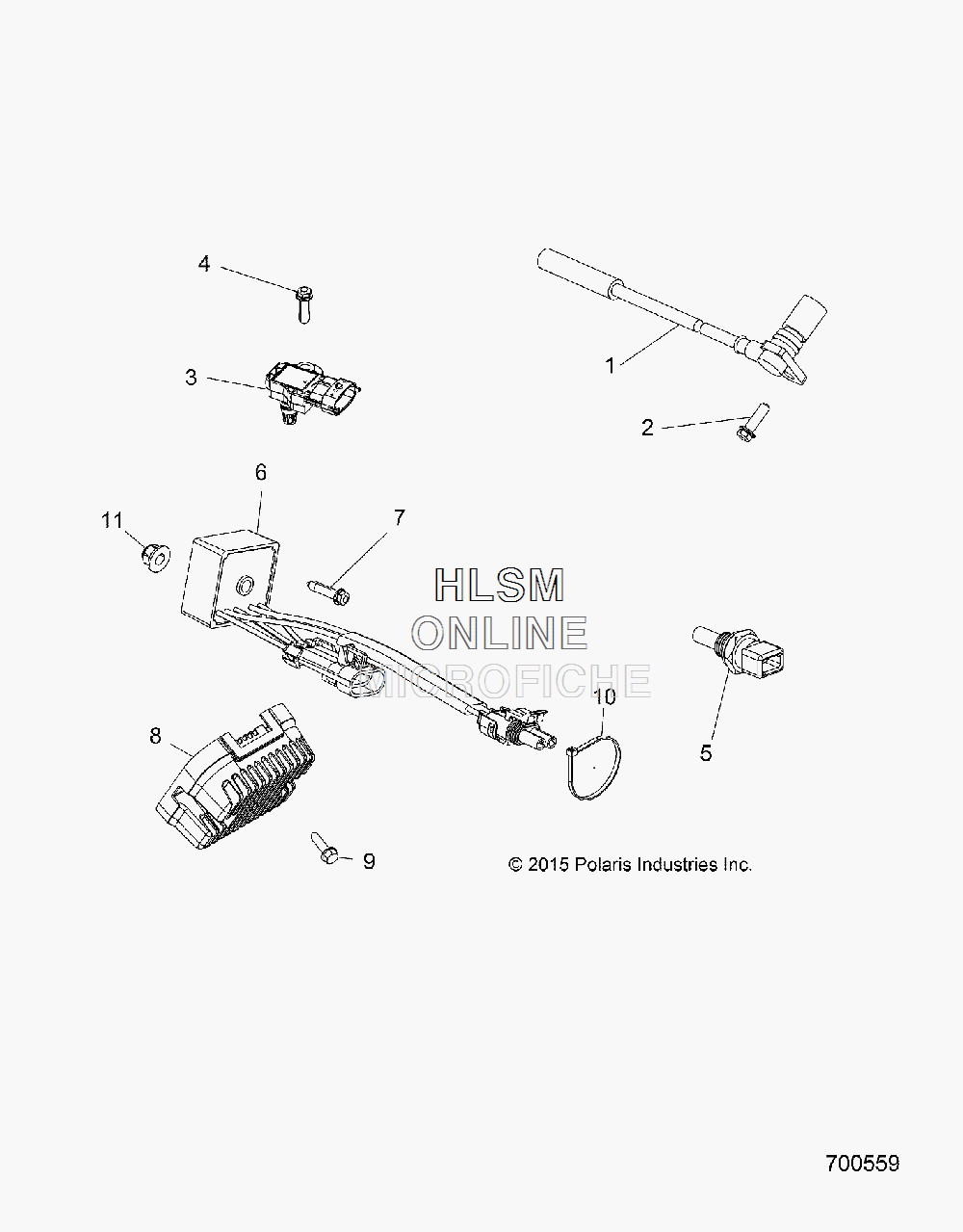

SENSORS для Polaris RANGER CREW 1000 XP PS MD (R18RVE99NX) - 2018 года выпуска
-
№АртикулНазвание
-
12411719 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
27518576 SCREWSCREW
-
32411528 SENSOR, T-MAPSENSOR, T-MAP
-
47518576 SCREWSCREW
-
54010644 SENSOR, THERMOSTERSENSOR, THERMOSTER
-
64012829 RELAY, SOLID STATE, 9 AMP, LONGRELAY, SOLID STATE, 9 AMP, LONG
-
77518612 BOLTBOLT
-
84016868 REGULATOR-3PH, 50A, SERIES, HISPDREGULATOR-3PH, 50A, SERIES, HISPD
-
97519342 SCREWSCREW
-
107080138 CABLE TIECABLE TIE
-
117547339 NUTNUT
