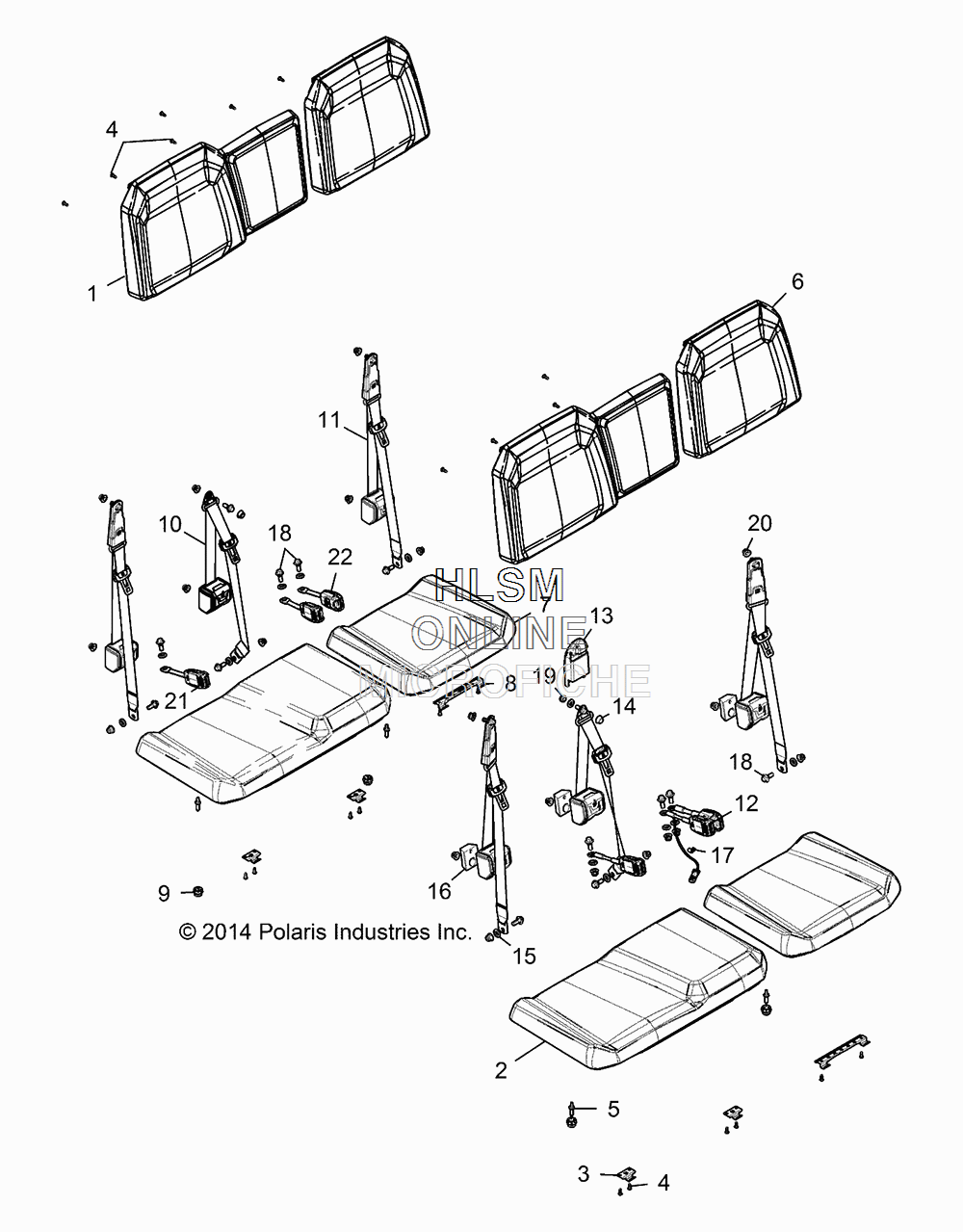

SEAT для Polaris RANGER CREW 1000 XP PS MD (R18RVE99NX) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2686920 ASM-SEAT, BACK, 60, BLACK/DK.MARC
    ASM-SEAT, BACK, 60, BLACK/DK.MARC
  • 2
    2686922 ASM-SEAT, BTM, 60, BLACK/DK.MARC (INCL. 3, QTY 8 OF 4, QTY 2 OF 5)
    ASM-SEAT, BTM, 60, BLACK/DK.MARC (INCL. 3, QTY 8 OF 4, QTY 2 OF 5)
  • 3
    5256836 BRACKET, SEAT HINGE
    BRACKET, SEAT HINGE
  • 4
    7519045 SCREW
    SCREW
  • 5
    5910404 PIN, SEAT LATCH
    PIN, SEAT LATCH
  • 6
    2686921 ASM-SEAT, BACK, 40, BLACK/DK.MARC
    ASM-SEAT, BACK, 40, BLACK/DK.MARC
  • 7
    2686923 ASM-SEAT, BTM, 40, BLACK/DK.MARC
    ASM-SEAT, BTM, 40, BLACK/DK.MARC
  • 7
    2687527 ASM-SEAT, BTM, 40, BLACK/DK.MARC, DS
    ASM-SEAT, BTM, 40, BLACK/DK.MARC, DS
  • 8
    5256837 BRACKET, SEAT HINGE, DOUBLE
    BRACKET, SEAT HINGE, DOUBLE
  • 9
    5439179 GROMMET
    GROMMET
  • 10
    2635052 ASM., SEAT BELT, 3PT, CENTER
    ASM., SEAT BELT, 3PT, CENTER
  • 11
    2635118 ASM., SEAT BELT, 3PT
    ASM., SEAT BELT, 3PT
  • 12
    2635609 BUCKLE, SEATBELT, 90, SWITCH
    BUCKLE, SEATBELT, 90, SWITCH
  • 13
    5415020 COVER, SEAT BELT MOUNT
    COVER, SEAT BELT MOUNT
  • 14
    5450708 CAP, BOLT HEAD
    CAP, BOLT HEAD
  • 15
    5813829 WASHER, SEAT BELT, RUBBER
    WASHER, SEAT BELT, RUBBER
  • 16
    5814036 PAD, REAR, SEAT BASE
    PAD, REAR, SEAT BASE
  • 17
    7081246 CLAMP, WIRE/TUBE
    CLAMP, WIRE/TUBE
  • 18
    7519770 SCREW
    SCREW
  • 19
    7540000 NUT, NYLOC
    NUT, NYLOC
  • 20
    7547441 NUT
    NUT
  • 21
    2635235 BUCKLE, SEATBELT, 9.6, PASSENGER
    BUCKLE, SEATBELT, 9.6, PASSENGER
  • 22
    2635223 BUCKLE, SEATBELT, 9.6, DRIVER
    BUCKLE, SEATBELT, 9.6, DRIVER
