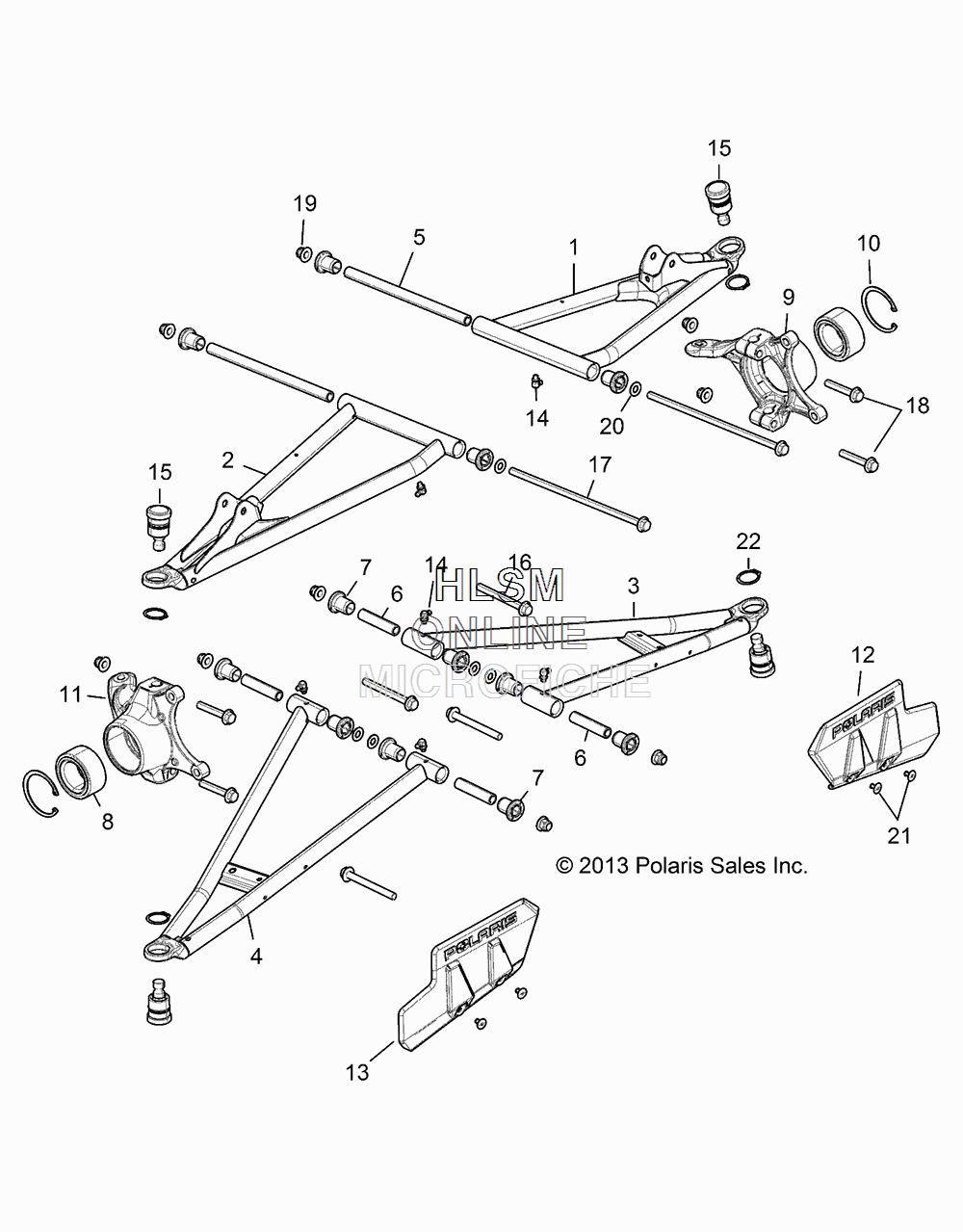

CONTROL ARMS - FRONT для Polaris RANGER CREW 1000 XP PS MD (R18RVE99NX) - 2018 года выпуска
-
№АртикулНазвание
-
11020887-458 A-ARM, FRONT, UPPER, LEFT HAND, BLACKA-ARM, FRONT, UPPER, LEFT HAND, BLACK
-
21020888-458 A-ARM, FRONT, UPPER, RIGHT HAND, BLACKA-ARM, FRONT, UPPER, RIGHT HAND, BLACK
-
31019668-458 A-ARM, FRONT, LOWER, LEFT HAND, BLACKA-ARM, FRONT, LOWER, LEFT HAND, BLACK
-
41019669-458 A-ARM, FRONT, LOWER, RIGHT HAND, BLACKA-ARM, FRONT, LOWER, RIGHT HAND, BLACK
-
55138791 SHAFT, PIVOTSHAFT, PIVOT
-
65138797 SHAFT, PIVOTSHAFT, PIVOT
-
75439874 BUSHING, STANDARDBUSHING, STANDARD
-
83514699 BEARING, BALL, SEALEDBEARING, BALL, SEALED
-
95139976 CARRIER, BEARING, FRONT, LEFT HANDCARRIER, BEARING, FRONT, LEFT HAND
-
107710780 RING, RETAINING, INTERNALRING, RETAINING, INTERNAL
-
115139977 CARRIER, BEARING, FRONT, RIGHT HANDCARRIER, BEARING, FRONT, RIGHT HAND
-
125437544-070 SHIELD, CV, FRONT, LEFT HAND, BLACKSHIELD, CV, FRONT, LEFT HAND, BLACK
-
135437545-070 SHIELD, CV, FRONT, RIGHT HAND, BLACKSHIELD, CV, FRONT, RIGHT HAND, BLACK
-
147080510 FITTING, ZERKFITTING, ZERK
-
157081924 JOINT, BALLJOINT, BALL
-
167519043 SCREWSCREW
-
177519087 SCREWSCREW
-
187519306 SCREWSCREW
-
197547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
207556153 WASHERWASHER
-
217621472 RIVETRIVET
-
227710533 RING, RETAINER, EXTERNALRING, RETAINER, EXTERNAL
