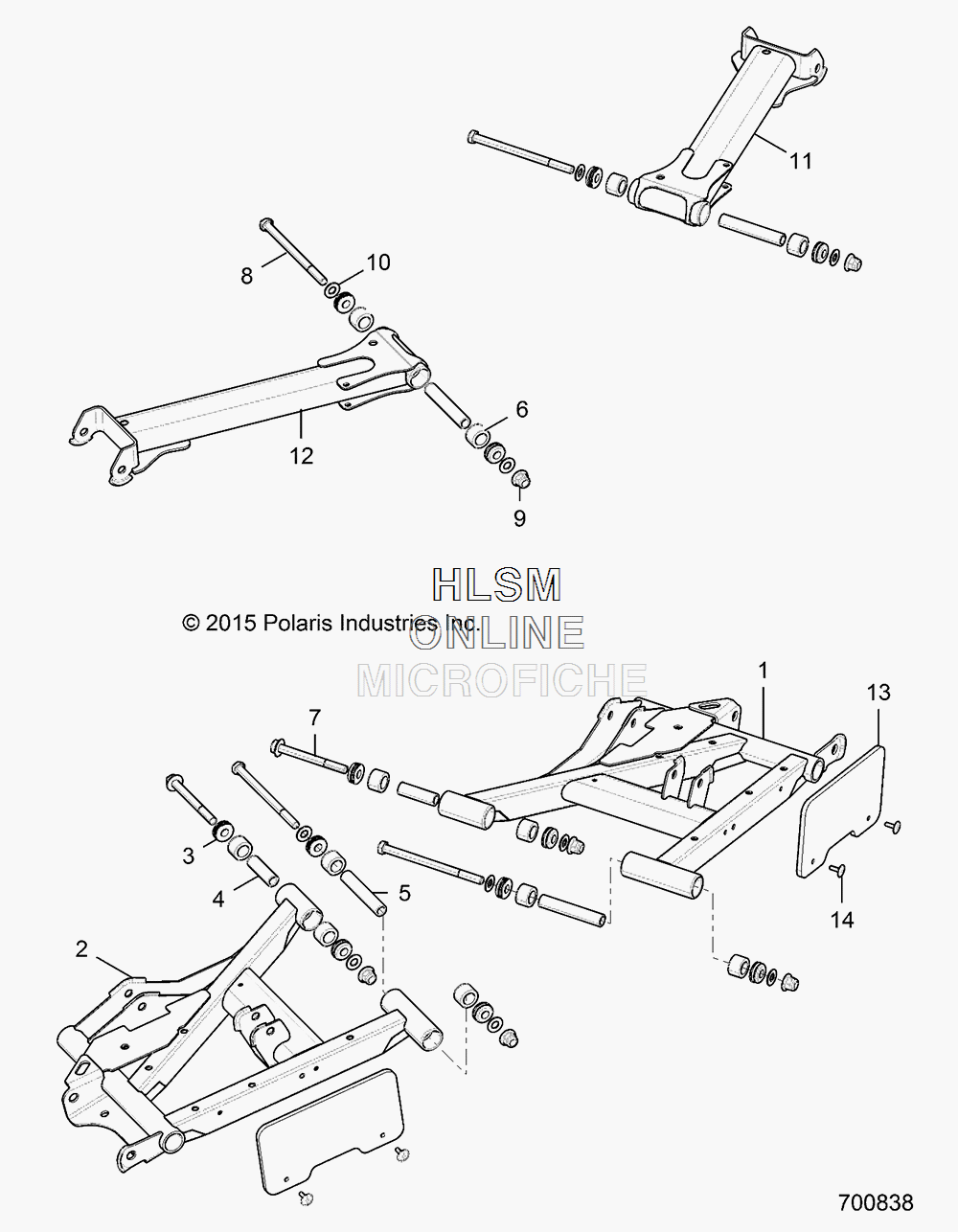

REAR CONTROL ARMS для Polaris GENERAL 1000 4P MD (R18RHE99NK) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1021414-458 WELD-A-ARM, REAR, LOWER, LEFT HAND, 60, BLACK
    WELD-A-ARM, REAR, LOWER, LEFT HAND, 60, BLACK
  • 2
    1021415-458 WELD-A-ARM, REAR, LOWER, RIGHT HAND, 60, BLACK
    WELD-A-ARM, REAR, LOWER, RIGHT HAND, 60, BLACK
  • 3
    1543611 ASM-PIVOT CAP, SEALED, M10
    ASM-PIVOT CAP, SEALED, M10
  • 4
    5139966 SHAFT-PIVOT, SHORT, M10
    SHAFT-PIVOT, SHORT, M10
  • 5
    5139967 SHAFT-PIVOT, LONG, M10
    SHAFT-PIVOT, LONG, M10
  • 6
    5452233 BUSHING-STANDARD, SUSP, M10
    BUSHING-STANDARD, SUSP, M10
  • 7
    7519043 SCR-HXFL-M10X1.25X95 10.9 ZOD
    SCR-HXFL-M10X1.25X95 10.9 ZOD
  • 8
    7519897 SCR-HH-M10X1.25X140, 10.9 ZOD
    SCR-HH-M10X1.25X140, 10.9 ZOD
  • 9
    7547333 NUT-M10X1.25, FLG, NYLOC-OLIVE D
    NUT-M10X1.25, FLG, NYLOC-OLIVE D
  • 10
    7556153 WASHER-3/8 FW SAE STL THRU-HRD
    WASHER-3/8 FW SAE STL THRU-HRD
  • 11
    1021412-458 WELD-A-ARM, REAR, UPPER, LEFT HAND, 60, BLACK
    WELD-A-ARM, REAR, UPPER, LEFT HAND, 60, BLACK
  • 12
    1021413-458 WELD-A-ARM, REAR, UPPER, RIGHT HAND, 60, BLACK
    WELD-A-ARM, REAR, UPPER, RIGHT HAND, 60, BLACK
  • 13
    5451336-070 SHIELD-CV, REAR, BLACK
    SHIELD-CV, REAR, BLACK
  • 14
    7621467 RVT-3/16(.251-.375)ST-ST-LF-B
    RVT-3/16(.251-.375)ST-ST-LF-B
