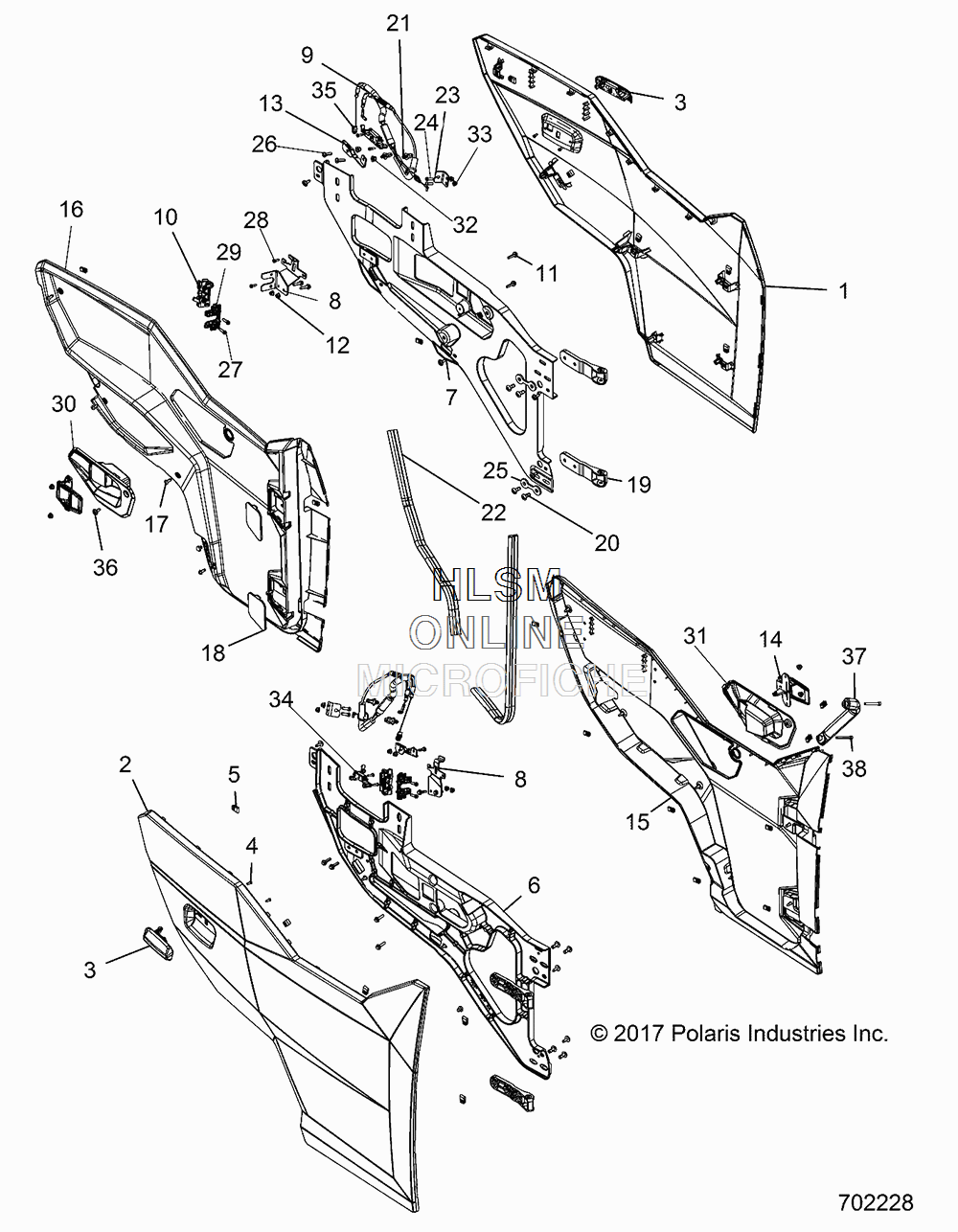

DOORS- FRONT для Polaris GENERAL 1000 4P MD (R18RHE99NK) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5454342-666 PANEL-DOOR, OUT, FRONT, LEFT HAND, PEARL BLACK
    PANEL-DOOR, OUT, FRONT, LEFT HAND, PEARL BLACK
  • 2
    5454343-666 PANEL-DOOR, OUT, FRONT, RIGHT HAND, PEARL BLACK
    PANEL-DOOR, OUT, FRONT, RIGHT HAND, PEARL BLACK
  • 3
    7082353 ASM-HANDLE, DOOR, ALUM, LEFT HAND, OUT
    ASM-HANDLE, DOOR, ALUM, LEFT HAND, OUT
  • 3
    7082354 ASM-HANDLE, DOOR, ALUM, RIGHT HAND, OUT
    ASM-HANDLE, DOOR, ALUM, RIGHT HAND, OUT
  • 4
    7512026 SCR-#10X3/4-HI/LO-PN-T25, TRX-M
    SCR-#10X3/4-HI/LO-PN-T25, TRX-M
  • 5
    7547674 NUT-M6-1.0, U-TYPE (2.5-3.8)
    NUT-M6-1.0, U-TYPE (2.5-3.8)
  • 6
    5633704 FRAME-DOOR, CAST, LEFT HAND
    FRAME-DOOR, CAST, LEFT HAND
  • 6
    5633705 FRAME-DOOR, CAST, RIGHT HAND
    FRAME-DOOR, CAST, RIGHT HAND
  • 7
    7519112 SCR-TXTH-M6X1.0X20 T40 ZPB
    SCR-TXTH-M6X1.0X20 T40 ZPB
  • 8
    5261425 BRKT-DOOR LATCH MNT, LEFT HAND
    BRKT-DOOR LATCH MNT, LEFT HAND
  • 8
    5261426 BRKT-DOOR LATCH MNT, RIGHT HAND
    BRKT-DOOR LATCH MNT, RIGHT HAND
  • 9
    5340555 ROD-LATCH, LEFT HAND, FRONT OUT DR, HNDL
    ROD-LATCH, LEFT HAND, FRONT OUT DR, HNDL
  • 9
    5340556 ROD-LATCH, RIGHT HAND, FRONT OUT DR, HNDL
    ROD-LATCH, RIGHT HAND, FRONT OUT DR, HNDL
  • 10
    7082331 ASM-LATCH, ROTARY, 2 STAGE, LEFT HAND
    ASM-LATCH, ROTARY, 2 STAGE, LEFT HAND
  • 10
    7082332 ASM-LATCH, ROTARY, 2 STAGE, RIGHT HAND
    ASM-LATCH, ROTARY, 2 STAGE, RIGHT HAND
  • 11
    7518533 SCR-HXFL-M6X1.0X25 8.8 RIE
    SCR-HXFL-M6X1.0X25 8.8 RIE
  • 12
    7547453 NUT-HXFL-M6X1.0 8 ZB3 NYL
    NUT-HXFL-M6X1.0 8 ZB3 NYL
  • 13
    5340557 ROD-LATCH, LEFT HAND, FRONT DR, HNDL
    ROD-LATCH, LEFT HAND, FRONT DR, HNDL
  • 13
    5340558 ROD-LATCH, RIGHT HAND, FRONT DR, HNDL
    ROD-LATCH, RIGHT HAND, FRONT DR, HNDL
  • 14
    7082216 ASM-HANDLE, DOOR INNER
    ASM-HANDLE, DOOR INNER
  • 15
    5454346-070 PANEL-DOOR, INNER, FRONT, LEFT HAND, BLACK
    PANEL-DOOR, INNER, FRONT, LEFT HAND, BLACK
  • 16
    5454347-070 PANEL-DOOR, INNER, FRONT, RIGHT HAND, BLACK
    PANEL-DOOR, INNER, FRONT, RIGHT HAND, BLACK
  • 17
    7519045 SCR-TX TRUSS-#14X3/4, HI/LO ZBK
    SCR-TX TRUSS-#14X3/4, HI/LO ZBK
  • 18
    5452517-070 COVER-DOOR HINGE MOUNT
    COVER-DOOR HINGE MOUNT
  • 19
    5633642-329 HINGE-DOOR CAST, BLACK
    HINGE-DOOR CAST, BLACK
  • 20
    7518514 SCR-TXTH-M8X1.25X20 8.8 ZOD
    SCR-TXTH-M8X1.25X20 8.8 ZOD
  • 21
    7518613 SCR-HXFL-M6X1.0X20 8.8 ZOD NYL
    SCR-HXFL-M6X1.0X20 8.8 ZOD NYL
  • 22
    5454527 SEAL-DOOR, FRT
    SEAL-DOOR, FRT
  • 23
    5452903-070 HANDLE-GRAB, PASSENGER, BLACK
    HANDLE-GRAB, PASSENGER, BLACK
  • 24
    7518656 SCR-TXPH-M6X1.0X15 GR5 ZOD NYL
    SCR-TXPH-M6X1.0X15 GR5 ZOD NYL
  • 25
    5262743-329 BRKT-DOOR CLAMP ECOAT
    BRKT-DOOR CLAMP ECOAT
  • 26
    7081305 CLIP-U SPEED NUT
    CLIP-U SPEED NUT
  • 27
    7519297 SCR-HXFLG, M6X1.0X25, 10.9
    SCR-HXFLG, M6X1.0X25, 10.9
  • 28
    7512026 SCR-#10X3/4-HI/LO-PN-T25, TRX-M
    SCR-#10X3/4-HI/LO-PN-T25, TRX-M
  • 29
    5454510 CLIP-RETAINER
    CLIP-RETAINER
  • 30
    5452290-070 TRIM-DOOR, INNER, LEFT HAND, BLACK
    TRIM-DOOR, INNER, LEFT HAND, BLACK
  • 31
    5452291-070 TRIM-DOOR, INNER, RIGHT HAND, BLACK
    TRIM-DOOR, INNER, RIGHT HAND, BLACK
  • 32
    7547274 NUT-M6 FLANGE, NYLOC
    NUT-M6 FLANGE, NYLOC
  • 33
    7546703 NUT-6MM X 1 NYLOK-Z
    NUT-6MM X 1 NYLOK-Z
  • 34
    7082353 ASM-HANDLE, DOOR, ALUM, LEFT HAND, OUT
    ASM-HANDLE, DOOR, ALUM, LEFT HAND, OUT
  • 35
    5454637 CLIP-REAR DOOR
    CLIP-REAR DOOR
  • 36
    7519112 SCR-TXTH-M6X1.0X20 T40 ZPB
    SCR-TXTH-M6X1.0X20 T40 ZPB
  • 37
    5452904-070 DOOR-GRAB HANDLE, RIGHT HAND, BLACK
    DOOR-GRAB HANDLE, RIGHT HAND, BLACK
  • 38
    7520482 SCR-SH-M6X1.0X50 8.8 ZPB
    SCR-SH-M6X1.0X50 8.8 ZPB
