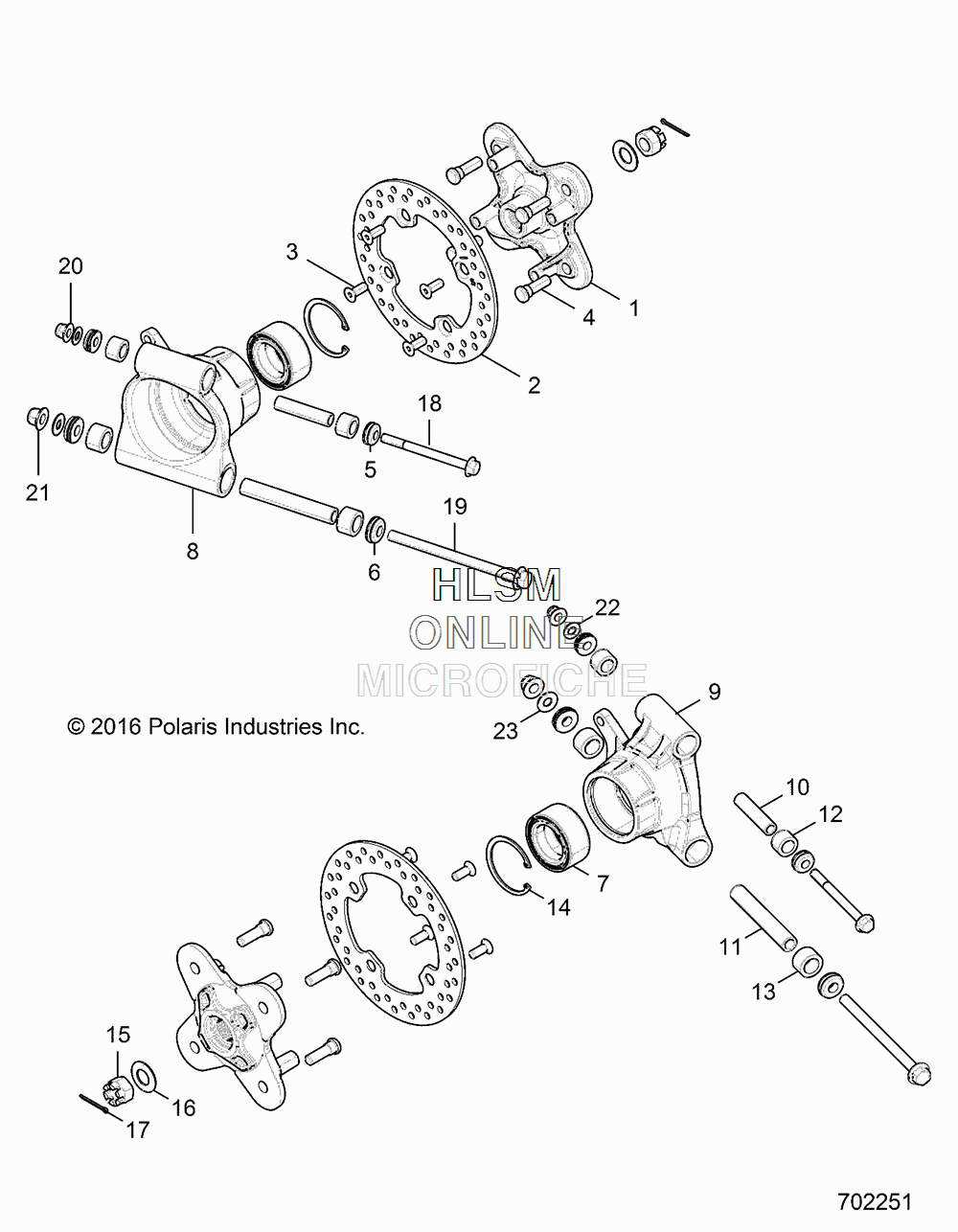

REAR CARRIER для Polaris GENERAL 1000 4P MD (R18RHE99NK) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5141366-458 HUB-WHEEL, MACH, BLACK
    HUB-WHEEL, MACH, BLACK
  • 2
    5263266 DISC-BRAKE, FRONT
    DISC-BRAKE, FRONT
  • 3
    7518978 SCR-M10X1.5X20 8.8 TXCS FL ZOD
    SCR-M10X1.5X20 8.8 TXCS FL ZOD
  • 4
    7519753 STUD-WHEEL, M12-1.5
    STUD-WHEEL, M12-1.5
  • 5
    1543611 ASM-PIVOT CAP, SEALED, M10
    ASM-PIVOT CAP, SEALED, M10
  • 6
    1543612 ASM-PIVOT CAP, SEALED, M12
    ASM-PIVOT CAP, SEALED, M12
  • 7
    3514924 BEARING-BALL, SEALED, 44X72X33.1
    BEARING-BALL, SEALED, 44X72X33.1
  • 8
    5139979 CARRIER-BEARING, WHEEL, LEFT HAND
    CARRIER-BEARING, WHEEL, LEFT HAND
  • 9
    5139980 CARRIER-BEARING, WHEEL, RIGHT HAND
    CARRIER-BEARING, WHEEL, RIGHT HAND
  • 10
    5139990 SHAFT-PIVOT, SHORT, M10
    SHAFT-PIVOT, SHORT, M10
  • 11
    5139991 SHAFT-PIVOT, LONG, M12
    SHAFT-PIVOT, LONG, M12
  • 12
    5452233 BUSHING-STANDARD, SUSP, M10
    BUSHING-STANDARD, SUSP, M10
  • 13
    5452271 BUSHING-STANDARD, SUSP, M12
    BUSHING-STANDARD, SUSP, M12
  • 14
    7710440 RING-RETAINING, 2.875, INTERNAL
    RING-RETAINING, 2.875, INTERNAL
  • 15
    7547337 NUT-M18X1.5, CASTLE, ZINC/YELLOW
    NUT-M18X1.5, CASTLE, ZINC/YELLOW
  • 16
    7557128 WSHR-BLVL, 19X42X4.5-5.08
    WSHR-BLVL, 19X42X4.5-5.08
  • 17
    7661404 PIN-COTTER 1/8X1 1/2-Y
    PIN-COTTER 1/8X1 1/2-Y
  • 18
    7519365 SCR-HXFL-M10X1.25X115 10.9 ZOD
    SCR-HXFL-M10X1.25X115 10.9 ZOD
  • 19
    7520294 SCR-HXFL-M12X1.5X170 10.9 ZOD
    SCR-HXFL-M12X1.5X170 10.9 ZOD
  • 20
    7547333 NUT-M10X1.25, FLG, NYLOC-OLIVE D
    NUT-M10X1.25, FLG, NYLOC-OLIVE D
  • 21
    7547334 NUT-M12X1.5, FLG, NYLOC-OLIVE D
    NUT-M12X1.5, FLG, NYLOC-OLIVE D
  • 22
    7556153 WASHER-3/8 FW SAE STL THRU-HRD
    WASHER-3/8 FW SAE STL THRU-HRD
  • 23
    7556212 WASHER-7/16 SAE, STF, THRU-HRD-Y
    WASHER-7/16 SAE, STF, THRU-HRD-Y
