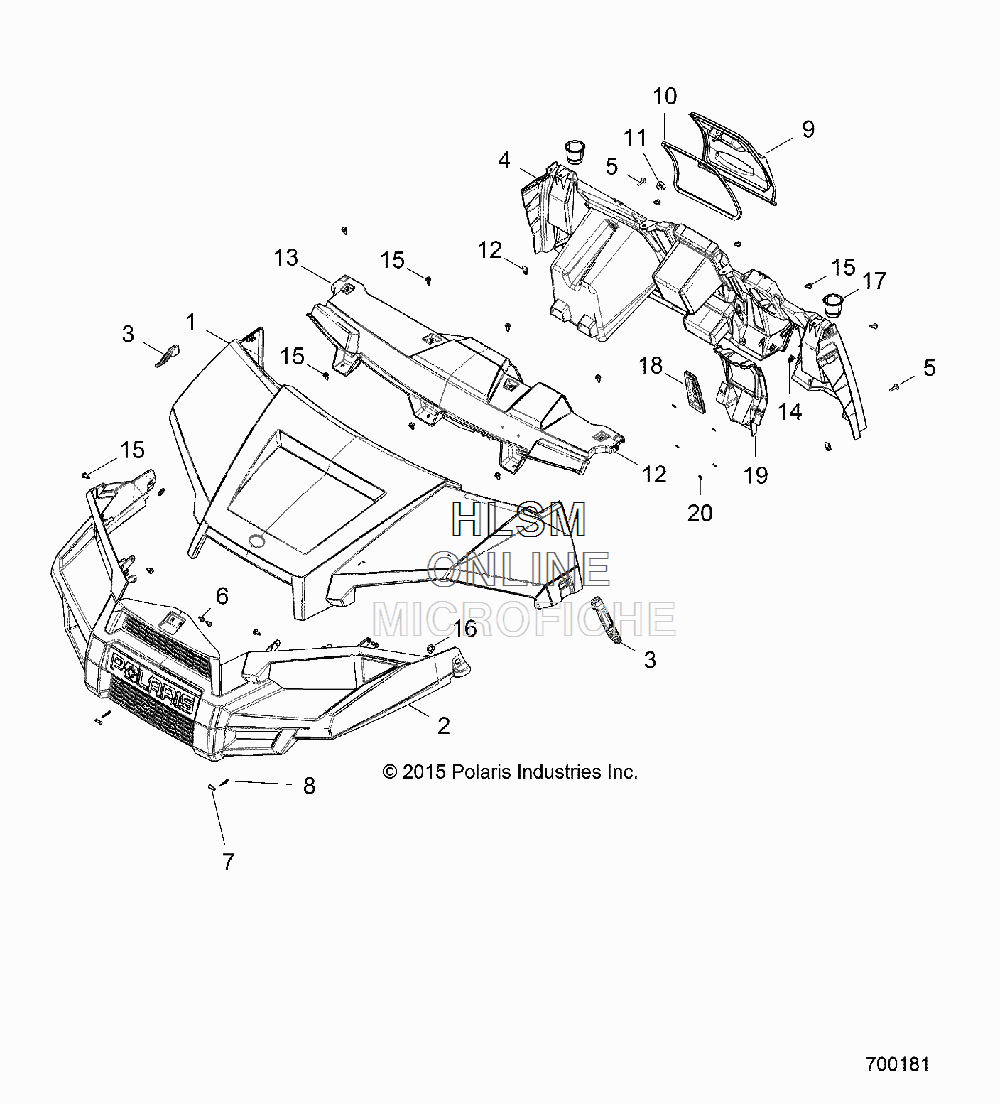

HOOD W/ DASH AND GRILL для Polaris RGR 570 MD (R02) - [R17RMA57N1] - 2017 года выпуска`
-
№АртикулНазвание
-
15451006-498 HOOD, (SAGE BRUSH GREEN)HOOD, (SAGE BRUSH GREEN)
-
25451005-070 FASCIA-FRONT,RANGER,(BLACK)FASCIA-FRONT,RANGER,(BLACK)
-
35415295 STRAP, HOOD RETAINERSTRAP, HOOD RETAINER
-
45451129-070 DASH-PANEL,LOWER,CPI,(BLACK)DASH-PANEL,LOWER,CPI,(BLACK)
-
57519650 SCREWSCREW
-
67519045 SCREWSCREW
-
77661843 PIN, CLEVISPIN, CLEVIS
-
87662139 PIN, HITCHPIN, HITCH
-
95451007-070 COVER, GLOVE BOX, (BLACK)COVER, GLOVE BOX, (BLACK)
-
105522052 SEAL, GLOVE BOXSEAL, GLOVE BOX
-
115412504 GROMMET, RUBBER, MOUNTGROMMET, RUBBER, MOUNT
-
127547674 NUTNUT
-
135451009-070 DASH-PANEL,UPPER,(BLACK)DASH-PANEL,UPPER,(BLACK)
-
147519806 CLIP, DASH, TRIM, METALCLIP, DASH, TRIM, METAL
-
157661855 RIVETRIVET
-
167710820 NUT-7/16,PUSHNUTNUT-7/16,PUSHNUT
-
175436836 HOLDER, CUP,HOLDER, CUP,
-
185414249 GROMMET, SHIFT LEVERGROMMET, SHIFT LEVER
-
195415087 GROMMET, STEERINGGROMMET, STEERING
-
207670154 RETAINER, BOLTRETAINER, BOLT
