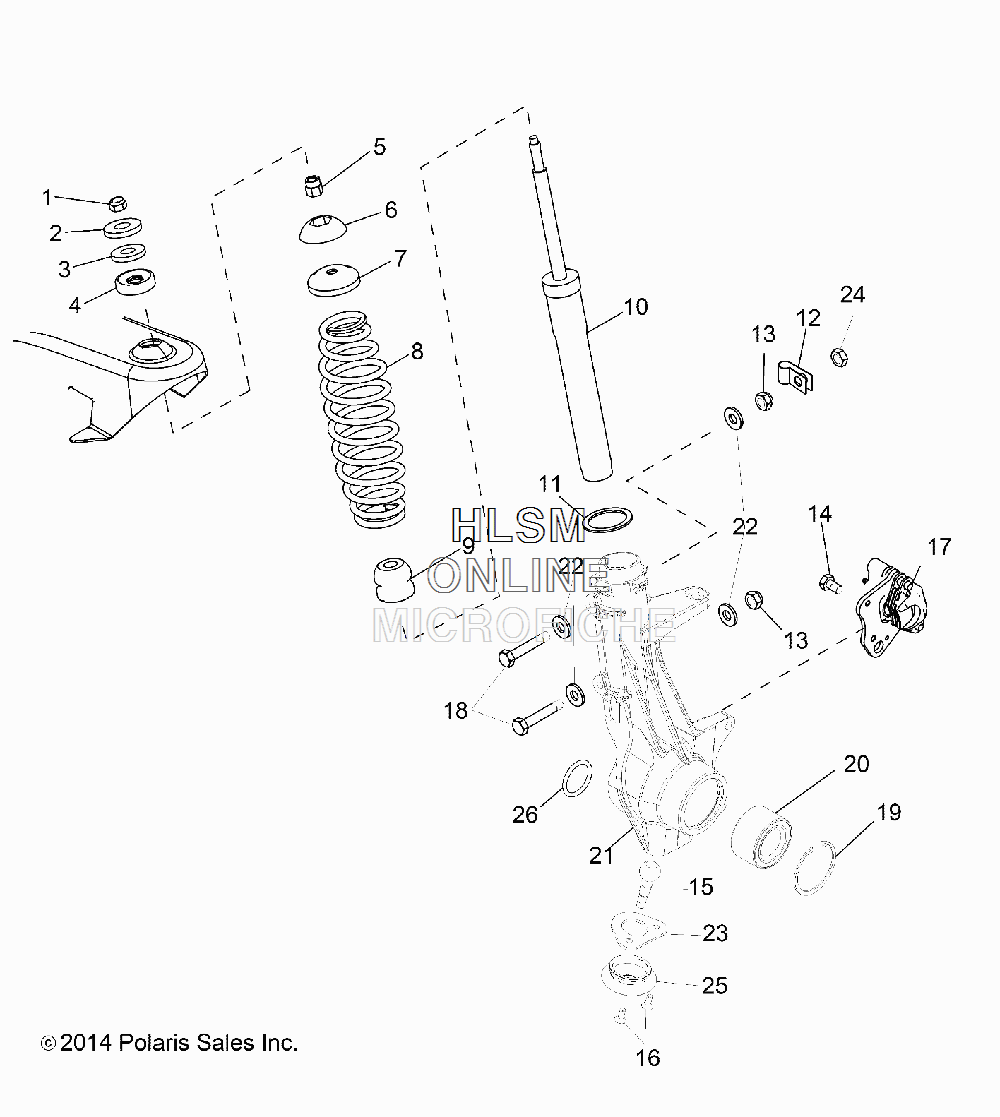

FRONT STRUT для Polaris RGR 570 MD (R02) - [R17RMA57N1] - 2017 года выпуска`
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 BALL, PIVOT, TOPBALL, PIVOT, TOP
-
55132062 SPACERSPACER
-
65432871 BALL, PIVOT, BOTTOMBALL, PIVOT, BOTTOM
-
75243364 RETAINER, SPRINGRETAINER, SPRING
-
87044228-458 SPRING, FRONT, (MATTE BLACK)SPRING, FRONT, (MATTE BLACK)
-
95412665 BUMPERBUMPER
-
107044149 STRUT, FRONTSTRUT, FRONT
-
115211115 WASHERWASHER
-
127080367 CLAMP, CABLECLAMP, CABLE
-
137542324 NUT, NYLOKNUT, NYLOK
-
147518558 BOLT [ASSEMBLES BRAKE CALIPER]BOLT [ASSEMBLES BRAKE CALIPER]
-
157061193 JOINT, BALL, GREASELESS, STRTJOINT, BALL, GREASELESS, STRT
-
167512284 SCREWSCREW
-
187512312 BOLTBOLT
-
197710507 RING, RETAININGRING, RETAINING
-
203514634 BEARING, WHEELBEARING, WHEEL
-
211824246 ASM., HUBSTRUT, LEFT [INCL. 15,16,19,20,23]ASM., HUBSTRUT, LEFT [INCL. 15,16,19,20,23]
-
211824247 ASM., HUBSTRUT, RIGHT [INGL. 15,16,19,20,23]ASM., HUBSTRUT, RIGHT [INGL. 15,16,19,20,23]
-
227558402 WASHER, FLATWASHER, FLAT
-
235258210 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
247542344 NUT, NYLOKNUT, NYLOK
-
255414893 BOOT, BALLJOINT, GREASELESS, STRTBOOT, BALLJOINT, GREASELESS, STRT
-
265414535 O-RINGO-RING
