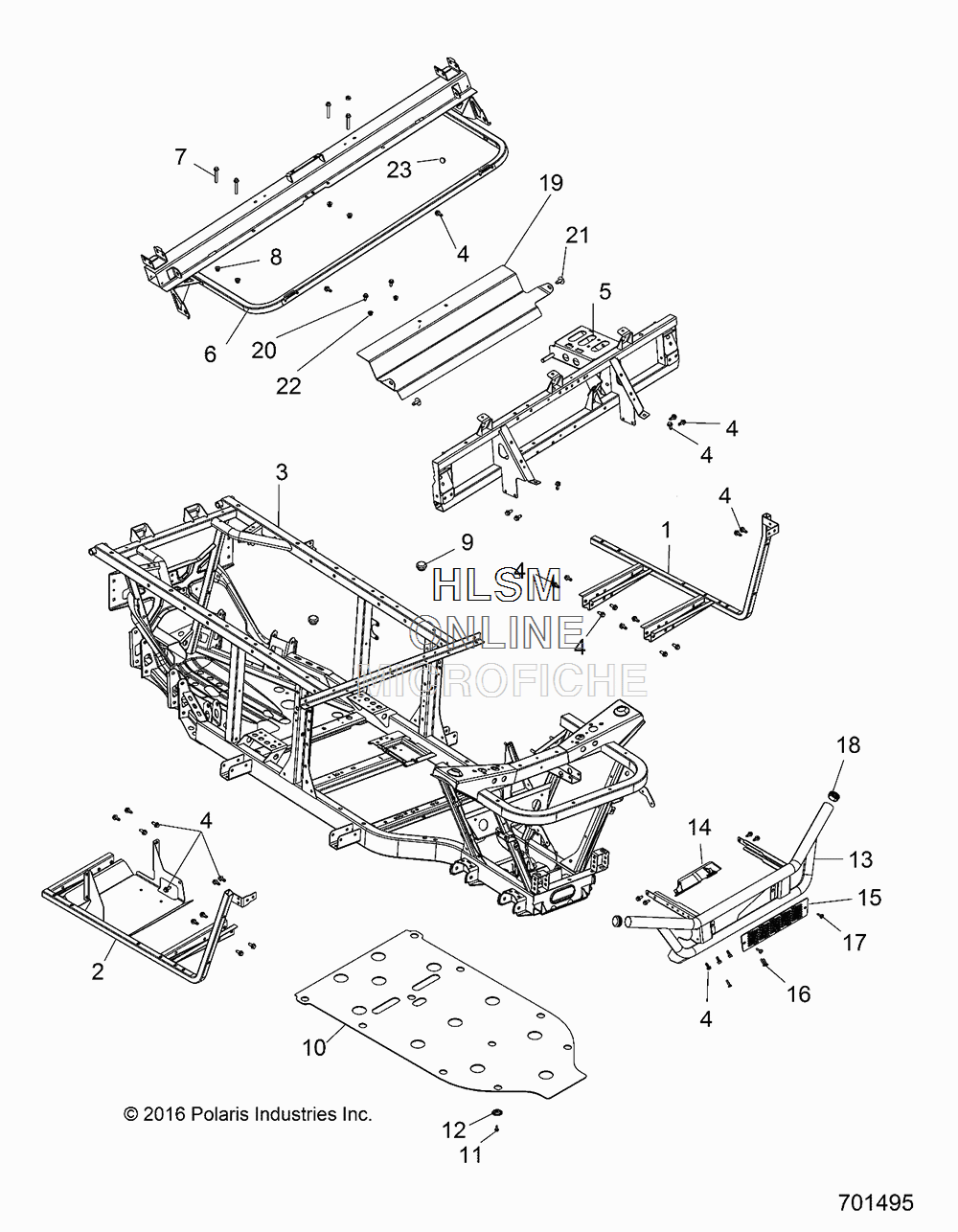

FRAME AND FRONT BUMPER для Polaris RGR 570 MD (R02) - [R17RMA57N1] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1020159-329 SUPPORT, FLOOR, LEFT, (BLACK)
    SUPPORT, FLOOR, LEFT, (BLACK)
  • 2
    1020160-329 SUPPORT, FLOOR, RIGHT, (BLACK)
    SUPPORT, FLOOR, RIGHT, (BLACK)
  • 3
    1021890-458 FRAME, MAIN, EU, MATTE (BLACK)
    FRAME, MAIN, EU, MATTE (BLACK)
  • 4
    7518555 BOLT
    BOLT
  • 5
    1020151-329 SUPPORT, CAB, FRONT, (BLACK)
    SUPPORT, CAB, FRONT, (BLACK)
  • 6
    1023026-458 WELD-SEAT BASE,CAB SUP,MD,(BLACK)
    WELD-SEAT BASE,CAB SUP,MD,(BLACK)
  • 7
    7517281 SCREW
    SCREW
  • 8
    7547332 NUT
    NUT
  • 9
    5411435 BUMPER, RUBBER
    BUMPER, RUBBER
  • 10
    5450136 PLATE, SKID
    PLATE, SKID
  • 11
    7517386 SCREW
    SCREW
  • 12
    7556065 WASHER, SKID PLATE
    WASHER, SKID PLATE
  • 13
    1020136-458 BUMPER, (MATTE BLACK)
    BUMPER, (MATTE BLACK)
  • 14
    5438181-070 BRACKET, BUMPER, GUARD, (BLACK)
    BRACKET, BUMPER, GUARD, (BLACK)
  • 15
    5438240-070 SCREEN, BUMPER, UPPER, (BLACK)
    SCREEN, BUMPER, UPPER, (BLACK)
  • 16
    7518158 SCREW
    SCREW
  • 17
    7519650 SCREW
    SCREW
  • 18
    5434191 CAP-BUMPER
    CAP-BUMPER
  • 19
    5510898 PANEL-HEAT-SHIELD
    PANEL-HEAT-SHIELD
  • 20
    7518591 SCREW
    SCREW
  • 21
    7519092 SCREW
    SCREW
  • 22
    7547453 NUT-HXFL-M6X1.0 8 ZB3 NYL
    NUT-HXFL-M6X1.0 8 ZB3 NYL
  • 23
    5453007 PLUG-GROMMET
    PLUG-GROMMET
