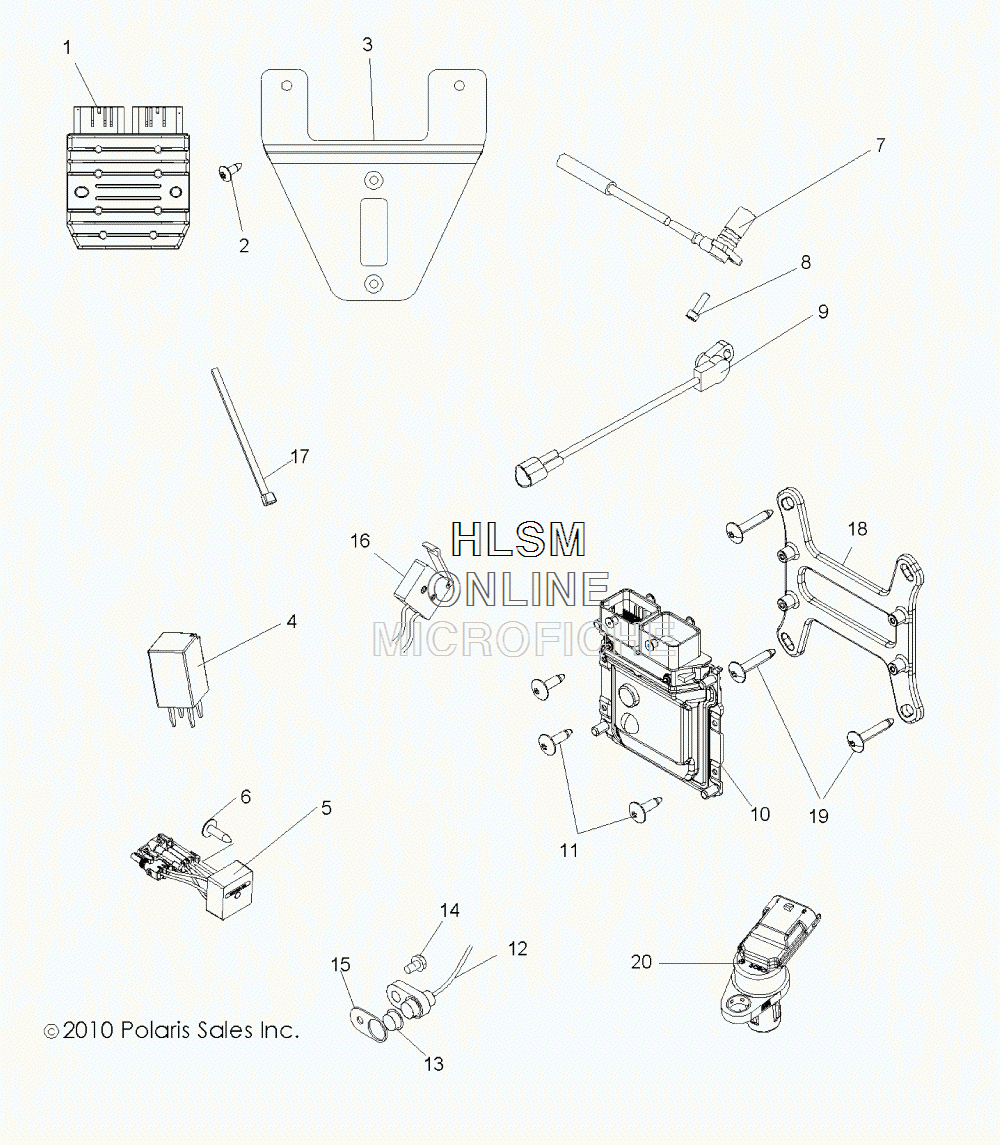

REGULATOR- RELAYS- SENSORS AND ECU для Polaris RANGER 6X6 SAGE GREEN [R15RAA76AA] - 2015 года выпуска
-
№АртикулНазвание
-
14012941 REGULATORREGULATOR
-
12878505 KIT, HARNESS, REGULATOR, AC INKIT, HARNESS, REGULATOR, AC IN
-
12878506 KIT, HARNESS, REGULATOR, DC OUTKIT, HARNESS, REGULATOR, DC OUT
-
27517685 SCREWSCREW
-
35254622-329 BRACKET, MOUNT, REGULATOR, BLACKBRACKET, MOUNT, REGULATOR, BLACK
-
44011283 RELAY, SEALEDRELAY, SEALED
-
54012829 RELAY, SOLID STATE (DIFFERENTIAL CONTROL)RELAY, SOLID STATE (DIFFERENTIAL CONTROL)
-
67518375 SCREWSCREW
-
72410720 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
87517384 SCREWSCREW
-
93131705 ASM., SENSORASM., SENSOR
-
104012838 ECUECU
-
117512026 SCREWSCREW
-
124011640 SENSOR, HALL EFFECTSENSOR, HALL EFFECT
-
135132382 CAP, HALL EFFECTCAP, HALL EFFECT
-
147517653 SCREWSCREW
-
155253222 SPACER, SPEED SENSORSPACER, SPEED SENSOR
-
161911443 SWITCH, PARK BRAKE, SERVICESWITCH, PARK BRAKE, SERVICE
-
177080138 CABLE TIECABLE TIE
-
185438369-070 MOUNT, MID, ECU, BLACKMOUNT, MID, ECU, BLACK
-
197519290 SCREWSCREW
-
202410835 SENSOR, PHASE, CAM, DISENSOR, PHASE, CAM, DI
